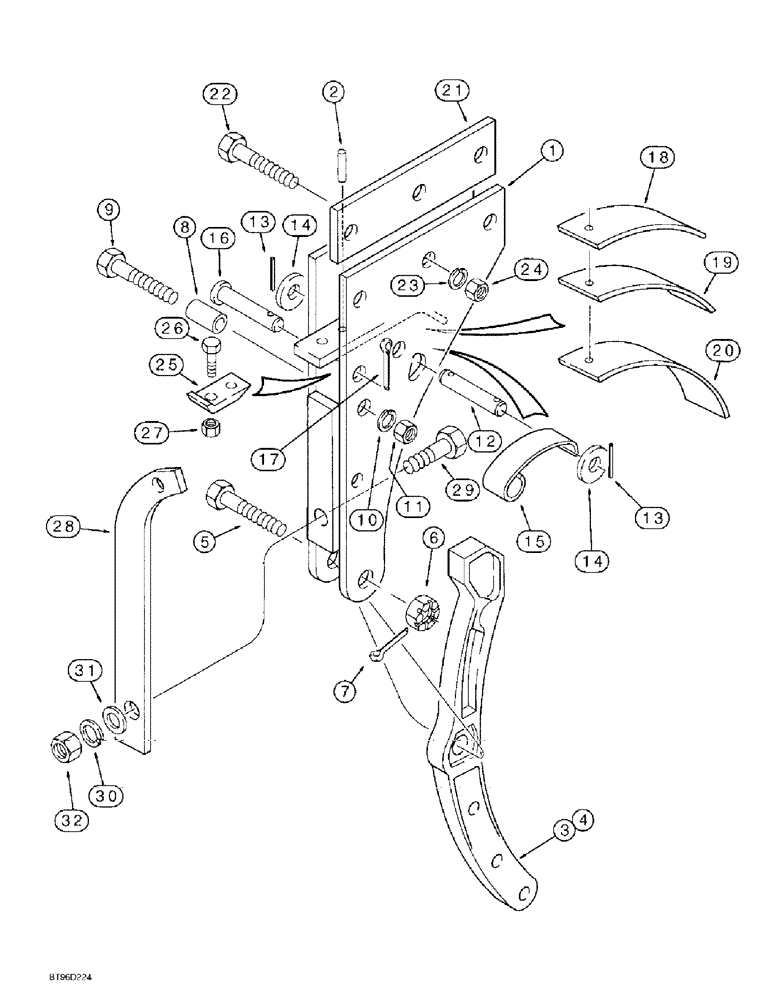

Запчасти Case IH 145 (09-05) - SPRING TRIP BEAM (09) - CHASSIS/ATTACHMENTS

1

541417R2

LARGE PLATE

BRACKET - mounting, beam

2шт.

2

438-33224

PIN,1/2" x 1 1/2", Coiled

2шт.

3

465800R2

BEAM

- trip, right-hand

1шт.

For replacement plow bottoms, shares, shins, and landsides, refer to Moldboard Plow Bottoms and Ripper Parts catalog Bur 7-2230.

1шт.

4

541422R1

SUPPORT

BEAM - trip, left-hand (not shown)

1шт.

5

465799R2

BOLT

BOLT - hex, special

2шт.

6

425-1316

NUT,1"-14, G5

NUT - hex, slotted, 1 inch NS

2шт.

7

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

8

522432R2

SPACER

- beam, stop

2шт.

9

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

425-1010

NUT,5/8"-11, G5

2шт.

12

465801R1

ROLLER

- trip spring

2шт.

13

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

4шт.

14

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 1/8 inch

4шт.

15

465868R1

SPRING

- trip

2шт.

16

439-11247

HEADED PIN,3/4" x 2 15/16"

PIN - headed, 3/4 x 2-15/16 inch, GR2

2шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

18

524452R1

VALVE SPRING

SPRING - tension, upper

2шт.

19

524453R1

VALVE SPRING

SPRING - tension, middle

2шт.

20

524454R1

VALVE SPRING

SPRING - tension, lower

2шт.

21

1337611C1

BAR

SPACER - spring trip beam

4шт.

22

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

- hex, 7/8 NC x 3-1/2 inch

6шт.

23

492-11088

LOCK WASHER,7/8"

7/8"

6шт.

24

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

6шт.

25

468847R1

CLIP,ELECTRICAL

CLIP - tension spring, adjusting

2шт.

26

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

27

131-208

SPECIAL NUT,1/2"-13

NUT - heavy hex, self-locking, 1/2 inch NC

2шт.

28

541384R2

SUPPORT

BRACE - trip unit, 5/8 inch thick, if used

1шт.

28

122916C1

SUPPORT

BRACE - trip unit, 3/4 inch thick, if used

1шт.

29

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

4шт.

30

492-11088

LOCK WASHER,7/8"

7/8"

4шт.

31

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

4шт.

32

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.
