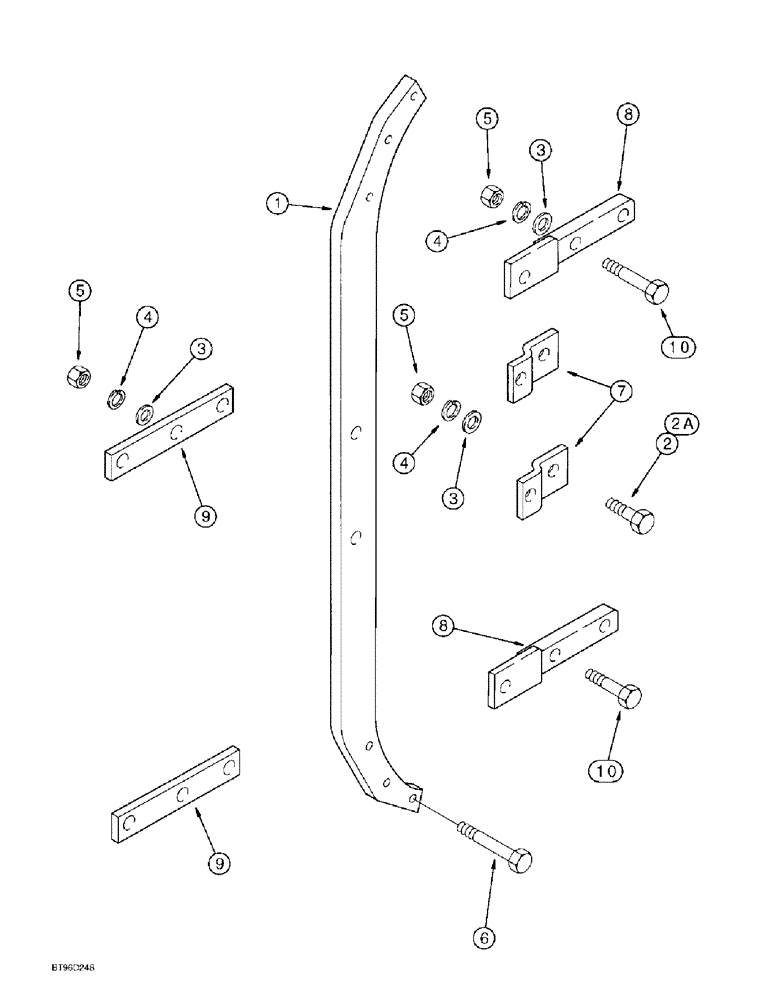

Запчасти Case IH 145 (09-04) - RIGID BEAM (09) - CHASSIS/ATTACHMENTS

1

490848R1

SUPPORT

BEAM - rigid

1шт.

For replacement plow bottoms, shares, shins, and landsides, refer to Moldboard Plow Bottoms and Ripper Parts catalog Bur 7-2230.

1шт.

2

413-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 5

- hex, 7/8 NC x 2-1/4 inch

1шт.

2a

426-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8

- hex, 7/8 NC x 3-1/2 inch, GR8

1шт.

3

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

4

492-11088

LOCK WASHER,7/8"

7/8"

1шт.

5

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, GR8

1шт.

6

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex, 5/8 NC x 3 inch, GR8

2шт.

1256884C1

NUT

Hex, 5/8 NC Flange Lock GR8

2шт.

7

490849R1

SUPPORT

STRAP - hammer

2шт.

8

224101C1

BAR

- beam mounting, with block

2шт.

9

224104C1

BAR

- beam mounting, without block

2шт.

10

326-1464

BOLT,Hex, 7/8" - 9 x 4", Gr 8

2шт.
