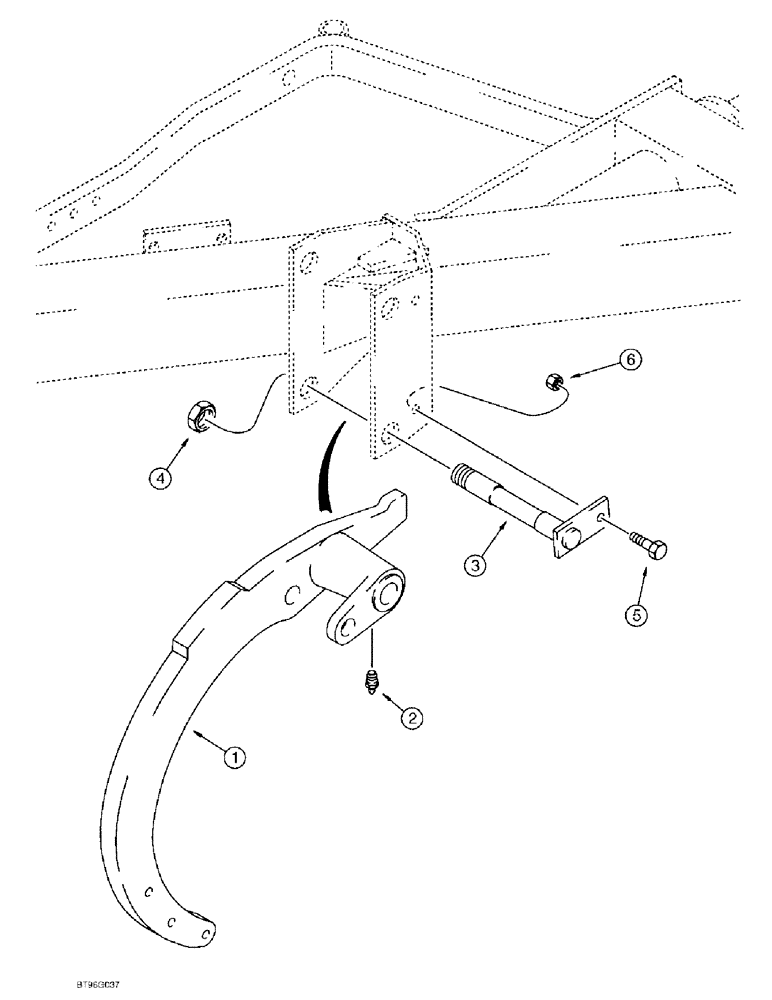

Запчасти Case IH 145 (09-03) - AUTOMATIC TRIP BEAM (09) - CHASSIS/ATTACHMENTS

1

122581C3

BEAM

- plow, automatic trip, right-hand

1шт.

1a

122582C3

BEAM

- plow, automatic trip, left-hand (not shown)

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

3

131553C2

PIVOT PIN

SHAFT - pivot, plow beam

2шт.

4

131-42

NUT,1 3/8"-12

NUT - thin hex, self-locking, 1-3/8-12 inch

2шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.
