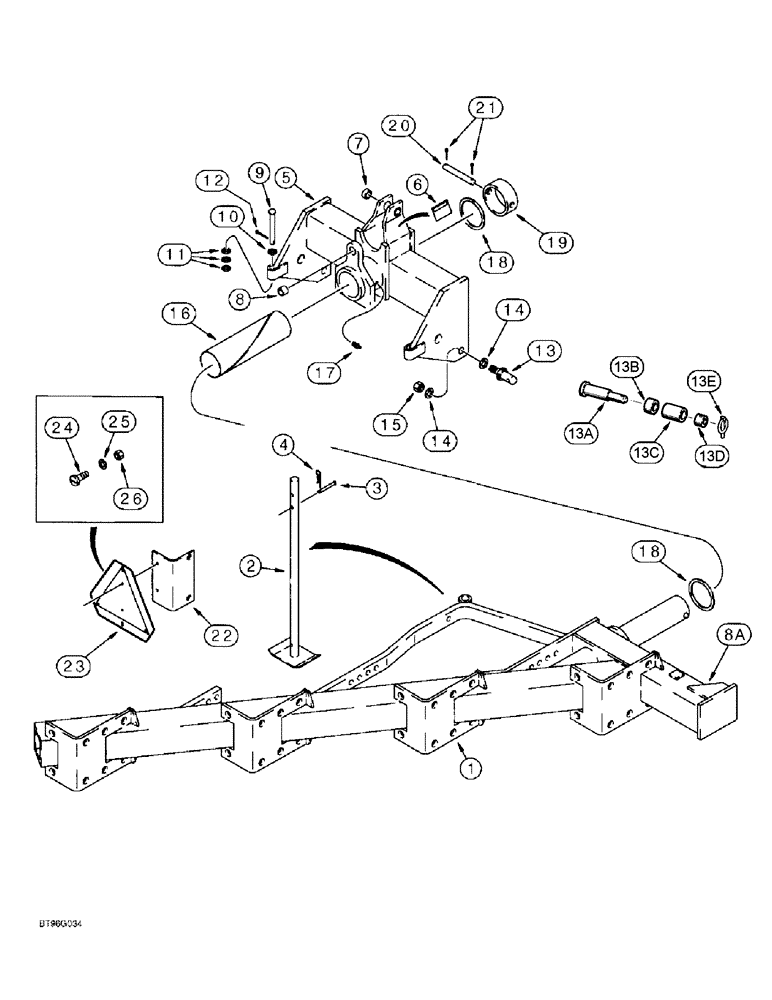

Запчасти Case IH 145 (09-02) - MAIN FRAME, RIGID AND SPRING TRIP BEAM PLOWS (09) - CHASSIS/ATTACHMENTS

1

122996C2

FRAME

- main, rear, 18 inch, 4 furrow, rigid and spring trip beam

1шт.

Weldment is not available for the part of the Frame P/N 122996C2 where the Frame Pivot Tube Washer P/N 122622C1 is used.

1шт.

1

131900C2

FRAME

- main, rear, 16 inch, 4 furrow, rigid beam (not shown)

1шт.

1

131692C2

FRAME

- main, rear, 18 inch, 3 furrow, rigid and spring trip beam (not shown)

1шт.

1

131926C92

FRAME

- main, rear, 18 inch, 5 furrow, rigid beam (not shown)

1шт.

2

122804C1

STAND

- support

1шт.

3

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - headed, 1/2 x 2-3/4 inch

1шт.

4

1980543C1

HAIR PIN COTTER

PIN - cotter, hair, 5/32 inch diameter

1шт.

5

302590A1

CARRIER

ASSEMBLY - main, front, 3 and 4 furrow (replaces 97615C91)

1шт.

5

302588A1

CARRIER

ASSEMBLY - main, front, 5 furrow (not shown) (replaces 97617C91)

1шт.

6

543301R1

CAUTION DECAL

DECAL - Caution, lift links must be at maximum length

1шт.

7

307401A1

BUSHING

- Upper Link Mounting

2шт.

8

112885C1

BUSHING,31.75mm ID x 38.1mm OD x 25.4mm L

- Cylinder pivot to Front Carrier

1шт.

8a

112886C1

BUSHING

Cylinder to Rear Frame

1шт.

9

439-11488

HEADED PIN,22.23mm OD x 139.7mm L

PIN - headed, 7/8 x 5-1/2 inch, GR2

2шт.

10

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

2шт.

11

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

- flat, 29/32 x 1-1/2 x 1/4 inch

16шт.

12

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

13

483659R1

STUD

PIN - hitch

2шт.

Use with Carrier P/N 97615C91

1шт.

13a

599799R1

PIN

Hitch

2шт.

Use with Carrier P/N 302590A1

1шт.

13b

599800R1

BUSHING

Hitch Pin

2шт.

Use with Carrier P/N 302590A1

1шт.

13c

599801R1

SPACER

Hitch Pin

2шт.

Use with Carrier P/N 302590A1

1шт.

13d

599802R1

SPACER

Hitch Pin

2шт.

Use with Carrier P/N 302590A1

1шт.

13e

372907R91

LINCH PIN

SPLIT PIN/SAFETY PIN, Hitch Pin

2шт.

Use with Carrier P/N 302590A1

1шт.

14

496-11119

WASHER,1 3/16" x 2 1/4" x .134" HDN

- flat, 1-3/16 x 2-1/4 x 9/64 inch, hardened

4шт.

Use with Carrier P/N 97615C91

1шт.

15

329-1118

NUT,1 1/8"-12, G8

- hex, 1-1/8 inch NF, GR8

2шт.

Use with Carrier P/N 97615C91

1шт.

16

122802C1

SHEET

BEARING - frame pivot

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

18

122622C1

WASHER,121.7mm ID x 152mm OD x 1.59mm Thk

- frame pivot tube

1шт.

19

122623C1

SPACER

RETAINER - frame pivot tube

1шт.

20

131866C1

PIN

- retainer

1шт.

21

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

22

543924R1

SUPPORT

BRACKET - Mounting, SMV emblem and reflector

1шт.

23

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle, includes decal

1шт.

24

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

25

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

26

225-14110

NUT,#10-24

2шт.
