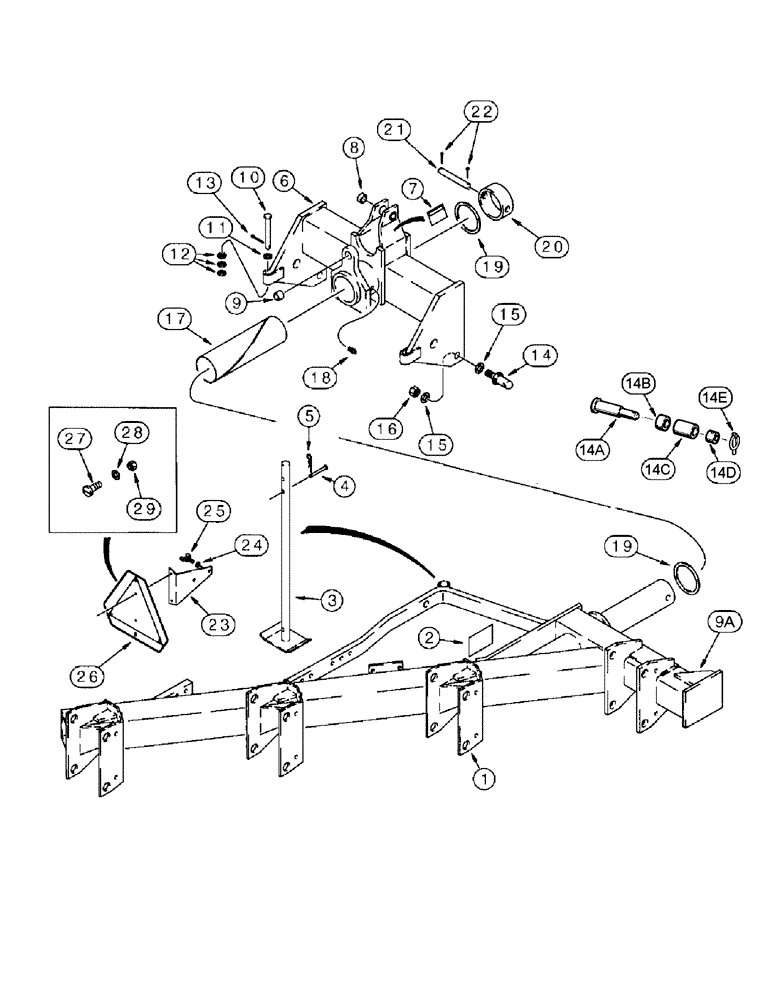

Запчасти Case IH 145 (09-01) - MAIN FRAME, 3 AND 4 FURROW AUTOMATIC TRIP BEAM PLOWS (09) - CHASSIS/ATTACHMENTS

1

97614C91

FRAME

ASSEMBLY - main, rear, 18 inch, 4 furrow

1шт.

1

97616C91

FRAME

ASSEMBLY - main, rear, 18 inch, 3 furrow (not shown)

1шт.

2

122878C1

DECAL

- Caution, stand clear of automatic plow trip at all times

1шт.

3

122804C1

STAND

- support

1шт.

4

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - headed, 1/2 x 2-3/4 inch

1шт.

5

1980543C1

HAIR PIN COTTER

PIN - cotter, hair, 5/32 inch diameter

1шт.

6

302590A1

CARRIER

ASSEMBLY - main, front

1шт.

7

543301R1

CAUTION DECAL

DECAL - Caution, lift links must be at maximum length

1шт.

8

307401A1

BUSHING

- 1-17/64 x 1-5/8 x 23/32 inch, upper link mounting

2шт.

9

112885C1

BUSHING,31.75mm ID x 38.1mm OD x 25.4mm L

- Cylinder Pivot to Front Frame

1шт.

9a

112886C1

BUSHING

Tension, Cylinder to Rear Frame

1шт.

10

439-11488

HEADED PIN,22.23mm OD x 139.7mm L

PIN - headed, 7/8 x 5-1/2 inch, GR2

2шт.

11

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

2шт.

12

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

- flat, 29/32 x 1-1/2 x 1/4 inch

16шт.

13

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

14

483659R2

STUD

PIN - Hitch

2шт.

Use with Carrier P/N 97615C91

1шт.

14a

599799R1

PIN

Hitch

2шт.

Use with Carrier P/N 302590A1

1шт.

14b

599800R1

BUSHING

2шт.

Use with Carrier P/N 302590A1

1шт.

14c

599801R1

SPACER

2шт.

Use with Carrier P/N 302590A1

1шт.

14d

599802R1

SPACER

2шт.

Use with Carrier P/N 302590A1

1шт.

14e

372907R91

LINCH PIN

SPLIT PIN/SAFEY PIN

2шт.

Use with Carrier P/N 302590A1

1шт.

15

496-11119

WASHER,1 3/16" x 2 1/4" x .134" HDN

- flat, 1-3/16 x 2-1/4 x 9/64 inch, hardened

4шт.

Use with Carrier P/N 97615C91

1шт.

16

329-1118

NUT,1 1/8"-12, G8

- hex, 1-1/8 inch NF, GR8

2шт.

Use with Carrier P/N 97615C91

1шт.

17

122802C1

SHEET

BEARING - frame pivot

1шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

19

122622C1

WASHER,121.7mm ID x 152mm OD x 1.59mm Thk

- frame pivot tube

1шт.

20

122623C1

SPACER

RETAINER - frame pivot tube

1шт.

21

131866C1

PIN

- retainer

1шт.

22

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

23

131696C1

SUPPORT

BRACKET - Mounting, SMV emblem

1шт.

24

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

2шт.

25

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW - wing

2шт.

26

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle, includes decal

1шт.

27

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- Machine, Pan Phillips, No. 10 NC x 1/2

2шт.

28

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64

2шт.

29

225-14110

NUT,#10-24

2шт.
