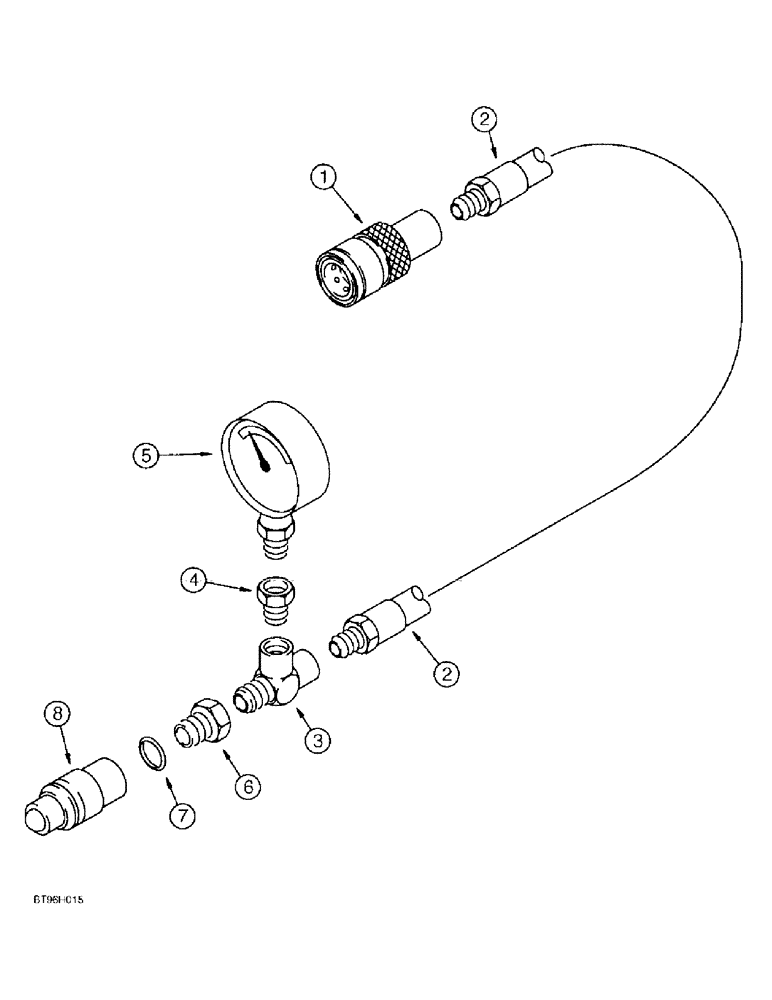

Запчасти Case IH 145 (08-08) - HYDRAULIC CHARGING HOSE ATTACHMENT (08) - HYDRAULICS

1

1994568C1

COUPLING, QUICK, FEM

COUPLER - self sealing, female

1шт.

2

643226R91

HOSE ASSY.

HOSE - 3657 mm (144 inch) long, pressure gauge

1шт.

3

122810C1

TEE

- special, Serial Range: coupler-gauge

1шт.

4

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- pipe, 1/2 male x 1/4 inch female

1шт.

5

122809C1

GAUGE

- oil pressure

1шт.

6

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch female PT

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

8

1341843C1

QUICK MALE COUPLING

COUPLER - self-sealing male, 7/8-14 inch thread

1шт.

8

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Not shown

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown

1шт.

11

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

- straight, 7/8-14 male O-ring boss x 3/4 inch female, not shown

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Not shown

1шт.

13

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - straight, 3/4-16 male O-ring boss x 7/8-14 inch female, not shown

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown

1шт.

15

1282459C1

PACKAGE

KIT - coupler tag, not shown

1шт.
