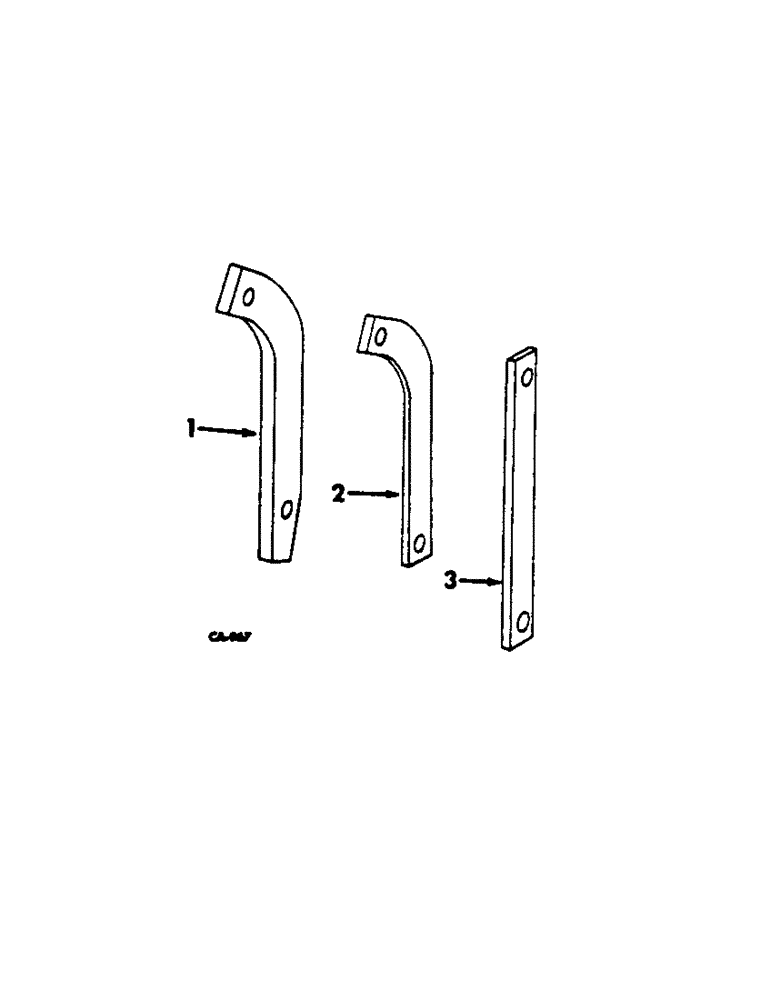

Запчасти Case IH 140 (AN-05[A]) - TRIP BEAM BRACES UNITS B, D, F AND H

1

541389R1

BRACE AND STOP, trip, machines built, Serial Range: 1970-1975

2шт.

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

SCREW, 7/8-9 x 2-1/2 znd hex-hd cap ,Course threads

4шт.

NLS

NO LONGER SERVICED

7/8"

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

2

541384R1

BRACE

trip unit curved, 6 for units B and D, 8 for units F and H

1шт.

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

SCREW, 7/8-9 x 2-1/2 znd hex-hd cap, 2 per brace , Course threads

1шт.

131047

WASHER,7/8"

2 per brace 7/8"

1шт.

425-1014

NUT,7/8"-9, G5

NUT, , 2 per brace 7/8"-9, G5

1шт.

3

542544R1

BRACE, trip unit, on beam extension plate, 2 for units B and D

1шт.

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

SCREW, 7/8-9 x 2-1/2 znd hex-hd cap , Couurse threads

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.
