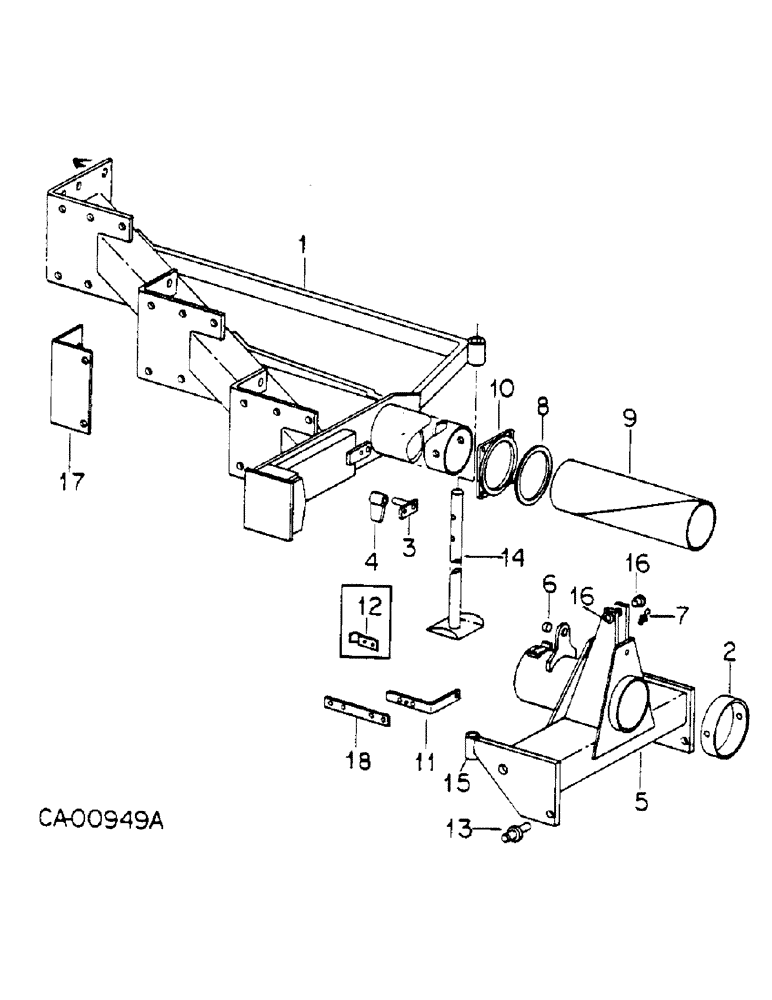

Запчасти Case IH 140 (AN-03) - FRAME AND CONNECTIONS

1

57094C3

FRAME ASSY, main, replaces 541420R1, unit A

1шт.

1

57095C3

FRAME ASSY, main, replaces 541421R1, unit C

1шт.

1

57096C3

FRAME ASSY, main, replaces 541423R1, unit E

1шт.

1

57097C3

FRAME ASSY, main, replaces 541424R1, unit G

1шт.

1

131964C91

PACKAGE, main frame assy, consists of frame assy (NSS)

1шт.

131954C1

SPACER

instruction sheet, unit H (NSS)

16шт.

1

131965C91

PACKAGE, main frame assy, consists of frame assy (NSS)

1шт.

131954C1

SPACER

instruction sheet, unit F (NSS)

16шт.

1

131966C91

PACKAGE, main frame assy, consists of frame assy (NSS)

1шт.

131954C1

SPACER

instruction sheet, unit D (NSS)

12шт.

1

131967C91

PACKAGE, main frame assy, consists of frame assy (NSS)

1шт.

131954C1

SPACER

instruction sheet, unit B (NSS)

12шт.

2

541362R1

COLLAR, retaining

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

3

541378R1

PIN

STUD ASSY, latch

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16-18 x 1-1/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

4

541377R1

LATCH

ASSY

1шт.

5

541413R1

CARRIER ASSY, front

1шт.

24540R1

HEADED PIN,7/8" x 5 1/2"

PIN, 7/8 x 5-1/2 C-Z std-hd

2шт.

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

29/32 x 1-1/2 x 1/4

12шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga znd

8шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

2шт.

6

541363R1

BUSHING

cylinder anchor

1шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, in front carrier tube

2шт.

8

541353R1

WASHER

6.28 x 7.50 x 16 ga

1шт.

9

541383R1

SUPPORT TUBE

TUBE, bearing

1шт.

10

541416R1

COVER

dust

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16-18 x 1-1/4 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

11

60624C1

SUPPORT, hose, replaces 541386R1

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

12

541354R1

CLAMP, hose, built, Serial Range: 1970-1974

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8-16 x 3/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

472790R1

STUD

3-pt category II hitch

2шт.

13

483659R1

STUD

3-pt category III hitch

2шт.

131049

HYD CONNECTOR

1-1/8 znd reg lock

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 znd hex.

2шт.

14

541399R1

STAND

ASSY

1шт.

543124R1

HEADED PIN

PIN, 1/2 x 2-3/4 znd std-hd

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

15

541349R1

SPACER, leveling

2шт.

16

541361R1

BUSHING

mast

2шт.

17

543924R1

SUPPORT

BRACKET, slow moving vehicle emblem mounting

1шт.

18

542894R1

STRAP

hose, built 1974 and since

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074 znd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

NLS

NO LONGER SERVICED

7/8"

6шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

6шт.

12

468847R1

CLIP,ELECTRICAL

CLIP, helper spring adjusting

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

2шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znp nylon insert

2шт.
