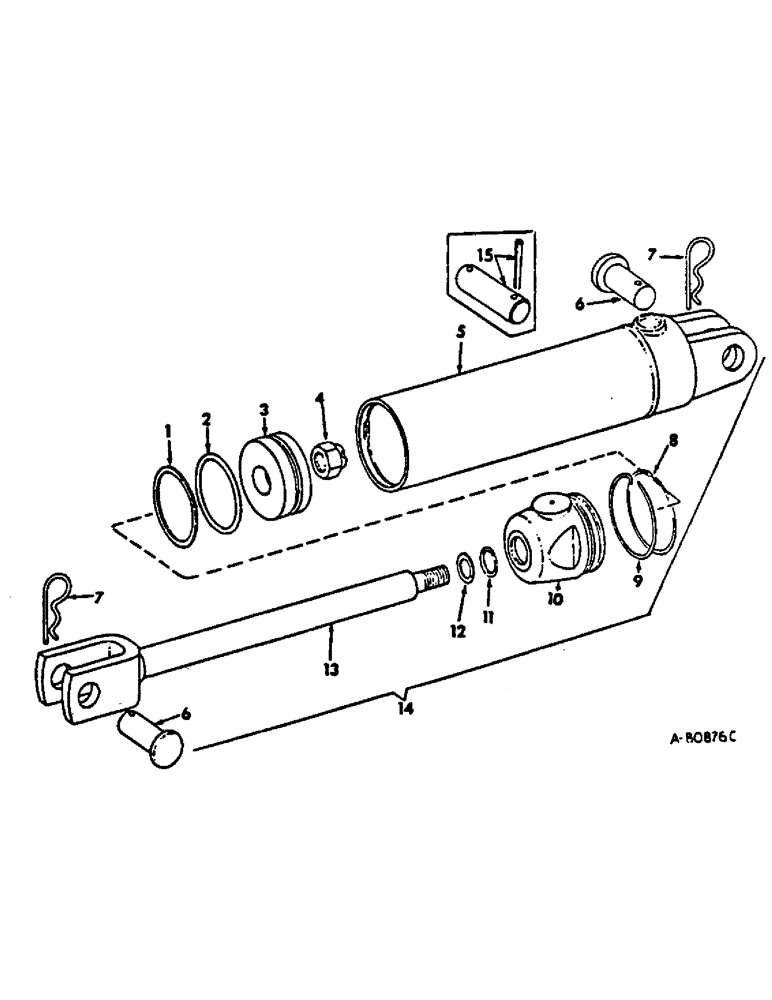

Запчасти Case IH 140 (AN-10) - HYDRAULIC CYLINDER, 3 X 8 IN. SINGLE ACTING

1

381872R1

WASHER

piston head backup

1шт.

2

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2-5/8 x 3 x 3/16, piston head

1шт.

3

381869R1

PISTON

HEAD, piston

1шт.

4

385020R1

NUT

3/4-16 hex. lock

1шт.

5

381861R92

HYD TUBE,14.74" Length

TUBE ASSY, cylinder

1шт.

6

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 in. x 2-3/4 headed

2шт.

7

520175R1

CLIP

PIN, quick attachable cotter

2шт.

8

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2-3/4 x 3 x 1/8, for head assy

1шт.

9

381873R1

RETAINER

RING, retaining

1шт.

10

381804R21

HEAD ASSY.

HEAD ASSY, rod end

1шт.

11

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

12

354049R1

RETAINER

piston rod dust seal

1шт.

13

381842R91

ROD

ASSY, piston

1шт.

14

381853R94

CYLINDER

ASSY, 3 x 8 in. single acting hydraulic

1шт.

15

381852R11

PIN

W/SPRING PIN, 591260R1, cylinder pivot, used only w/cylinder tube, 381861R91

1шт.

386688R92

KIT

PACKAGE, hyd cylinder o-ring service, consists of (1) o-ring 381871R1, (1) o-ring 384250R1, (1) retainer 354049R1, (1) seal 354048R1, (1) washer 381872R1

1шт.
