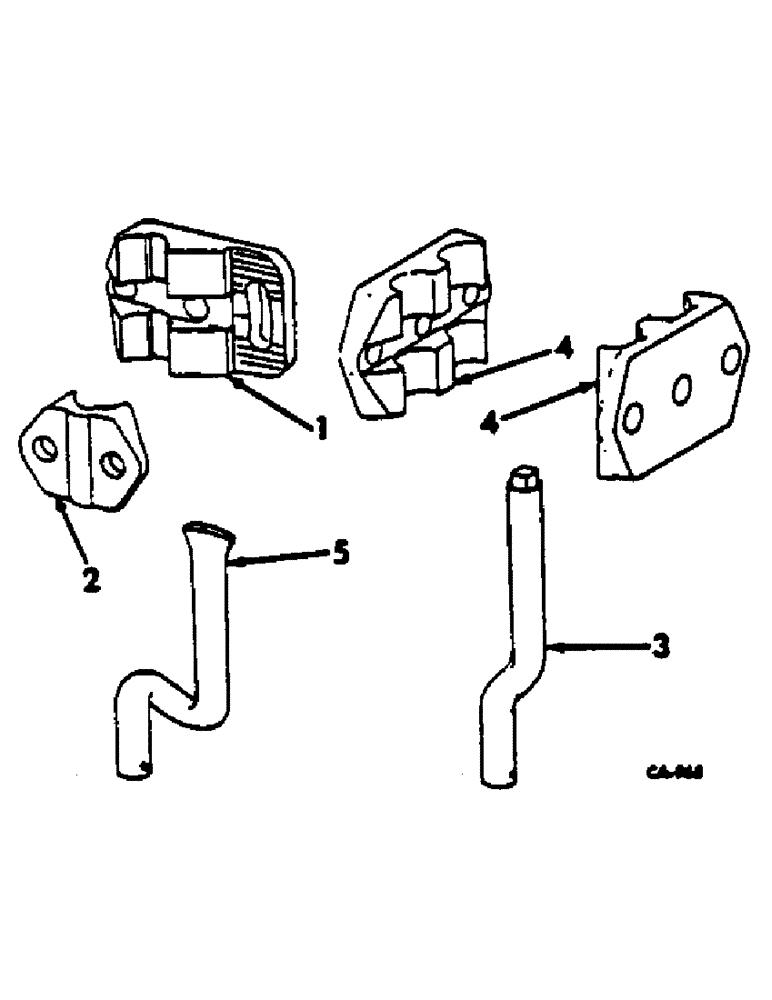

Запчасти Case IH 140 (AN-09) - COLTER SHANKS AND CLAMPS

1

462684R1

CLAMP

first colter

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

523011R1

WASHER

front colter clamp

2шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

2шт.

20511R1

WASHER, 5/8 znp med lock

2шт.

2

524492R1

CLAMP

CAP, colter clamp, 2 used w/front shanks

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

3

466944R1

ROD

SHANK, colter

4шт.

3

488792R1

SHANK

colter, fourth beam only

1шт.

4

462687R1

STAPLE

CAP, colter, 4 used for three furrow plows, 6 used for four furrow plows

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 znd hex-hd cap

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

6шт.

271758

BEARING ASSY,Hex, 5/8" - 18 x 4 1/2", Gr 5

SCREW, 5/8-18 x 4-1/2 znd hex-hd cap, 2 for fourth beam only

1шт.

425-1110

NUT,5/8"-18, G5

5/8-18 znd hex., 2 for fourth beam only

1шт.

5

522434R1

STEM

SHANK, colter

2шт.

5

488792R1

SHANK

colter, fourth beam only

1шт.

21641R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), , self-opening 5/16" x 2 1/4"

6шт.

381853R94

CYLINDER

ASSY, 3 x 8 in. single acting hydraulic, for components see list of parts under details of hydraulic cylinder, machines built, Serial Range: 1970-1974

1шт.

381854R94

CYLINDER

ASSY, 3 x 8 in. double acting, for components see list of parts under details of hydraulic cylinder, machines built 1974 and since

1шт.

541355R1

HOSE

ASSY, 1/2 x 75 in. long

2шт.

397699R1

UNION

ASSY, orifice

1шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male, for 56 series tractors

2шт.

544787R91

COUPLING, BREAK AWAY

COUPLING ASSY, self-sealing male, for 66 and 86 series tractors

2шт.

541379R1

PIN

ASSY, cylinder, rod end

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub, for pin assy, 541379R1

1шт.

541356R11

PIN

ASSY, cylinder, piston end

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg

1шт.

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

2шт.
