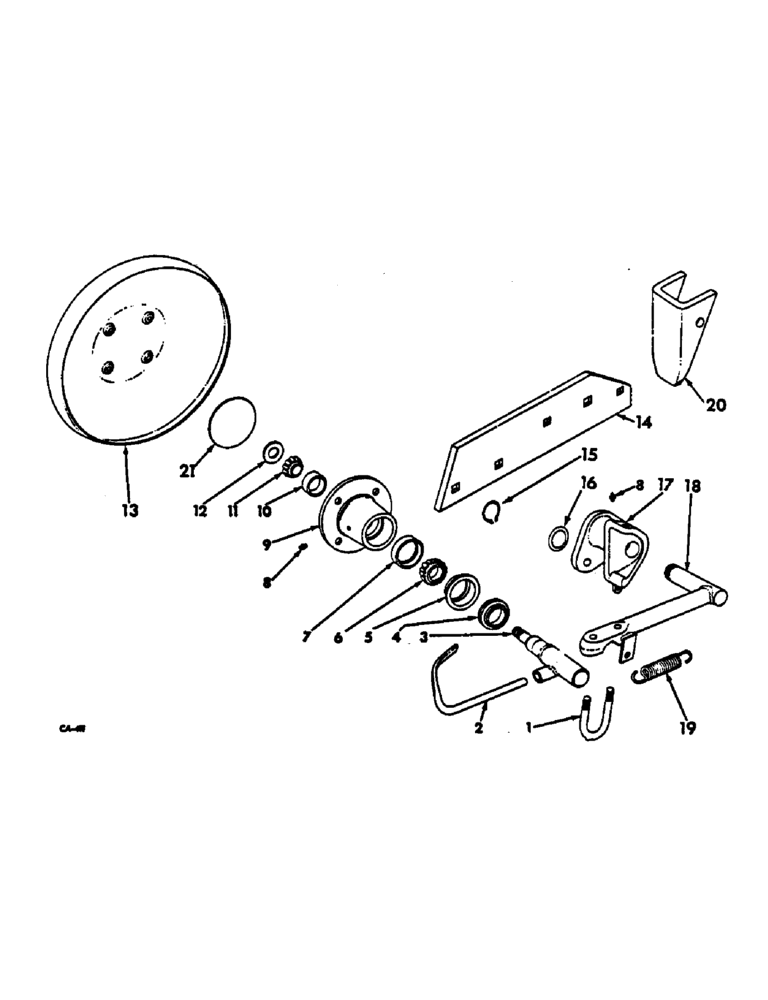

Запчасти Case IH 140 (AN-08) - REAR FURROW WHEEL, SPRING LOADED

1

478221R1

BOLT,Plow, 1/2" - 13 x 3.0"

U-BOLT, axle support

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

2

478222R1

KNIFE

BLADE, LH scraper

1шт.

2

478223R1

KNIFE

BLADE, RH scraper

1шт.

3

478216R91

SPINDLE

ASSY

2шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 sq-hd cup-pt set

2шт.

69442D

NUT

3/4-16 slt hex. jam

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

2шт.

5

472222R1

SLEEVE

oil seal

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone

2шт.

7

651817R1

BEARING CUP

BEARING, inner cup

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub, in wheel hub and pivot bracket

4шт.

9

478218R2

HUB

furrow wheel

2шт.

62177C1

PLOW BOLT

BOLT, 7/16-14 x 1-1/4 type 8 special convex-hd plow

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

9418646

NUT,7/16"-14, G8

7/16-14 hex.

8шт.

10

651814R1

BEARING CUP

BEARING, outer cup

2шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

12

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

13

478725R1

WHEEL

rear furrow

2шт.

14

478226R1

LANDSIDE

LH

1шт.

14

478227R1

LANDSIDE

RH

1шт.

62179C1

PLOW BOLT

BOLT, 7/16-14 x 2-1/8 type 8 special convex-hd plow

4шт.

CP15226

PLOW BOLT,5/8" - 11 x 3", Gr 5

BOLT, 5/8-11 x 3 no. 3 plow

2шт.

15631R1

BOLT,5/8"-11 x 2 1/4", G2

5/8-11 x 2-1/4 no. 3 plow 4

1шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 nylon insert

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

102639

NUT,5/8"-11, G5

6шт.

15

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

2шт.

16

566666R1

WASHER

WASHER, 1-13/32 x 2-1/8 x 3/16

2шт.

17

542329R1

PIVOT

rear axle LH

1шт.

17

542330R1

PIVOT

rear axle RH

1шт.

478215R1

SCREW, 5/8-11 x 2-1/4 hex-hd cap

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

18

541525R1

AXLE

ASSY, spring loaded furrow wheel LH

1шт.

18

541526R1

AXLE

ASSY, spring loaded furrow wheel RH

1шт.

19

478219R1

SPRING

rear furrow wheel

2шт.

20

542495R1

SUPPORT

STOP, beam

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

21

41-3044

PLUG,Exp, 2 3/4"

2-3/4 in. expansion

2шт.
