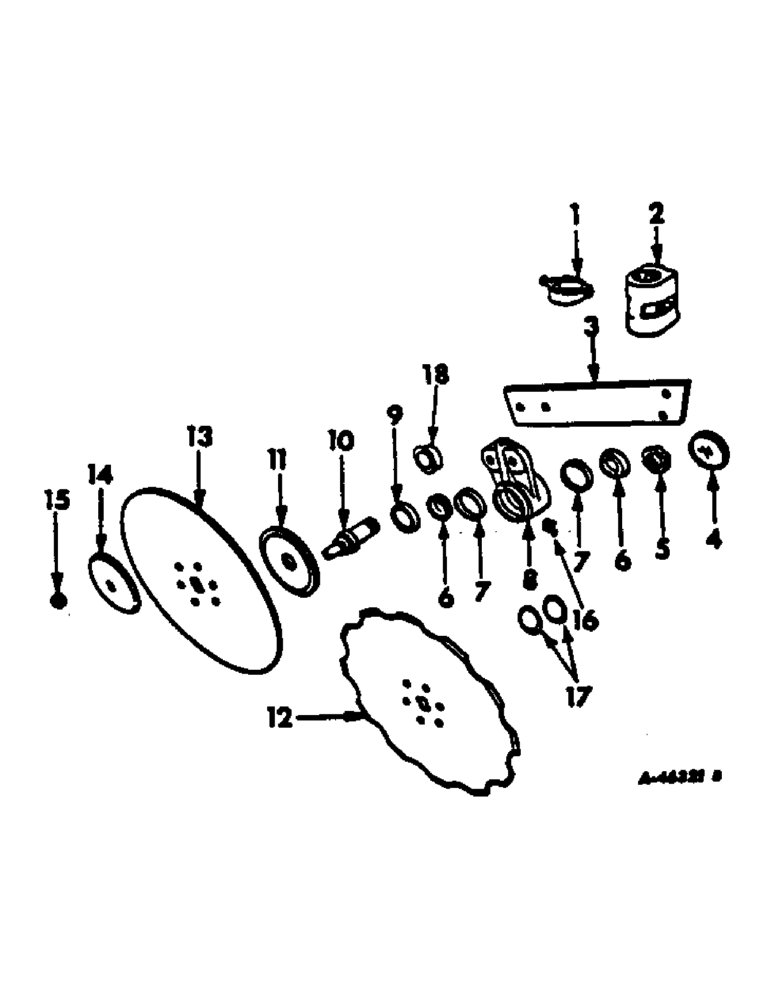

Запчасти Case IH 140 (AN-06) - SIDE ARM ROLLING COLTERS, 1 PER FURROW

1

523345R21

COLLAR CLAMP

COLLAR ASSY, stop

1шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

2

462273R3

SUPPORT ASSY.

BEARING, colter arm RH

1шт.

2

462272R3

SUPPORT ASSY.

BEARING, colter arm LH

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 hex. lock

1шт.

181672

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5

SCREW, 7/16-20 x 1-3/4 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

LEC271506

SHIM

7/16-20 C-Z hex.

1шт.

3

541392R1

ARM

colter

1шт.

4

518842R1

CAP

hub

1шт.

5

519250R1

SLOTTED NUT

1-1/4-12 slt hex.

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

7

651817R1

BEARING CUP

BEARING, housing cup

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING, RH bearing

1шт.

8

541481R1

SUPPORT

HOUSING, LH bearing

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

housing oil

1шт.

10

541480R1

SPINDLE

colter

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

11

523020R3

SUPPORT ASSY.

SUPPORT, inside blade, 17 in. blade

1шт.

11

59158C1

SUPPORT ASSY.

SUPPORT, inside blade, 20 in. blade

1шт.

12

523026R2

DISC

BLADE, 17 in. notched edge

1шт.

13

469191R3

BLADE

17 in. rippled edge

1шт.

13

474252R2

COULTER

RIPPLED 20"

1шт.

14

523021R2

SUPPORT ASSY.

SUPPORT, outside blade, 17 in. blade

1шт.

14

59159C1

SUPPORT ASSY.

SUPPORT, outside blade, 20 in. blade

1шт.

15

26963R1

NUT,7/8"-14, G8

NUT, 7/8-14 znd slt hex. type 8

1шт.

16

17238R91

LUBE NIPPLE,65 Degree, 1/4" NPT x .73" lg

FITTING, 1/4-28 NF 65 deg angle lub, in bearing housing

1шт.

17

(Not used in this application)

1шт.

18

472222R1

SLEEVE

oil seal wear

1шт.
