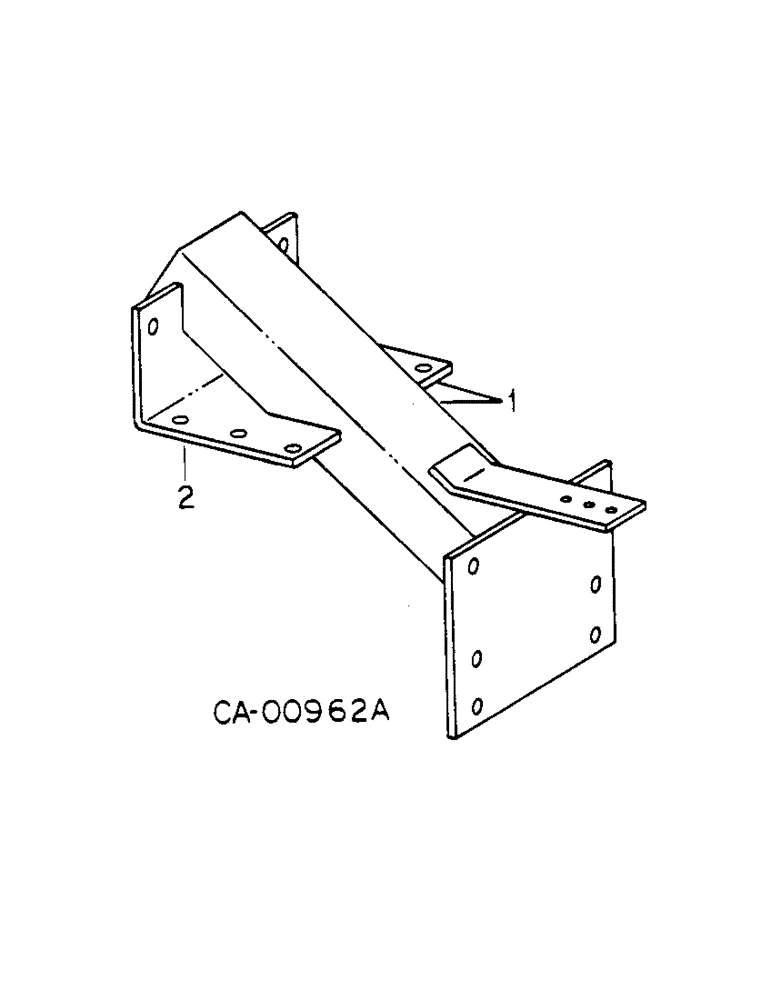

Запчасти Case IH 140 (AN-05) - BEAM EXTENSIONS, FOR UNITS A, B, C AND D 3/4 FURROW PLOWS

1

57098C3

EXTENSION ASSY, frame, 16 in., replaces 541414R1, unit A

1шт.

1

57099C3

EXTENSION ASSY, frame, 18 in., replaces 541415R1, unit C

1шт.

1

131968C91

PACKAGE, frame extension assy, consists of extension assy (NSS)

1шт.

131954C1

SPACER

instruction sheet, unit B (NSS)

4шт.

1

131969C91

EXTENSION

PACKAGE, frame extension assy, consists of extension assy (NSS)

1шт.

131954C1

SPACER

instruction sheet, unit D (NSS)

4шт.

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

SCREW, 7/8-9 x 3-1/2 znd hex-hd cap

2шт.

271819

BOLT,Hex, 7/8" - 9 x 3", Gr 5

SCREW, 7/8-9 x 3 znd hex-hd cap

4шт.

131047

WASHER,7/8"

7/8"

6шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

6шт.

2

542479R1

PLATE

beam mounting, use on 5-1/2 in. frame tube only

1шт.
