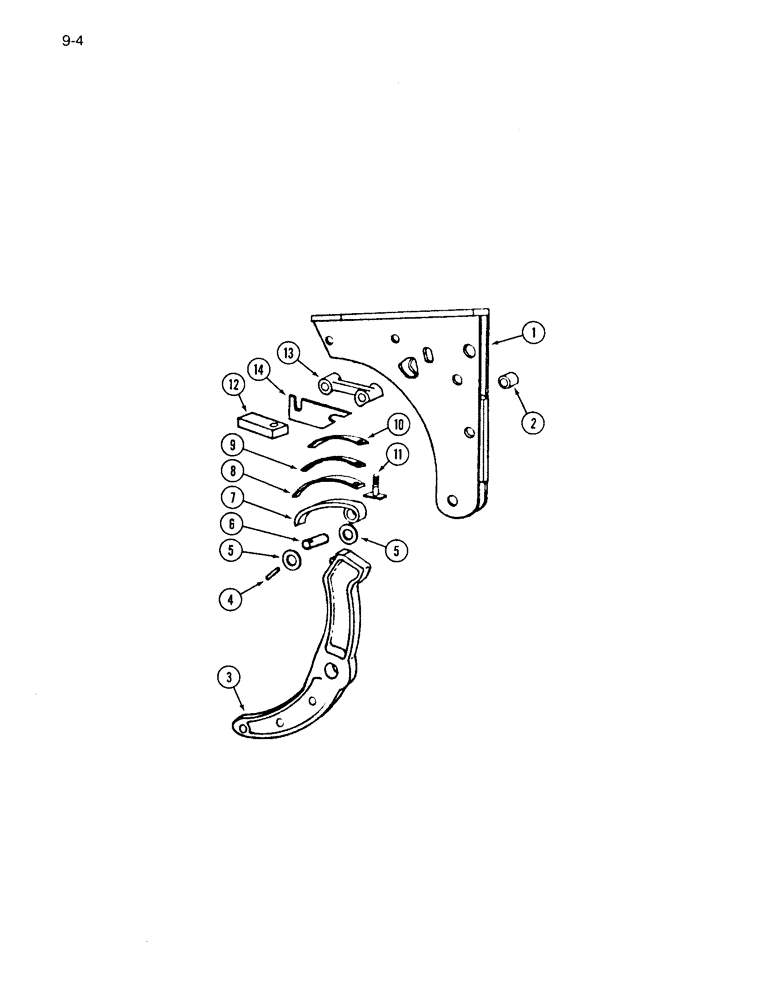

Запчасти Case IH 125 (9-04) - SPRING TRIP BEAM

1

112568C1

PLATE - beam support, left

1шт.

1

56182C1

SIDE ASSY.

PLATE - beam support, right

1шт.

465799R2

BOLT

BOLT - hex, special

2шт.

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 7/64 inch

2шт.

425-1316

NUT,1"-14, G5

NUT - hex slotted, 1 inch NF

2шт.

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

2

522432R2

SPACER

2шт.

424-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 2

- hex, 5/8 NC x 3-1/4 inch

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

541422R1

SUPPORT

BEAM - trip, left

2шт.

3

465800R2

BEAM

- trip, right

2шт.

4

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

4шт.

5

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 1/8 inch

4шт.

6

465801R1

ROLLER

- trip spring

2шт.

7

465868R1

SPRING

- trip

2шт.

21669R1

HEADED PIN,3/4" x 2 13/16"

PIN - 3/4 x 2-13/16 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

8

524454R1

VALVE SPRING

SPRING - lower helper

2шт.

9

524452R1

VALVE SPRING

SPRING - upper helper

2шт.

10

524453R1

VALVE SPRING

SPRING - middle helper

2шт.

11

524357R11

BOLT (MACHINE),2 1/2" L

SCREW ASSEMBLY - adjusting

2шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

425-118

NUT,1/2"-20, G5

- 1/2 inch NC

2шт.

12

524594R1

BAR

SPACER - helper spring, 1/4 inch thick

2шт.

12

524884R1

BAR

SPACER - helper spring, 1/2 inch thick

2шт.

13

479493R1

ARM

- spacer

2шт.

424-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 2

- hex, 5/8 NC x 3-1/4 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

483663R1

SHIM

- spacer arm, 3/64 inch thick

2шт.

14

483664R1

SHIM

- spacer arm, 1/16 inch thick

2шт.
