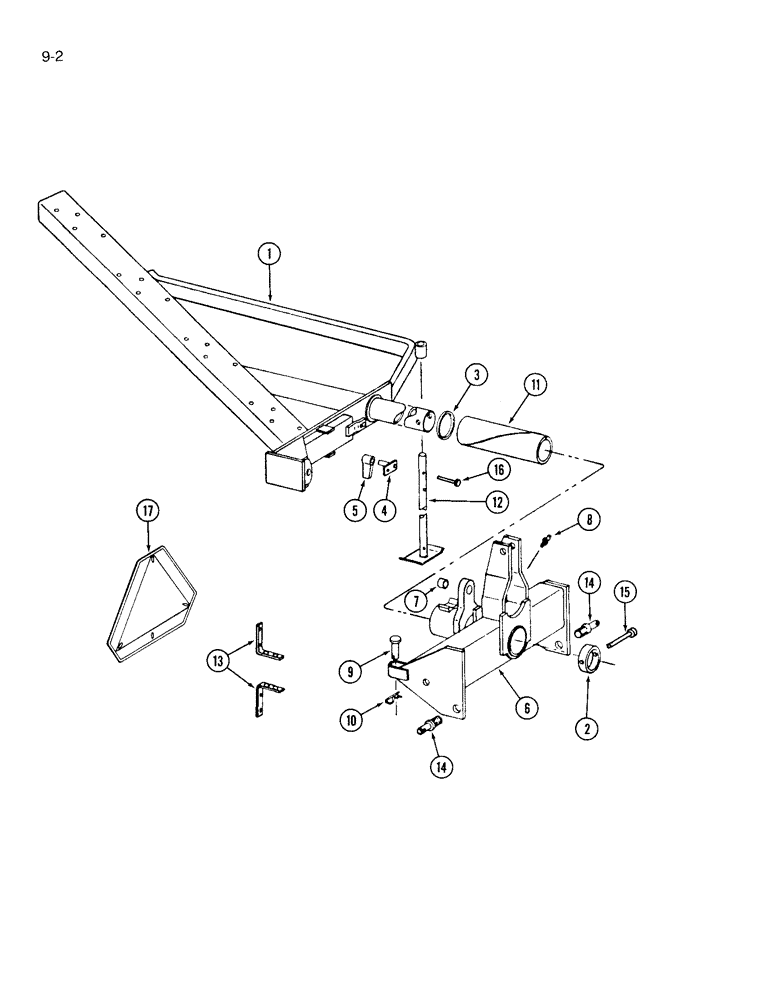

Запчасти Case IH 125 (9-02) - MAIN FRAME
№
Артикул
Название
Примечание
Количество
1
100947C1
FRAME
- main (3 furrow)
1шт.
P/N 1986314C1 Tube Assy to Service old P/N 100946C1 and 100947C1 Frames.
1шт.
1
100946C1
FRAME
- main (4 furrow)
1шт.
P/N 1986314C1 Tube Assy to Service old P/N 100946C1 and 100947C1 Frames.
1шт.
428-1096
BOLT,Hex, 5/8" - 18 x 6", Gr 8
- hex, 5/8 NF x 6 inch (3 furrow)
12шт.
428-1096
BOLT,Hex, 5/8" - 18 x 6", Gr 8
- hex, 5/8 NF x 6 inch (4 furrow)
16шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, (3 furrow) 5/8"
12шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, (4 furrow) 5/8"
16шт.
429-1110
NUT,5/8"-18, G8
(3 furrow) 5/8"-18, G8
12шт.
429-1110
NUT,5/8"-18, G8
(4 furrow) 5/8"-18, G8
16шт.
2
100958C1
SPACER
- retaining collar
1шт.
3
100957C1
WASHER
2шт.
4
541378R1
PIN
STUD - latch
1шт.
424-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 2
- hex, 5/16 NC x 1-1/4 inch
1шт.
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
1шт.
5
541377R1
LATCH
1шт.
6
79993C91
CARRIER
- front
1шт.
7
112885C1
BUSHING,31.75mm ID x 38.1mm OD x 25.4mm L
- cylinder anchor
1шт.
8
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING - grease, straight, 1/4 inch
2шт.
9
22980R1
HEADED PIN,3/4" x 4 1/2"
PIN - 3/4 x 4-1/2 inch
2шт.
122645C1
WASHER
- flat, 13/16 x 1-1/2 x 1/4 inch
12шт.
496-31094
WASHER,15/16" x 1 3/4" x .219", HDN
- flat, hardened, 15/16 x 1-3/4 x 7/32 inch
2шт.
10
1978738C1
HAIR PIN COTTER
2шт.
11
100959C1
TUBE,3.5" ID, 15.75" Length
BEARING - pivot
1шт.
12
112531C1
STAND
- support
1шт.
13
546308R1
CLIP - SMV emblem
2шт.
14
472790R2
STUD
PIN - hitch
2шт.
492-11112
LOCK WASHER,1 1/8"
1 1/8"
2шт.
425-1118
NUT,1 1/8"-12, G5
- hex, 1-1/8 inch NF
2шт.
15
480757R1
PIN
- 3/4 x 5-1/8 inch
1шт.
432-1620
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1 1/4"
1шт.
16
543124R1
HEADED PIN
PIN - 1/2 x 2-3/4 inch
1шт.
1978738C1
HAIR PIN COTTER
2шт.
17
202013C2
TRAFFIC SIGN
EMBLEM - slow moving vehicle
1шт.
FOOTNOTE
1шт.
Выбрано товаров: 36
