Запчасти Case IH 125 (8-8) - TIE BOLT HYDRAULIC CYLINDER

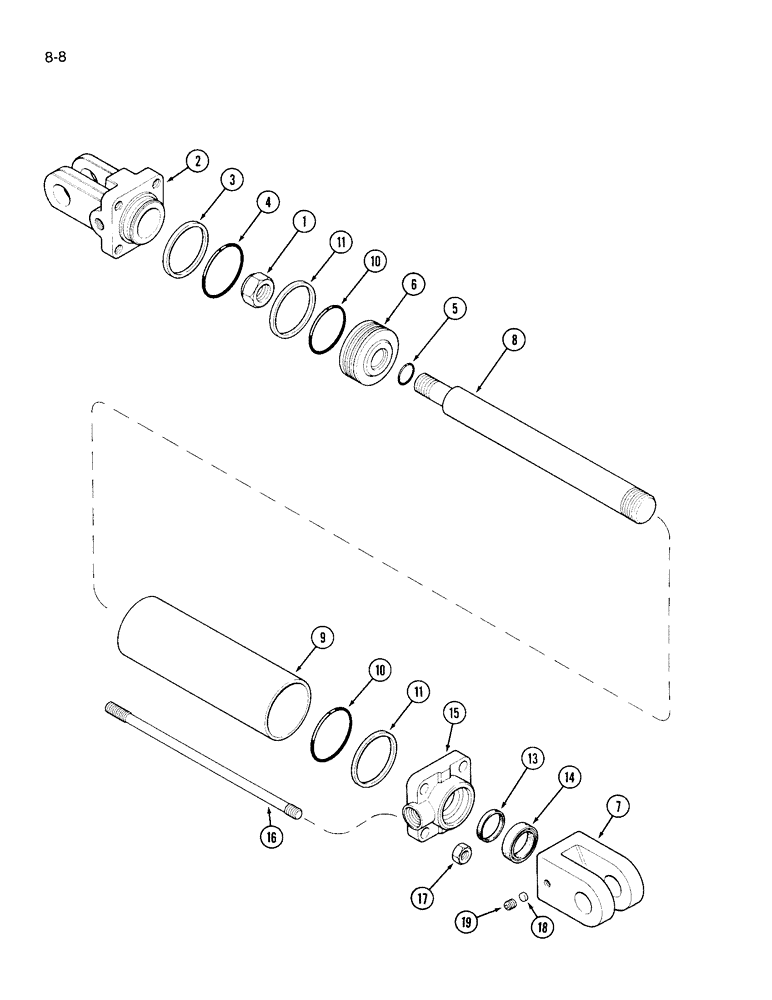

Схема запчастей Case IH 125 - (8-8) - TIE BOLT HYDRAULIC CYLINDER
13
15
5
10
19
9
11
11
10
7
3
8
17
4
16
6
1
2
14
18

Артикул

Название

Примечание

Количество

92889C91

CYLINDER

- hydraulic, 3 x 8 inch

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

2

93222C1

HEAD

- cylinder, rear

1шт.

3

387373R1

RING

SEAL - piston

1шт.

Part of cylinder repair kit P/N 93224C1

1шт.

4

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

Part of cylinder repair kit P/N 93224C1

1шт.

5

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of cylinder repair kit P/N 93224C1

1шт.

6

145225C2

PISTON

- cylinder

1шт.

7

1282366C1

RAM FORK

CLEVIS - rod end

1шт.

8

1272813C1

ROD

- piston

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 92889C91)

1шт.

10

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2шт.

Part of cylinder repair kit P/N 93224C1

1шт.

11

1272763C1

RING

WASHER - backup

2шт.

Part of cylinder repair kit P/N 93224C1

1шт.

13

119203C1

SEAL

SEAL - piston rod

1шт.

Part of cylinder repair kit P/N 93224C1

1шт.

14

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

SEAL - piston rod wiper

1шт.

Part of cylinder repair kit P/N 93224C1

1шт.

15

93223C1

HEAD

- cylinder, front

1шт.

16

93225C1

BOLT

- cylinder retaining

4шт.

17

129-104

NUT,7/16"-14, G5

4шт.

18

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

- nylon

1шт.

19

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

93224C1

SEAL KIT

- cylinder repair, Includes: Ref. 3, 4, 5, 10, 11, 13 and 14

1шт.

Выбрано товаров: 27
