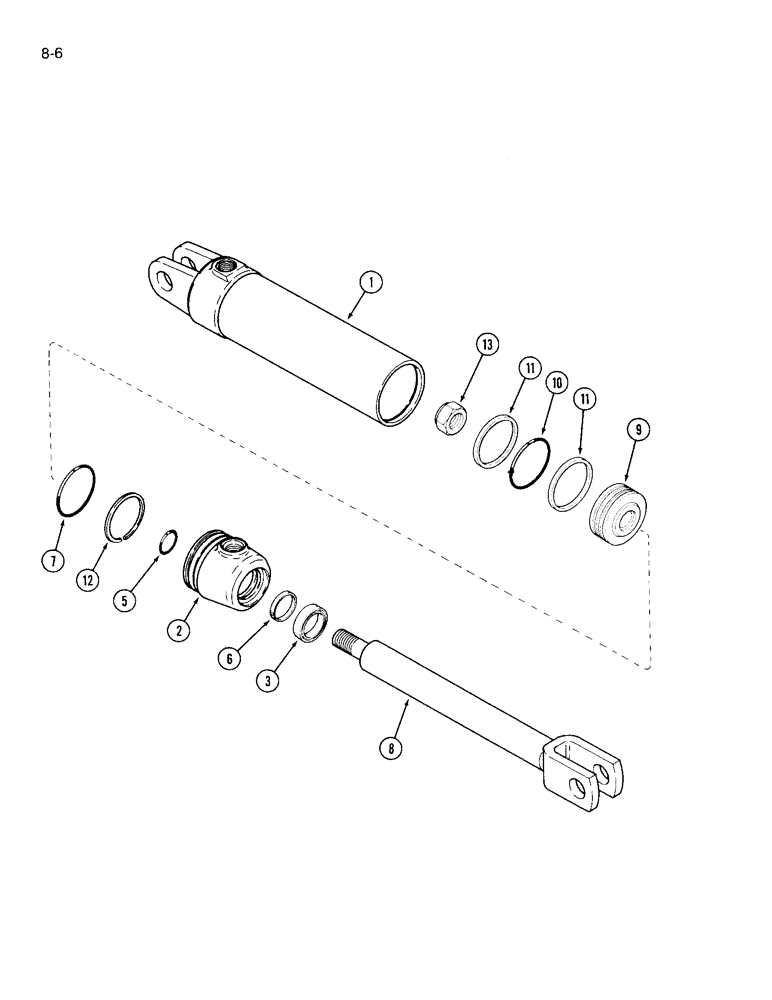

Запчасти Case IH 125 (8-6) - WELDED HYDRAULIC CYLINDER

145493C93

CYLINDER

- hydraulic, 3 x 8 inch

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 145493C93)

1шт.

2

145494C3

HEAD

- cylinder, front

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER - piston rod (Replaces seal and seal retainer)

1шт.

Part of cylinder repair kit P/N 145656C2

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of cylinder repair kit P/N 145656C2

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - back-up

1шт.

Part of cylinder repair kit P/N 145656C2

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of cylinder repair kit P/N 145656C2

1шт.

8

145495C1

ROD

- piston

1шт.

9

145497C1

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of cylinder repair kit P/N 145656C2

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - back-up

2шт.

Part of cylinder repair kit P/N 145656C2

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of cylinder repair kit P/N 145656C2

1шт.

13

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

145656C2

KIT

- cylinder repair, Includes: Ref. 3, 5, 6, 7, 10, 11 and 12

1шт.
