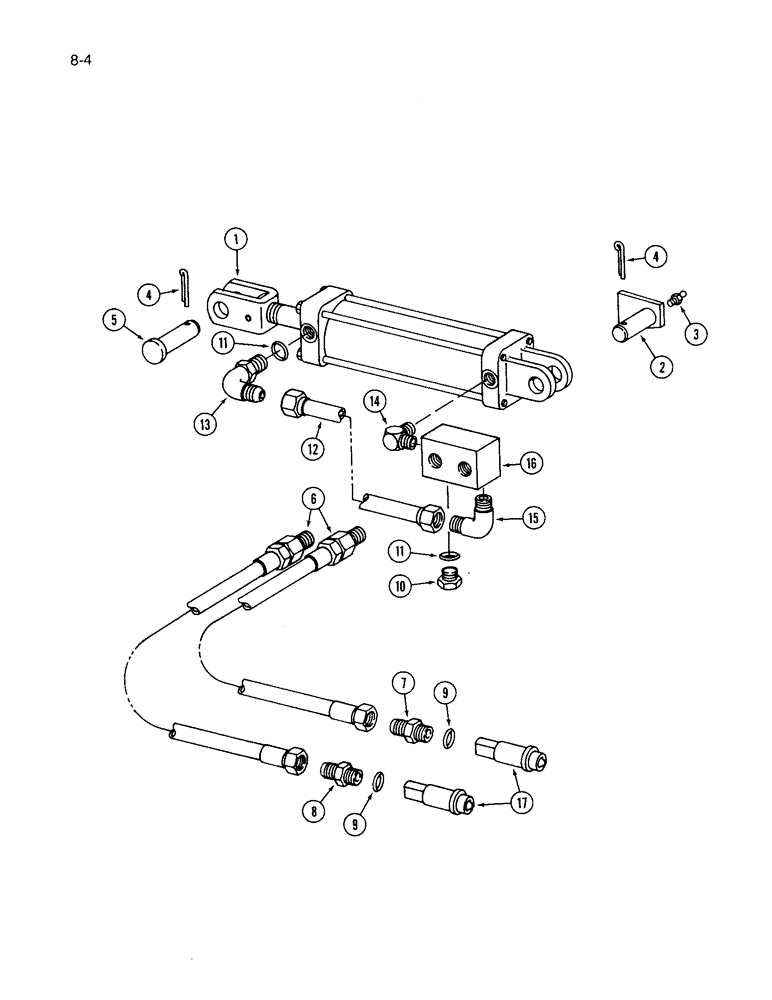

Запчасти Case IH 125 (8-4) - HYDRAULIC EQUIPMENT, PLOWS WITH TIE BOLT HYDRAULIC CYLINDERS

1

REF

INSTRUCTION

CYLINDER - hydraulic, 3 x 8 inch (See page 8-9)

1шт.

2

128723C5

CLEVIS PIN

PIN - non-rotating

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4 inch NF

1шт.

4

432-2028

COTTER PIN,5/16" x 1 3/4"

Pin, Split (Cotter), 5/16" x 1 3/4"

2шт.

5

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch

1шт.

6

1333872C1

HYDRAULIC HOSE,0.50" ID x 50.00"

2шт.

7

1333873C1

ADAPTER

- special, orifice

1шт.

8

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch o-ring boss

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

10

9410360

PLUG

- hex, 7/8-14 inch o-ring boss

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

12

85143C1

HYD TUBE,15.88 mm DIA x 333.25 mm L

TUBE - hydraulic

1шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj o-ring boss

1шт.

14

217-1226

ELBOW,90 Degree, 1/2"-14 Male

- 90 degree, 1/2 inch male PT

1шт.

15

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

- 90 degree, 7/8-14 x 1/2 inch PT

1шт.

16

85144C1

BLOCK

- manifold

1шт.

17

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

1шт.

17

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

1шт.

17

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8-14 thread (ISO Standard)

1шт.

17

1285718C2

QUICK MALE COUPLING

- self sealing male, 3/4-16 thread (ISO Standard)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used with 7/8-14 thread coupler

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 3/4"-16 thread coupler

1шт.

407045R1

FITTING

BUSHING - reducer, 3/4-16 x 7/8-14 thread (Adapt 3/4-16 fitting to 7/8-14 coupler)

1шт.

407545R1

FITTING

BUSHING - reducer, 7/8-14 x 3/4-16 thread (Adapt 7/8-14 fitting to 3/4-16 coupler)

1шт.
