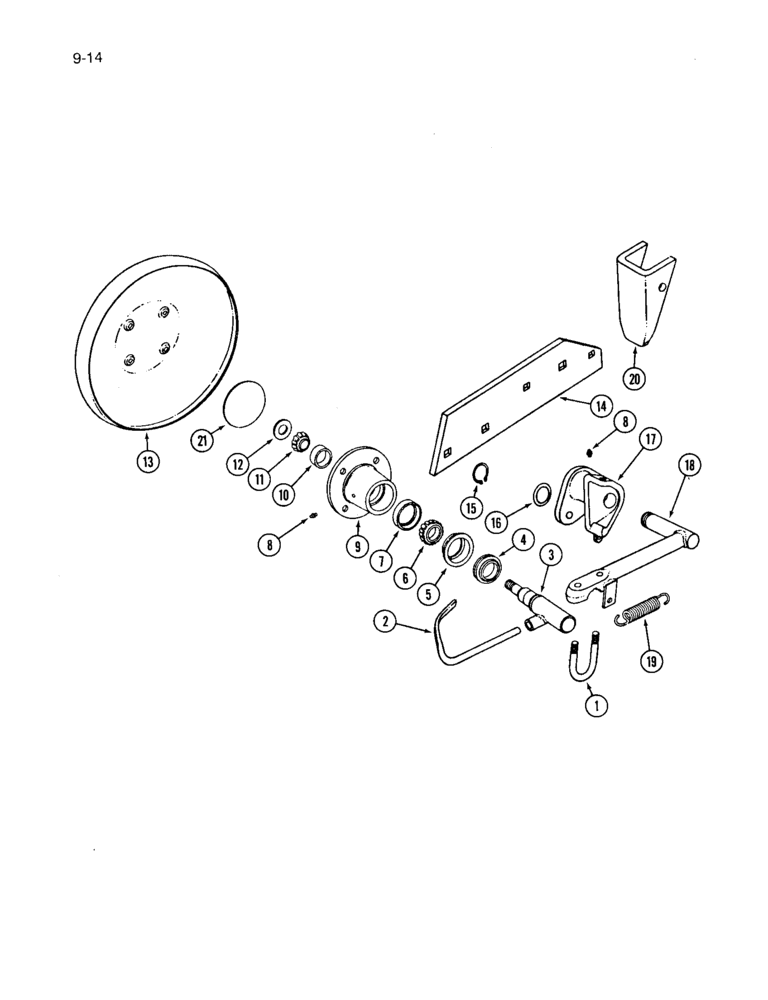

Запчасти Case IH 125 (9-14) - REAR FURROW WHEEL

1

478221R1

BOLT,Plow, 1/2" - 13 x 3.0"

U-BOLT

2шт.

92-11050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

4шт.

2

478222R1

KNIFE

BLADE - scraper, left

1шт.

2

478223R1

KNIFE

BLADE - scraper, right

1шт.

3

478216R91

SPINDLE

2шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - square head set, 1/2 x 3/4 inch

2шт.

32-1020

COTTER PIN,5/32" x 1 1/4"

NUT - slotted hex, 3/4 inch NF

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

95-81024

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

- flat, 25/32 x 1-1/2 x 1-1/16 inch

2шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

2шт.

5

472222R1

SLEEVE

- oil seal

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing

2шт.

7

651817R1

BEARING CUP

CUP - bearing

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

4шт.

9

122711C1

HUB

- furrow wheel

2шт.

62177C1

PLOW BOLT

BOLT - hex, 7/16 NC x 1-1/4 inch

8шт.

92-11044

SPRING WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

429-107

NUT,7/16"-14, G8

8шт.

10

651814R1

BEARING CUP

CUP - bearing

2шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing

2шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

12

95-81024

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

13

542488R1

WHEEL

- furrow

2шт.

14

478226R1

LANDSIDE

- left

1шт.

14

478227R1

LANDSIDE

- right

1шт.

62179C1

PLOW BOLT

BOLT - hex, 7/16 NC x 2-1/8 inch

2шт.

CP15226

PLOW BOLT,5/8" - 11 x 3", Gr 5

BOLT - flat head square neck, 5/8 NC x 3 inch

2шт.

15631R1

BOLT,5/8"-11 x 2 1/4", G2

- flat head square neck, 5/8 NC x 2-1/4 inch

2шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 NC

2шт.

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

3шт.

15

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

2шт.

16

566666R1

WASHER

WASHER - flat, 1-13/32 x 2-1/8 x 3/16 inch

2шт.

17

542329R1

PIVOT

- rear axle, left

1шт.

17

542330R1

PIVOT

- rear axle, right

1шт.

478215R1

BOLT - hex, 5/8 NC x 2-1/4 inch

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

2шт.

18

541525R1

AXLE

- spring loaded furrow wheel, left

1шт.

18

541526R1

AXLE

- spring loaded furrow wheel, right

1шт.

19

478219R1

SPRING

- rear furrow wheel

2шт.

20

542495R1

SUPPORT

STOP - beam (See note)

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

21

172602

SUPPORT

- expansion, 2-3/4 inch

2шт.
