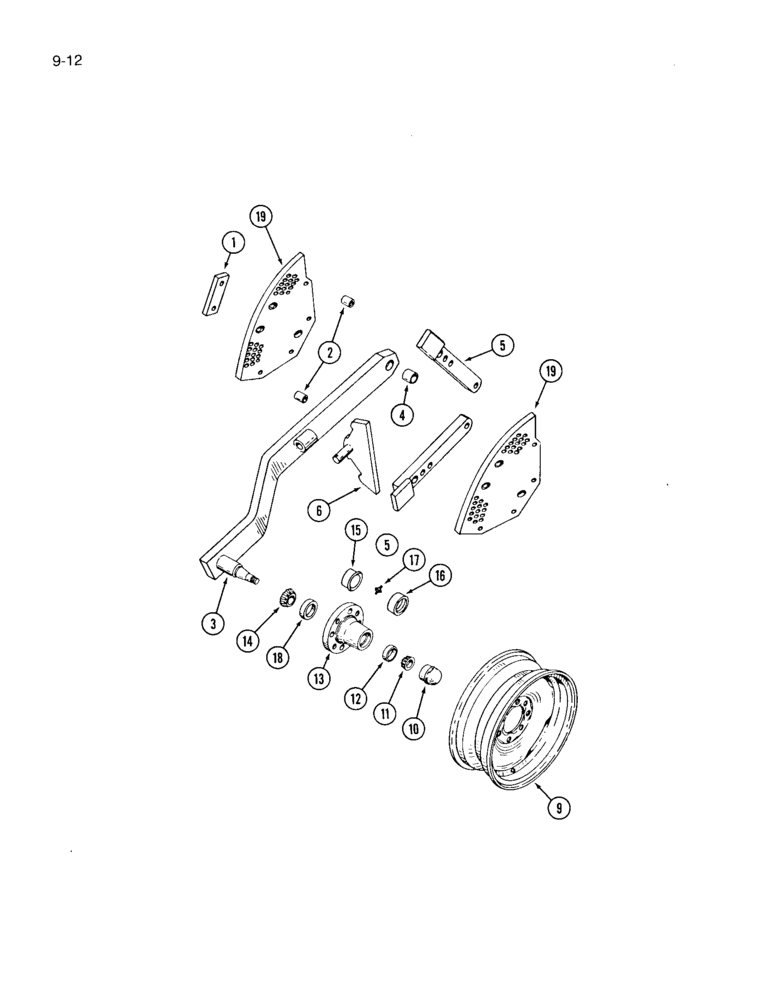

Запчасти Case IH 125 (9-12) - GAUGE WHEEL, SIX BOLT HUB

1

463070R1

LARGE PLATE

CLIP - attaching plate

1шт.

2

463069R1

SPACER

- attaching plate

2шт.

3

96109C91

SUPPORT ASSY.

STANDARD - wheel

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- special

1шт.

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4 inch NF

1шт.

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

4

463063R1

BUSHING

- standard

1шт.

5

477908R92

BAR

- latch

2шт.

6

463072R12

LATCH ASSY.

LATCH

1шт.

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

9

T25842

RIM

WHEEL - (with 6 mtg. holes) (Use with 7-1/2 x 14 inch tire)

1шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

6шт.

10

B13280

HUB CAP

CAP - wheel hub

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

12

651814R1

BEARING CUP

CUP - bearing, outer

1шт.

13

810087C2

HUB

- wheel, 6 bolt

1шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner

1шт.

15

472222R1

SLEEVE

- wear, oil seal

1шт.

16

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

18

651817R1

BEARING CUP

CUP - bearing, inner

1шт.

18

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

19

477910R2

LARGE PLATE

PLATE - wheel attaching

2шт.

543124R1

HEADED PIN

PIN - 1/2 x 2-3/4 inch

2шт.

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

2шт.

463154R2

BOLT

BOLT - special

1шт.

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

PIN, SPLIT (COTTER), 3/16" x 2"

1шт.

15672R1

PLOW BOLT,#3, 5/8" - 11 x 3", Gr 2

BOLT - flat head square neck, 5/8 NC x 3 inch

2шт.

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

9413944

NUT

- hex lock, 5/8 inch NC

2шт.

424-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 2

- hex, 1/2 NC x 2-3/4 inch

2шт.

92-11050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
