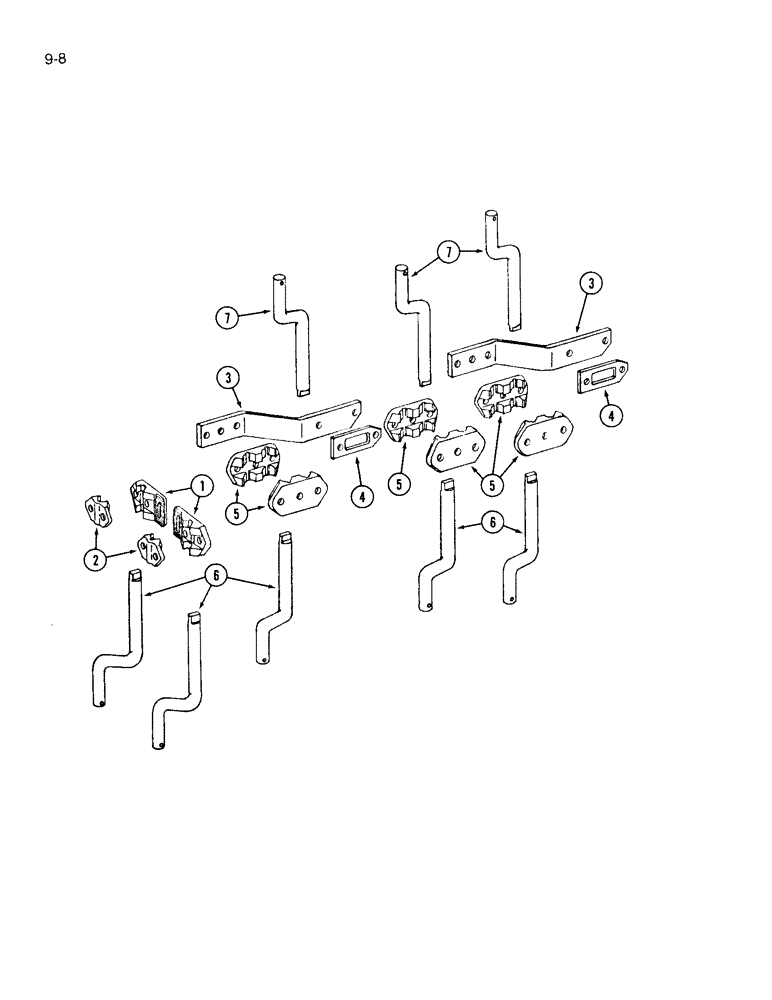

Запчасти Case IH 125 (9-08) - COLTER SHANK AND CLAMPS

1

462684R1

CLAMP

- colter, front

2шт.

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

523011R1

WASHER

- front colter clamp

2шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

524492R1

CLAMP

CAP - colter clamp, front

2шт.

3

479510R1

RAIL

BAR - colter (3 furrow)

1шт.

3

479510R1

RAIL

BAR - colter (4 furrow)

2шт.

4

524465R1

SUPPORT

SPACER (3 furrow)

1шт.

4

524465R1

SUPPORT

SPACER (4 furrow)

2шт.

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

(3 furrow) Hex, 5/8"-11 x 3 1/4", G5

2шт.

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

(4 furrow) Hex, 5/8"-11 x 3 1/4", G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (3 furrow) 5/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (4 furrow) 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

(3 furrow) 5/8"-11, G5

2шт.

425-1010

NUT,5/8"-11, G5

(4 furrow) 5/8"-11, G5

4шт.

5

462687R1

STAPLE

CLAMP - colter cap (3 furrow)

4шт.

5

462687R1

STAPLE

CLAMP - colter cap (4 furrow)

6шт.

271758

BEARING ASSY,Hex, 5/8" - 18 x 4 1/2", Gr 5

BOLT - hex, 5/8 NF x 4-1/2 inch (3 furrow)

6шт.

271758

BEARING ASSY,Hex, 5/8" - 18 x 4 1/2", Gr 5

BOLT - hex, 5/8 NF x 4-1/2 inch (4 furrow)

9шт.

129-127

NUT,5/8"-18, G5

(3 furrow) 5/8"-18, G5

6шт.

129-127

NUT,5/8"-18, G5

(4 furrow) 5/8"-18, G5

9шт.

6

466944R1

ROD

SHANK - colter (3 furrow)

4шт.

6

466944R1

ROD

SHANK - colter (4 furrow)

5шт.

7

522434R1

STEM

SHANK - colter (3 furrow)

2шт.

7

522434R1

STEM

SHANK - colter (4 furrow)

3шт.

22947R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), (3 furrow) 5/16" x 2 1/4"

6шт.

22947R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), (4 furrow) 5/16" x 2 1/4"

8шт.
