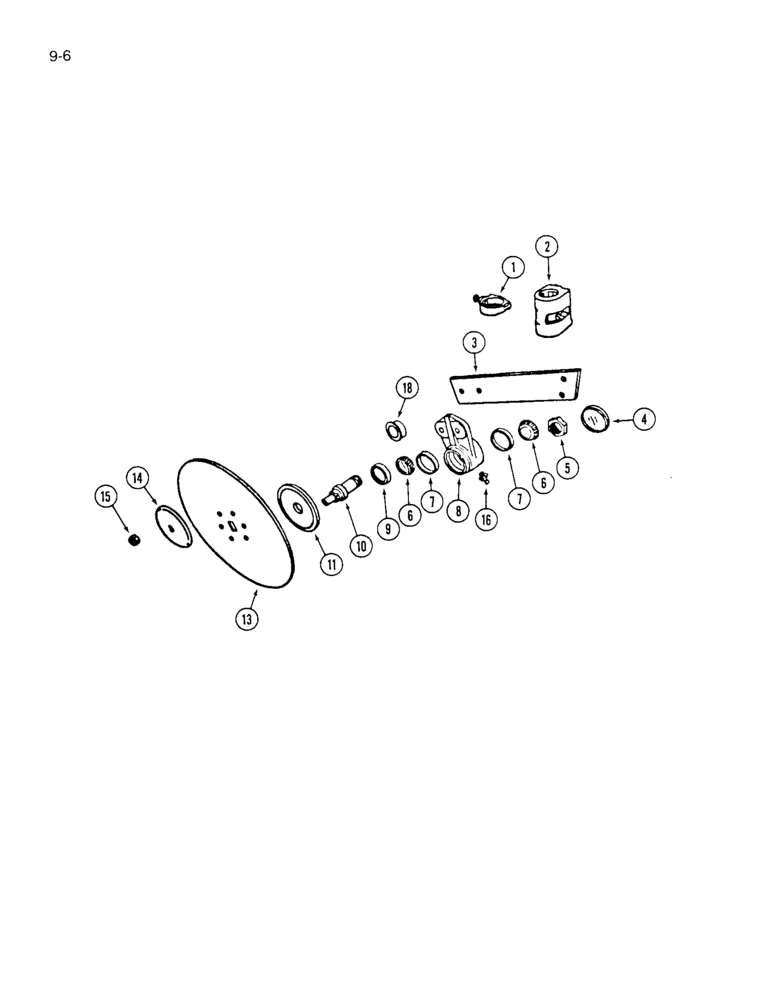

Запчасти Case IH 125 (9-06) - ROLLING COLTER
№
Артикул
Название
Примечание
Количество
1
523345R21
COLLAR CLAMP
COLLAR - stop
2шт.
485-15020
SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"
SCREW - square head cup point, set, 1/2 NC x 1-1/4 inch
2шт.
2
462273R3
SUPPORT ASSY.
BEARING - colter arm, right
2шт.
2
462272R3
SUPPORT ASSY.
BEARING - colter arm, left
2шт.
413-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5
- hex, 5/8 NC x 1-3/4 inch
2шт.
20033R1
LOCK NUT
NUT - hex lock, 5/8 inch NC
2шт.
414-728
BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5
- hex, 7/16 NF x 1-3/4 inch
2шт.
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
425-117
NUT,7/16"-20, G5
- hex, 7/16 inch NF
2шт.
3
131517C92
LEVER
ARM - colter
2шт.
M906
HEADED PIN,7/16" x 1 1/8"
PIN - clevis, 7/16 x 1-1/8 inch
1шт.
32-1216
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
1шт.
4
518842R1
CAP
- hub
2шт.
5
519250R1
SLOTTED NUT
- slotted hex, 1-1/4 inch NF
2шт.
7
651817R1GV
BEARING CUP
Value, Bearing Cup
4шт.
8
541481R1
SUPPORT
HOUSING - bearing, left
2шт.
8
541482R1
BEARING HOUSING,2.3275" ID x 3" OD x 2.44"
HOUSING - bearing, right
2шт.
413-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
- hex, 1/2 NC x 2-1/4 inch
2шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
2шт.
9
472221R91
SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk
- oil
2шт.
10
541480R1
SPINDLE
- colter
2шт.
432-1224
COTTER PIN,3/16" x 1-1/2"
3/16" x 1 1/2"
2шт.
432-828
COTTER PIN,1/8" x 1 3/4"
PIN, SPLIT (COTTER), 1/8" x 1 3/4"
2шт.
11
523020R3
SUPPORT ASSY.
SUPPORT - inside blade
2шт.
13
469191R3
BLADE
DISC - rippled edge, 17 inch
2шт.
14
523021R2
SUPPORT ASSY.
SUPPORT - outside blade
2шт.
15
429-1314
NUT,7/8"-14, G8
NUT - slotted hex, 7/8 inch NF
2шт.
16
17238R91
LUBE NIPPLE,65 Degree, 1/4" NPT x .73" lg
FITTING - grease
2шт.
18
472222R1
SLEEVE
- oil seal
4шт.
Выбрано товаров: 32
