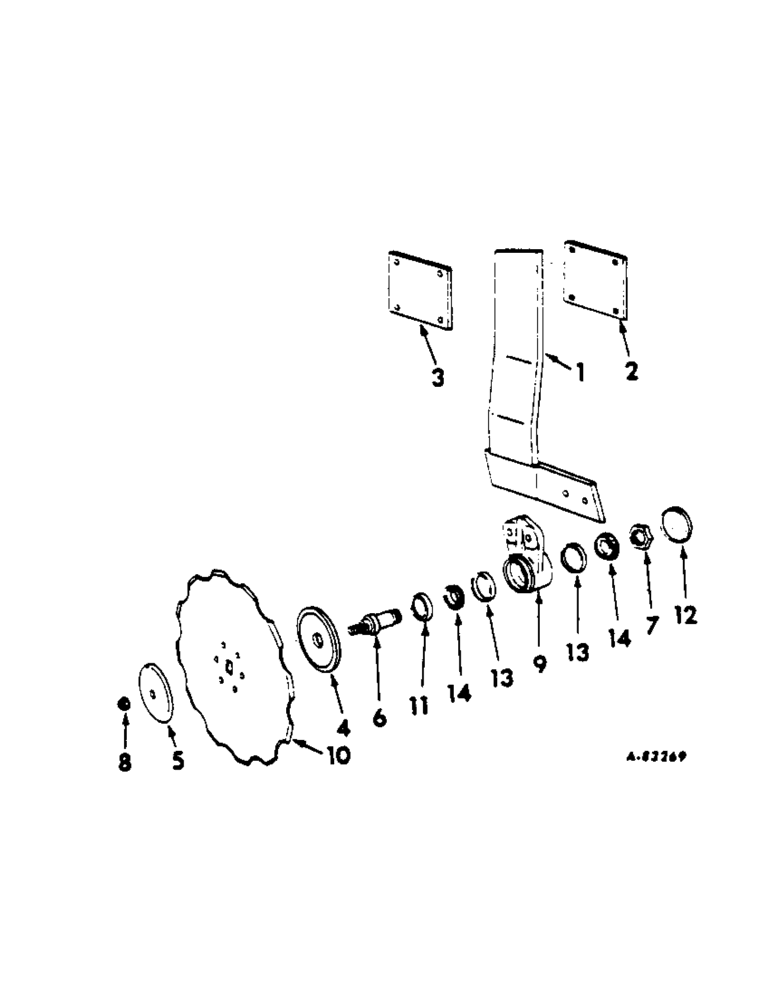

Запчасти Case IH 10 (AF-5) - ROLLING COLTER, ONE PER FURROW, PRODUCT GRAPHICS

1

476786R91

STANDARD ASSY

1шт.

2

476798R1

BLOCK, standard clamp

2шт.

15255R1

BOLT, 5/8 x 4-3/4 sq-nk crg

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

476797R1

BLOCK, clamp spacer

1шт.

4

523020R2

SUPPORT ASSY.

SUPPORT, blade inside

1шт.

5

523021R1

WASHER

SUPPORT, blade outside

1шт.

6

523023R1

SPINDLE

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

7

519250R1

SLOTTED NUT

1-1/4-16 slotted hex

1шт.

8

361011R1

NUT

3/4-16 ESNA stop

1шт.

9

523019R3

HOUSING

RH bearing

1шт.

179890

LATCH

SCREW, 1/2-13 x 2-1/4 hex-hd cap

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

471166R1

COULTER

BLADE, 20 in. notched

1шт.

11

523027R91

OIL SEAL

bearing housing oil

1шт.

12

518842R1

CAP

bearing housing

1шт.

13

651817R1

BEARING CUP

BEARING, housing cup

2шт.

13

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

481101R91

PACKAGE, product graphics

1шт.

1000412R2

IH, on main frame

1шт.

2754034R1

PRODUCT GRAPHIC

MODEL DESIGNATION

1шт.

2751265R1

DECAL

INTERNATIONAL

1шт.
