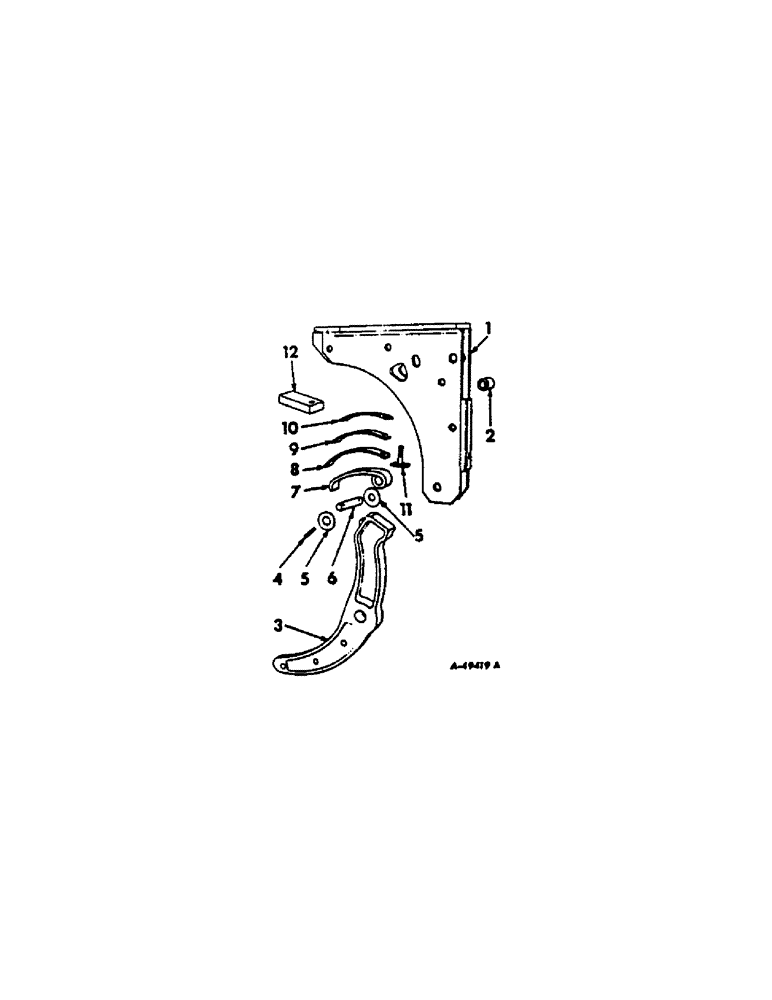

Запчасти Case IH 10 (AF-4) - TRIP BEAM

1

476795R91

PLATE ASSY, side

1шт.

2

522432R2

SPACER

STOP AND SPACER

1шт.

17651R1

BOLT,Hex, 5/8" - 11 x 3 1/4"

5/8-11 x 3-1/4 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

524368R1

BEAM

RH trip

1шт.

3

524367R1

BEAM

LH trip

1шт.

522680R2

BOLT

1 x 3-3/8 hex-hd drld

1шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt-hex

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

4

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

5

522473R1

WASHER

2шт.

6

465801R1

ROLLER

trip spring, will work for 522967R1

1шт.

7

465868R1

SPRING

trip, will work for 524356R1

1шт.

21669R1

HEADED PIN,3/4" x 2 13/16"

PIN, 3/4 x 2-13/16 zn-pltd std-hd

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot

1шт.

8

524454R1

VALVE SPRING

SPRING, lower helper

1шт.

9

524453R1

VALVE SPRING

SPRING, middle helper

1шт.

10

524452R1

VALVE SPRING

SPRING, upper helper

1шт.

11

524357R11

BOLT (MACHINE),2 1/2" L

SCREW ASSY, adjusting

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex, jam

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

1шт.

12

524594R1

BAR

SPACER, 1/4 helper spring

1шт.

12

524884R1

BAR

SPACER, 1/2 helper spring

1шт.
