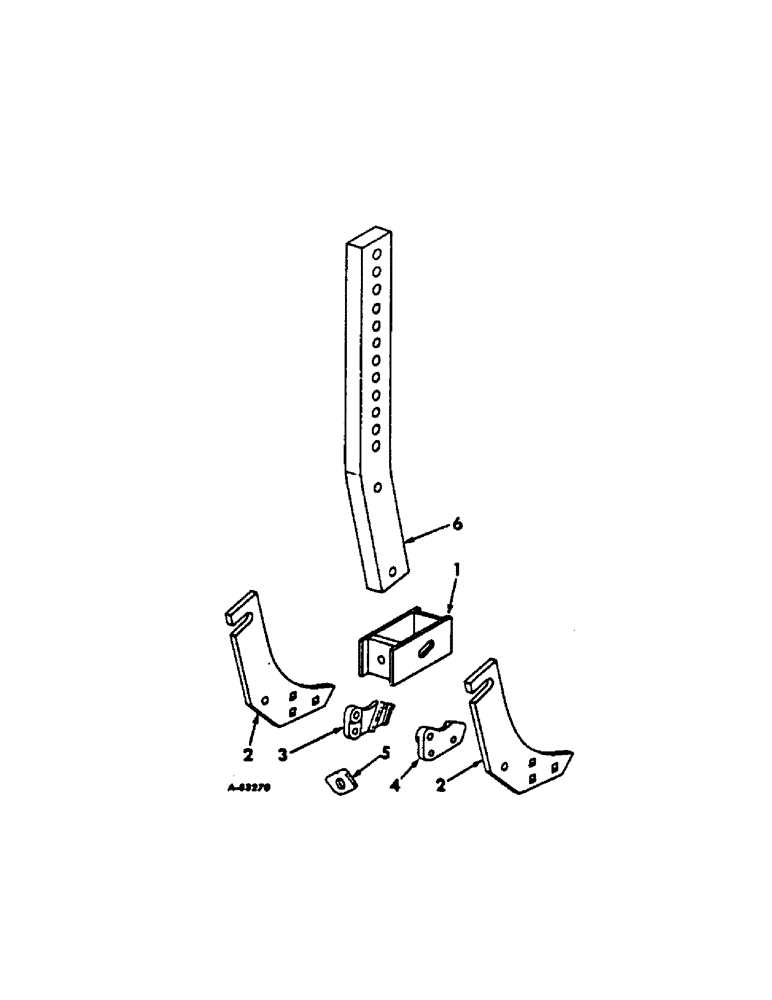

Запчасти Case IH 10 (AF-4[A]) - CAPPER BOTTOM AND STANDARD ATTACHMENT

526242R1

SHIM

frame rail

1шт.

1

476783R91

BRACKET ASSY, adjusting

1шт.

462645R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Full Thd

SCREW, 3/4-10 x 3-1/2 ehx-hd cap

1шт.

218443

NUT

3/4-10 hex, jam

1шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

2

PO28367A

PLATE

break-off side

2шт.

15125R1

BOLT, 7/16-14 x 2-3/4 sq-nk crg

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex

2шт.

15126R1

BOLT, 1/2-13 x 2-3/4 sq-nk crg

1шт.

102637

NUT,1/2"-13, G5

1шт.

17651R1

BOLT,Hex, 5/8" - 11 x 3 1/4"

5/8-11 x 3-1/4 hex-hd mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

3

PO28181

BLOCK

LH spacer

1шт.

4

PO28182

ANCHOR

BLOCK, RH spacer

1шт.

5

PO28179A

CLIP

attaching bolt

1шт.

6

476806R1

BEAM

1шт.

PO28369

STRIP

SPACER, block

1шт.
