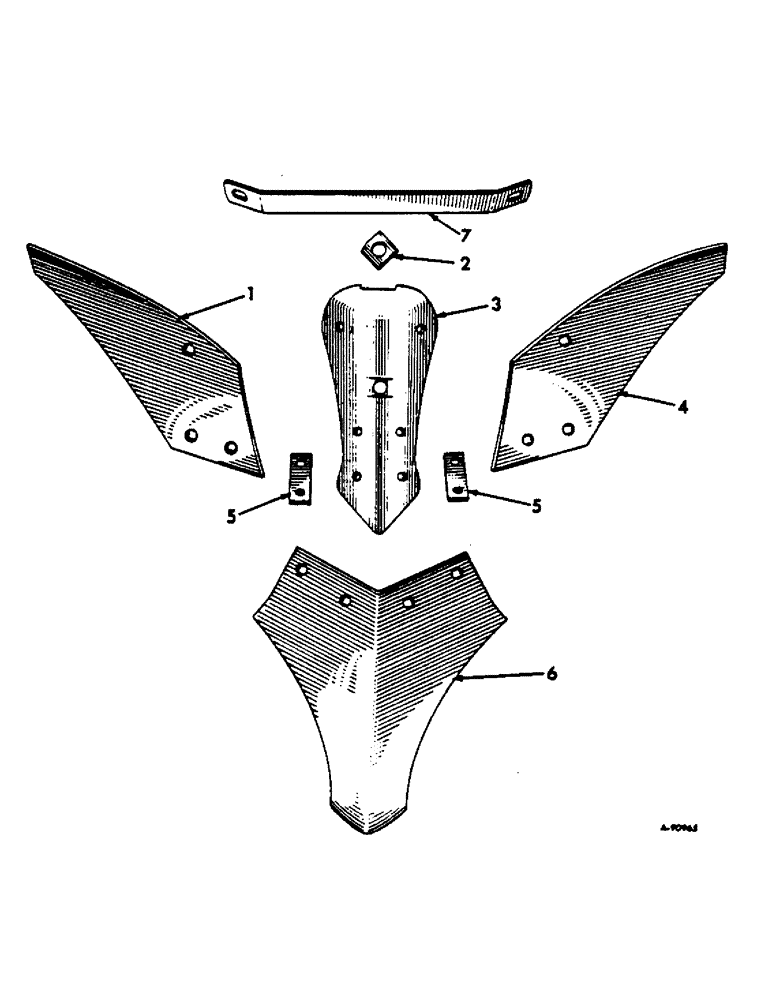

Запчасти Case IH 10 (AF-3) - CAPPER BOTTOMS

1

O3080

MOLDBOARD ASSY, soft center RH

1шт.

15564R1

BOLT

7/16-14 x 1-1/4 no. 3 plow

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex

4шт.

2

PO28179A

CLIP

attaching bolt

1шт.

3

519753R1

FROG

1шт.

20666R1

BOLT (SPREADER)

BOLT, 5/8-11 x 6 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

4

O3081

MOLDBOARD ASSY, soft center LH

1шт.

15564R1

BOLT

7/16-14 x 1-1/4 no. 3 plow

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex

4шт.

5

515976R1

SUPPORT

TIE, Serial Range: moldboard-share

2шт.

271616

SEAL KIT

SCREW, 3/4 x 3-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

3/4 hex

2шт.

6

OB708

SHARE ASSY, solid 22 inch

1шт.

15564R1

BOLT

7/16-14 x 1-1/4 no. 3 plow

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex

4шт.

7

PO11258

BRACE, moldboard

1шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

2шт.
