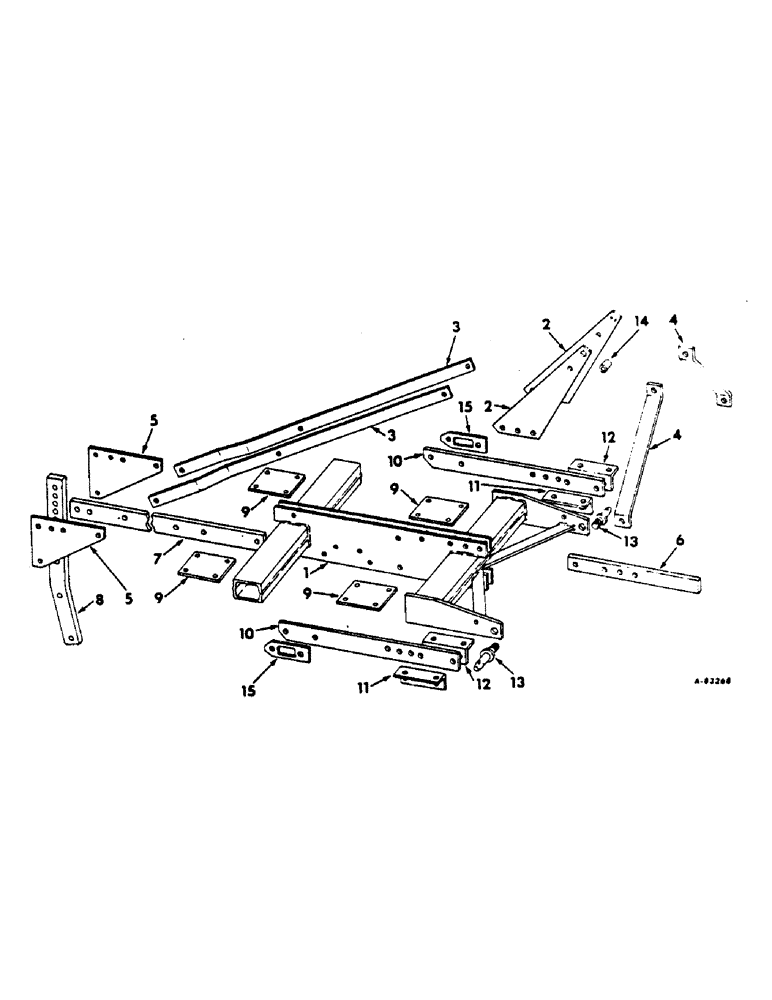

Запчасти Case IH 10 (AF-2) - MAIN FRAME

1

476789R91

FRAME ASSY

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 hex-hd cap

5шт.

220081

NUT

3/4-10 hex

5шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

5шт.

2

476807R1

PLATE, mast

2шт.

271027

SCREW, 3/4-10 x 4-1/4 hex-hd cap

3шт.

273027

DRIVING SPROCKET,Hex, 3/4" - 16 x 6 1/2", Gr 5

SCREW, 3/4-16 x 6-1/2 hex-hd cap

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

3шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

3

476809R1

BRACE, center mast

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

4

476810R1

BRACE, mast

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

2шт.

220081

NUT

3/4-10 hex

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

476803R1

PLATE, standard side

2шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 hex-hd cap

3шт.

271620

BOLT

SCREW, 3/4-10 x 4-1/4 hex-hd cap

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

6

476805R1

BAR, colter rail

1шт.

7

476804R1

BAR, center rail

1шт.

8

476806R1

BEAM

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, 3/4 x 3-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

220081

NUT

3/4 hex

2шт.

9

476802R1

BLOCK, attaching

4шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

16шт.

102639

NUT,5/8"-11, G5

16шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

16шт.

10

478808R1

BAR, side frame rail

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd cap

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

476800R1

ANGLE, rail attaching RH

2шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

476799R1

ANGLE, rail attaching LH

2шт.

13

472790R1

STUD

hitch lower

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

14

462425R1

SPACER

mast

1шт.

15

524465R1

SUPPORT

SPACER, rail

2шт.
