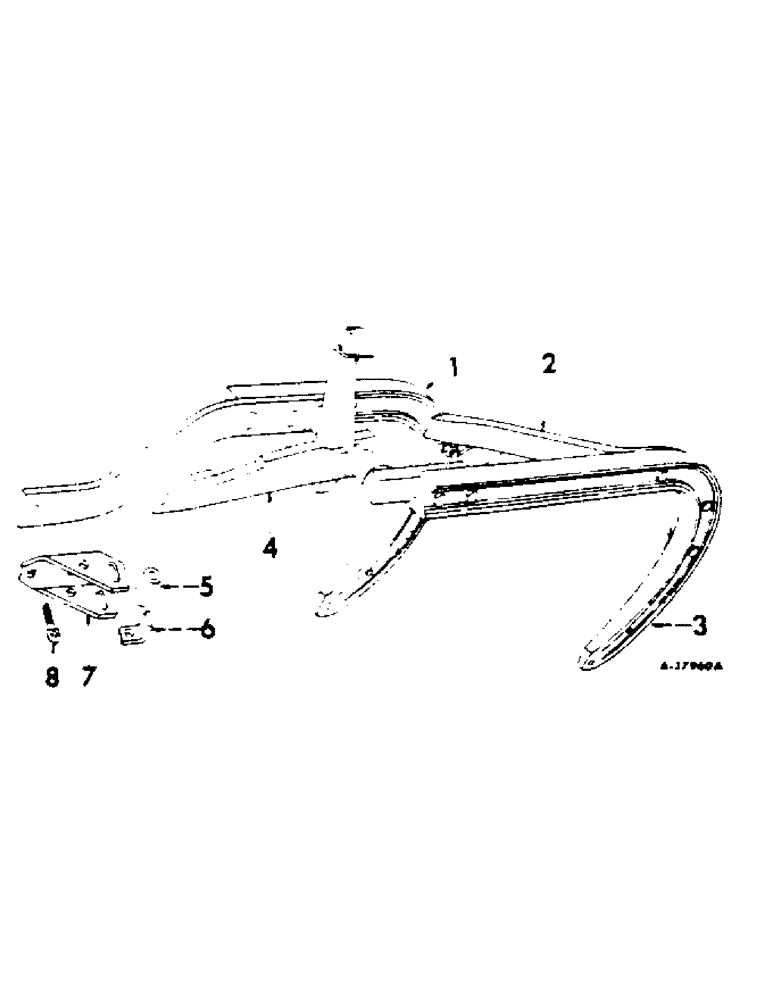

Запчасти Case IH 1-F296 (T-2) - BEAM, BRACE AND COLTER BRACKET

1

520722R1

BEAM, first

1шт.

2

516051R92

BRACE, rear beam 12 in.

1шт.

2

516052R92

BRACE, rear beam 14 in.

1шт.

5/8 x 2-1/2 MACH BOLT

1шт.

5/8 x 3-1/2 MACH BOLT

2шт.

5/8 x 3-1/4 MACH BOLT

2шт.

5/8 LOCK WASHER

5шт.

3

520723R1

BEAM, second

1шт.

4

520720R92

BEAM, 12 in. coupling

1шт.

4

520721R92

BEAM, 14 in. coupling

1шт.

521450R11

5/8 x 3 SPEC CRG BOLT

2шт.

5/8 NUT

3шт.

5/8 x 3 CAP SCREW

1шт.

5/8 x 3-1/4 CAP SCREW

2шт.

5/8 LOCK WASHER

5шт.

5

512325R2

BUSHING, front colter yoke

1шт.

6

520837R1

STOP, front colter

1шт.

7

515797R1

BRACKET, front colter

1шт.

5/8 x 2 CRG BOLT

1шт.

512061R1

5/8 x 3 SQ-HD MACH BOLT, THD TO HEAD

1шт.

5/8 x 5 MACH BOLT

1шт.

5/8 LOCK WASHER

2шт.

21/32 x 1-1/2 x 11 GA WASHER

1шт.

8

520836R11

BOLT

EYEBOLT W/NUT, adjusting

1шт.

5/8 NUT

1шт.

11/16 x 1-1/2 x 11 GA WASHER

1шт.

7466

WASHER

beam

1шт.
