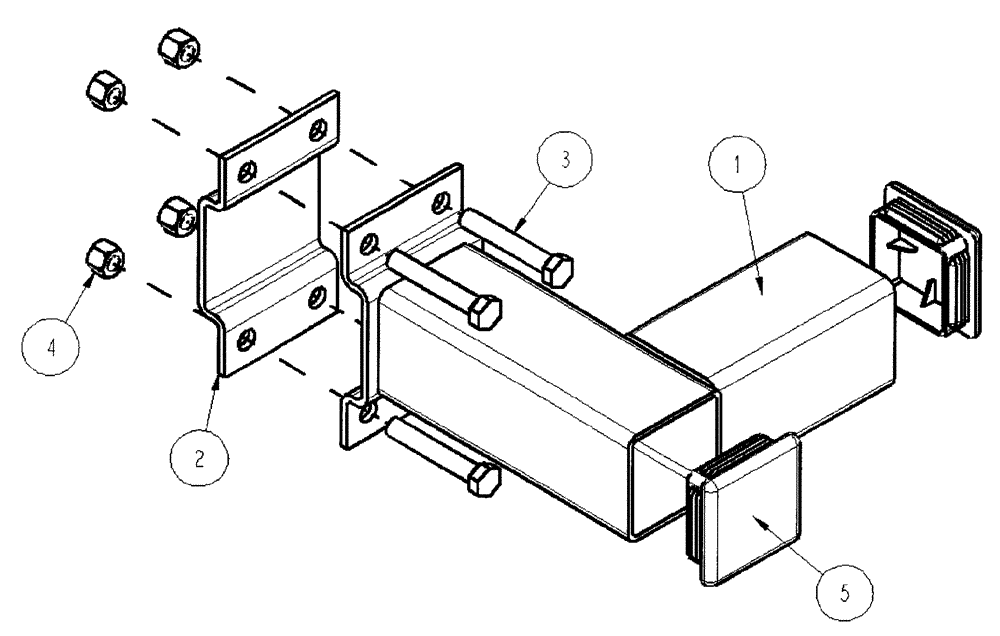

Запчасти Case IH 4450 (09-11) - STUB EXTENSION WING - USED ON 26 FOOT 3 INCH MACHINE

1

340281A1

TUBE,200 mm Length

assembly stub shank mounting

1шт.

2

220483A1

PLATE

stub extension

1шт.

3

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

bolt hex head, 5/8 x 3-3/4, grade 5 ZND

4шт.

4

231-41410

NUT,5/8"-11, GB

prevailing torque, grade 8 ZND direct

4шт.

5

357917A1

INSERT

cap tube end

2шт.
