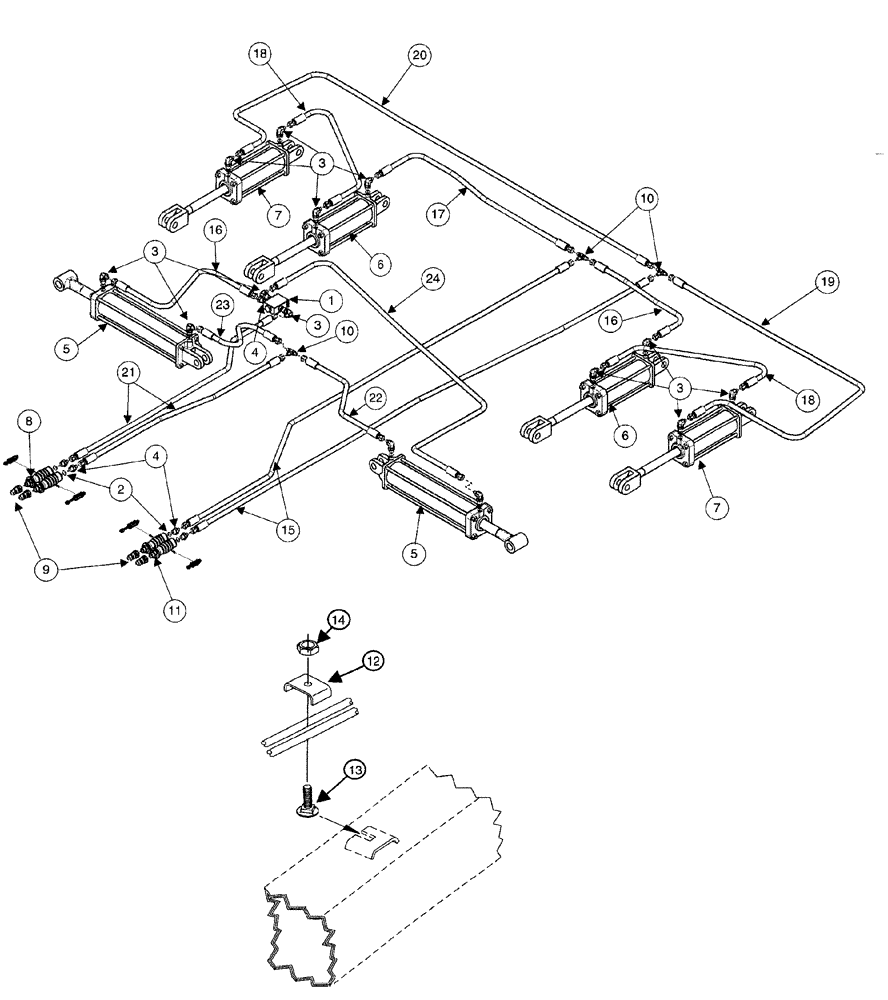

Запчасти Case IH 4400 (08-07) - HYDRAULIC ASSEMBLY - WITHOUT SINGLE POINT DEPTH CONTROL - 26 FOOT 3 INCH THROUGH 35 FOOT 3 INCH

1

178922A1

VALVE

Flow Divider/Combiner

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

19шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

14шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Adapter Straight, 9/16-18 flare x 3/4-16 inch O-ring boss

3шт.

5

376048A1

CYLINDER ASSY.

4-1/2 ID x 34 inch stroke

2шт.

6

386401A1

CYLINDER

4 ID x 8 inch stroke

2шт.

7

386400A1

CYLINDER

3-3/4 ID x 8 inch stroke

2шт.

7

87423766R

REMAN-HYD CYLINDER

3-3/4 x 8

2шт.

7

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

8

236879A1

GRIP

Hydra-Grip, Black

2шт.

9

1285718C2

QUICK MALE COUPLING

Male

4шт.

10

218-593

TEE,9/16"-18, 37 Degree

9/16-18 flare branch x flare x flare

3шт.

11

236878A1

GRIP

Hydra-Grip, Red

2шт.

12

06200125

HOSE CLAMP

1шт.

13

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4

1шт.

14

231-5146

FLANGE NUT,3/8"-16

1шт.

15

1284269C1

HYDRAULIC HOSE

3/8 x 360 inch, 3000 psi

2шт.

16

810570C2

HYDRAULIC HOSE

3/8 x 90 inch, 3000 psi

1шт.

17

1251944C1

HYDRAULIC HOSE

3/8 x 41 inch, 3000 psi

1шт.

18

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

3000 psi (26 foot machine)

2шт.

139519C2

HYDRAULIC HOSE

3/8 x 135 inch, 3000 psi (29 foot machine)

2шт.

129782C2

HYDRAULIC HOSE

3/8 x 165 inch, 3000 psi (35 foot machine)

2шт.

19

129759C2

HYDRAULIC HOSE

3/8 x 180 inch, 3000 psi (26 foot machine)

1шт.

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

3/8 x 230 inch, 3000 psi (29 foot machine)

1шт.

1284314C1

HYDRAULIC HOSE

3/8 x 235 inch, 3000 psi (35 foot machine)

1шт.

20

1284369C1

HYDRAULIC HOSE

3/8 x 130 inch, 3000 psi (26 foot machine)

1шт.

139655C2

HYDRAULIC HOSE

3/8 x 155 inch, 3000 psi (29 foot machine)

1шт.

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8 x 185 inch, 3000 psi (35 foot machine)

1шт.

21

1284263C1

HYDRAULIC HOSE

3/8 x 285 inch, 3000 psi (26, 29, & 35 foot machines)

2шт.

22

1301350C2

HYDRAULIC HOSE

3/8 x 120 inch, 3000 psi (26, 29, & 35 foot machines)

1шт.

23

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8 x 55 inch, 3000 psi (26, 29, & 35 foot machines)

1шт.

24

1284252C1

HYDRAULIC HOSE

3/8 x 140 inch, 3000 psi (26, 29, & 35 foot machines)

1шт.
