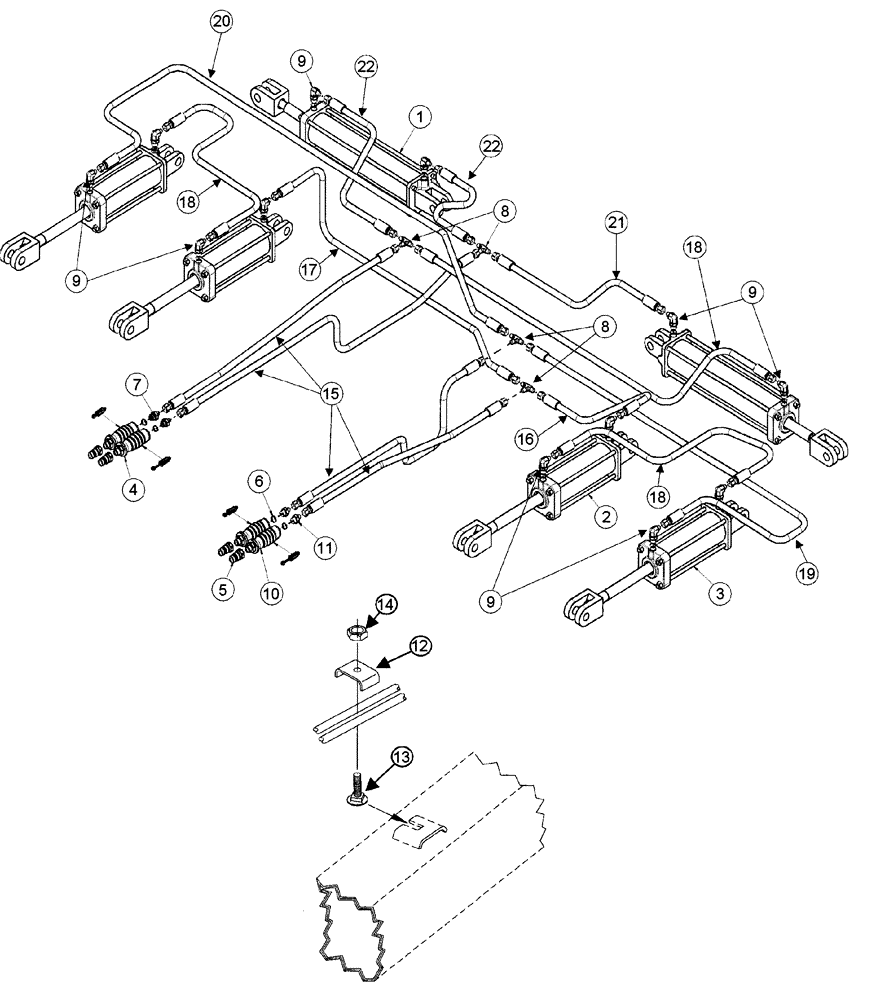

Запчасти Case IH 4400 (08-05) - HYDRAULIC ASSEMBLY - WITHOUT SINGLE POINT DEPTH CONTROL - 22 FOOT 11 INCH

1

397612A1

CYLINDER ASSY.

4-1/2 ID x 16 inch stroke

2шт.

2

386399A1

CYLINDER

3-1/2 ID x 8 inch stroke

2шт.

3

386398A1

CYLINDER

3-1/4 ID x 8 inch stroke

2шт.

4

236879A1

GRIP

Hydra-Grip, Black

2шт.

5

1285718C2

QUICK MALE COUPLING

Male

4шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

16шт.

7

1337104C1

FITTING

Assembly One-Way Orifice

2шт.

8

218-593

TEE,9/16"-18, 37 Degree

9/16-18 flare branch x flare x flare

4шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

12шт.

10

236878A1

GRIP

Hydra-Grip, Red

2шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

adapter straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

12

06200125

HOSE CLAMP

1шт.

13

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 1-1/2

1шт.

14

231-5146

FLANGE NUT,3/8"-16

1шт.

15

1284269C1

HYDRAULIC HOSE

3/8 x 360 inch, 3000 psi

4шт.

16

813006C2

HYDRAULIC HOSE

3/8 x 85 inch, 3000 psi

1шт.

17

393704R92

HYDRAULIC HOSE

3/8 x 31 inch, 3000 psi

1шт.

18

810570C2

HYDRAULIC HOSE

3/8 x 90 inch, 3000 psi

3шт.

19

1284298C1

HYDRAULIC HOSE

3/8 x 160 inch, 3000 psi

1шт.

20

129671C2

HYDRAULIC HOSE

3/8 x 105 inch, 3000 psi

1шт.

21

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

3000 psi

1шт.

22

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

3000 psi

2шт.
