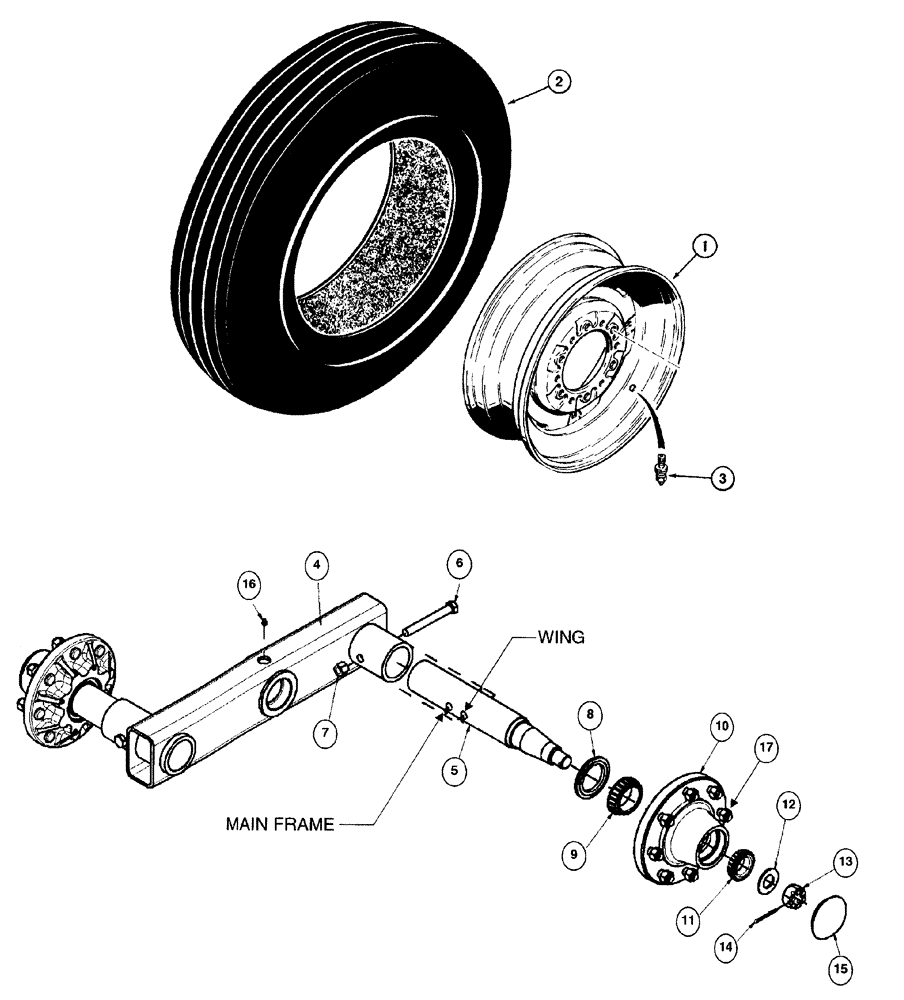

Запчасти Case IH 4400 (09-32) - WHEEL AND HUB - 8-BOLT HUB

1

10110281

WHEEL

15 x 8 LB, 8-bolt with valve guard

1шт.

10110274

WHEEL

15 x 10 LB, 8-bolt with valve guard

1шт.

For SN CCD0029300 thru CCD0029317: If item #1 is replaced on main frame, item #5 must be replaced. If item #5 is replaced on main frame, item #1 must be replaced.

1шт.

2

TIRE 9-1/2L-15, 8 ply, tubeless

1шт.

TIRE 12-1/2-15 FI (F), tubeless

1шт.

3

A38261

VALVE

rim tubeless

1шт.

4

340134A1

TUBE,304.8, 254 mm Length

assembly bogie, 2-3/4 inch spindle

1шт.

5

340093A1

AXLE SHAFT

spindle 8-bolt

2шт.

For SN CCD0029300 thru CCD0029317: If item #1 is replaced on main frame, item #5 must be replaced. If item #5 is replaced on main frame, item #1 must be replaced.

1шт.

6

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

7

231-42110

LOCK NUT,Hex, 5/8"-11, GB

Prevailing torque, grade 8 CAD nondirect

2шт.

8

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

oil assembly

2шт.

9

625742C91

BEARING

A taper roller, cone TM# JLM506849

2шт.

10

169293C11

HUB

guide wheel

2шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

A taper roller, cone TM# LM501349

2шт.

12

496-11119

WASHER,1 3/16" x 2 1/4" x .134" HDN

13/16 x 2-1/4 x 10 guage HDN ZND

2шт.

13

425-1318

SLOTTED NUT,1 1/8"-12, G5

hex slotted, 1-1/8-12UNF, grade 5 ZND

2шт.

14

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

15

560950R1

HUB CAP

hub

2шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

17

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

hub

8шт.

554480R1

WHEEL NUT

wheel

8шт.
