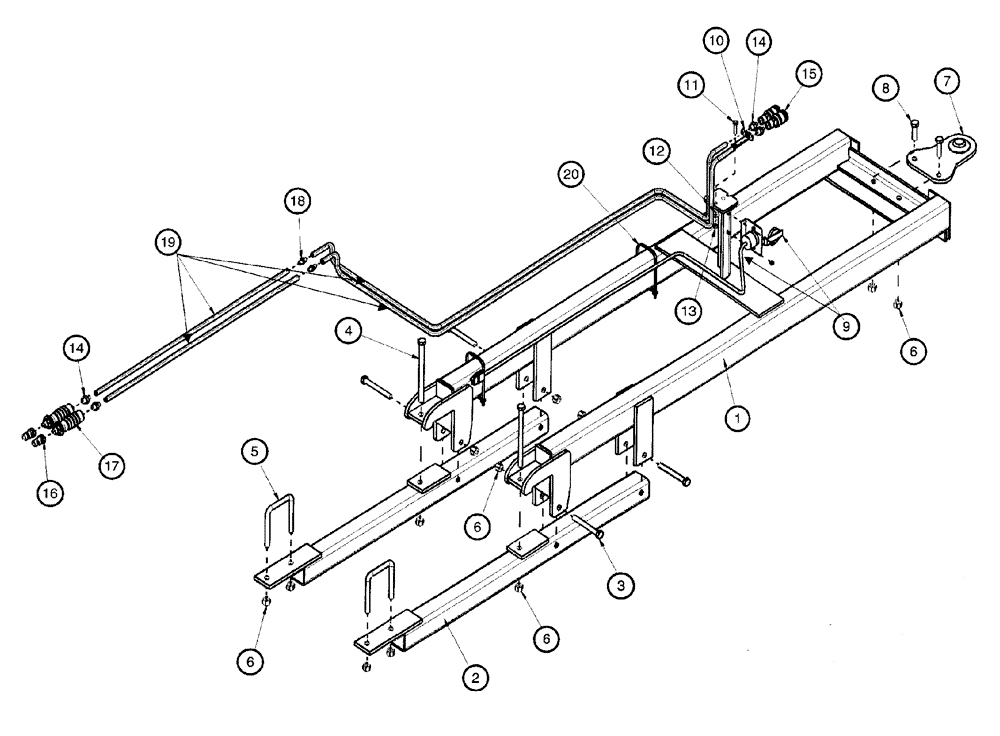

Запчасти Case IH 4400 (09-30) - REAR HITCH ASSEMBLY - LAYOUT

376869A1

HITCH

REAR ATTACHMENT HITCH KIT

1шт.

1

340351A1

HITCH ASSY

rear

1шт.

2

340352A1

SUPPORT ASSY.

rear hitch

2шт.

3

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

4

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

hex head, 5/8 x 9, grade 5 ZND

2шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U"

2шт.

6

231-41410

NUT,5/8"-11, GB

prevailing torque, grade 8 ZND direct

12шт.

7

06402935

PLATE

WELDMENT hitch

1шт.

8

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

bolt hex head, 5/8 x 2-1/4, grade 5 ZND

2шт.

9

27603410

KIT

HARNESS ASSEMBLY light, rear hitch

1шт.

10

25705012

COUPLING

frame breakaway

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

12

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

13

232-4116

NUT,3/8"-16, GC

CAD direct

1шт.

14

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

adapter straight, 9/16-18 flare x 3/4-16 inch O-ring boss

4шт.

15

A177478

COUPLING, QUICK, FEM

self-sealing quick connect female

2шт.

16

1285718C2

QUICK MALE COUPLING

male

2шт.

17

236880A1

GRIP

GRIP hose, hydra-grip, gray

2шт.

18

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION 37FL, 3/6 x 3/8

2шт.

19

1301350C2

HYDRAULIC HOSE

standard hydraulic, 3/8 x 120 inch, 3000 psi

4шт.

20

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP cable lock

1шт.
