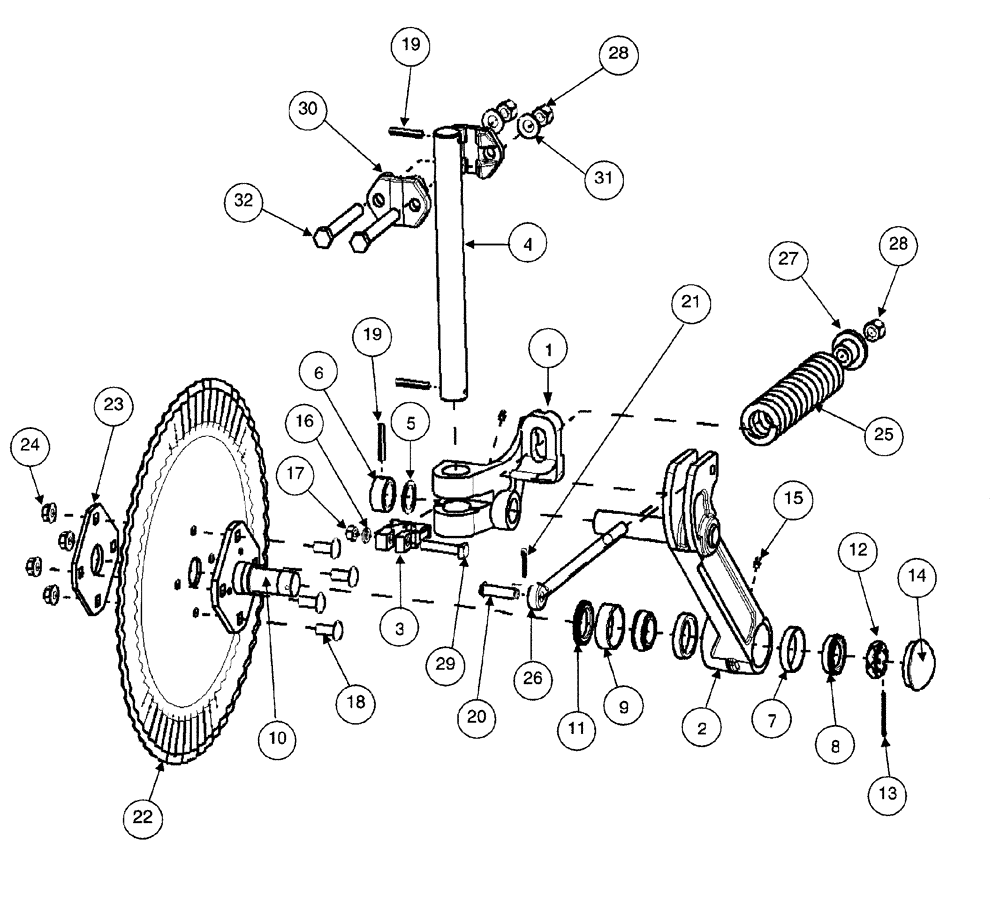

Запчасти Case IH 4400 (09-29) - CUSHION COULTER ASSEMBLY - LAYOUT

1

224068C1

SUPPORT

L & R coulter

1шт.

2

224274C1

LEVER

ARM ASSEMBLY 20 inch coulter

1шт.

3

112844C1

COLLAR CLAMP

stop

1шт.

4

396138A1

SHANK

coulter

1шт.

5

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

19/32 x 1-3/4 x 16 gauge CST ZND

1шт.

6

61570C1

FERRULE

COLLAR coulter arm

1шт.

7

651817R1

BEARING CUP

taper roller, cup - TM# LM67010

2шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

A taper roller, cone - TM# LM67048

2шт.

9

101530A1

SLEEVE

wear

1шт.

10

224063C1

HUB

SPINDLE ASSEMBLY

1шт.

11

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil assembly

1шт.

12

519259R1

NUT hex slotted jam, 1-1/4-12UNF, grade 5 ZND

1шт.

13

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

14

224066C1

HUB CAP

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

16

492-11044

LOCK WASHER,7/16"

1шт.

17

425-107

NUT,7/16"-14, G5

1шт.

18

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

bolt round head short, 1/2 x 1-1/4, grade 5 ZND

4шт.

19

438-32032

PIN,5/16" x 2", Coiled

5/16" x 2", Coiled

3шт.

20

439-1834

HEADED PIN,1/2" x 2 1/8"

headed, 1/2 x 2-1/8 Gr2 ZND

1шт.

21

432-1216

COTTER PIN,3/16" x 1"

1шт.

22

28341R1

PLOW DISC

COULTER 20-1/4 inch ripple

1шт.

23

224067C1

LARGE PLATE

PLATE, LARGE support outside

1шт.

24

231-5348

FLANGE NUT,Flg, 1/2"-13

Prevailing torque

4шт.

25

487698R1

SPRING

generic

1шт.

26

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, EYE

1шт.

27

487697R1

CENTERING RING

spacer, spring plug

1шт.

28

231-41110

LOCK NUT,5/8"-11, GB

Prevailing torque, 5/8, grade 8 CAD direct

3шт.

29

18929R1

BOLT,7/16" - 14 x 2 1/2", Gr 2

bolt square head, 7/16-14 x 2-1/2 Gr2 ZND

1шт.

30

524492R1

CLAMP

coultler cap

2шт.

31

495-11066

WASHER,5/8", SAE

21/32 x 15/16 x 61/64 inch CST ZND

2шт.

32

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.
