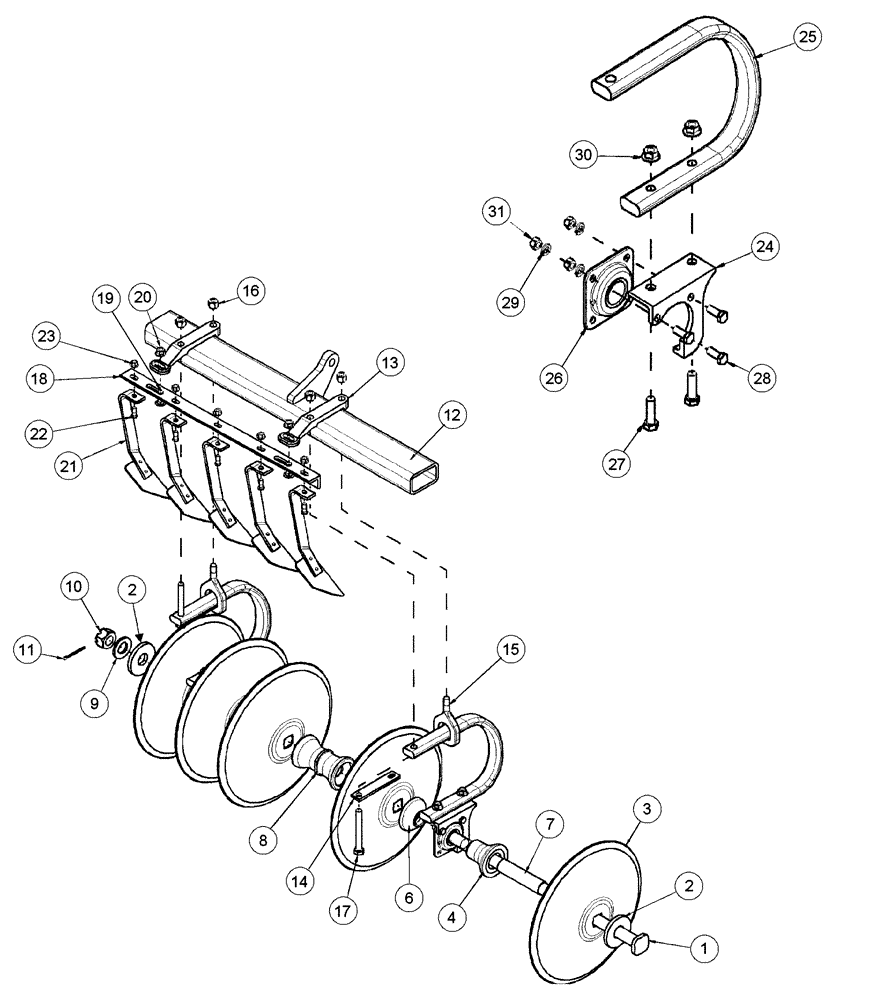

Запчасти Case IH 4400 (09-27) - GANG ASSEMBLY LAYOUT - 7-1/2 INCH SPACING

1

1263613C1

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

arbor, 1-1/2 inch round (18 foot & 22 foot 11 inch mainframe)

1шт.

1986246C4

SPECIAL BOLT

arbor, 1-1/2 inch round (26 foot 3 inch thru 35 foot 3 inch mainframe)

1шт.

1284115C3

SPECIAL BOLT,Arbor, 1-1/2" - 6 x 845mm

arbor, 1-1/2 inch round (18 foot wing)

1шт.

1263613C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

arbor, 1-1/2 inch round (23 foot wing)

1шт.

1263614C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

arbor, 1-1/2 inch round (26 foot wing)

1шт.

1284116C3

SPECIAL BOLT,Arbor, 1-1/2" - 6 x 1052mm

arbor, 1-1/2 inch round (30 foot wing, outside)

1шт.

1263536C5

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

arbor, 1-1/2 inch round (30 foot wing, inside)

1шт.

1263613C1

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

arbor, 1-1/2 inch round (35 foot wing)

1шт.

2

139773C1

WASHER

WASHER end

2шт.

3

31230R1

DISC

18 inch flat center

1шт.

30999R1

DISC

20 inch flat center

1шт.

228249A1

DISC

20 inch flat center, #11 Edge

1шт.

4

101191C1

SPOOL

bearing, 7-1/2 inch spacing

2шт.

6

101189C1

SPOOL

SPINDLE SPOOL bearing, 7-1/2 inch spacing

2шт.

7

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

arbor bolt support

2шт.

8

1263631C1

SPOOL

spacing, 7-1/2 inch

2шт.

9

1284383C1

WASHER

arbor bolt

1шт.

10

425-1224

SLOTTED NUT,1 1/2"-6, G5

hex slotted, 1-1/2NC, grade 5 ZND

1шт.

11

432-1648

COTTER PIN,1/4" x 3"

1/4" x 3"

1шт.

12

396226A1

TUBE

assembly LH 18 foot & 22 foot 11 inch mainframe

1шт.

396227A1

TUBE

assembly RH 18 foot & 22 foot 11 inch mainframe

1шт.

396232A1

TUBE

assembly LH 26 foot 3 inch thru 35 foot 3 inch mainframe

1шт.

396233A1

TUBE

assembly RH 26 foot 3 inch thru 35 foot 3 inch mainframe

1шт.

396228A1

TUBE

assembly LH 18 foot wing

1шт.

396229A1

TUBE

assembly RH 18 foot wing

1шт.

396230A1

TUBE

assembly LH 23 foot wing

1шт.

396231A1

TUBE

assembly RH 23 foot wing

1шт.

396234A1

TUBE

assembly LH 26 foot wing

1шт.

396235A1

TUBE

assembly RH 26 foot wing

1шт.

396236A1

TUBE

assembly LH 30 foot wing

1шт.

396237A1

TUBE

assembly RH 30 foot wing

1шт.

396238A1

TUBE

assembly LH 35 foot wing

1шт.

396239A1

TUBE

assembly RH 35 foot wing

1шт.

13

231649A1

SUPPORT

scraper angle

2шт.

14

1978954C1

LARGE PLATE

PLATE, LARGE bar bolt retainer

2шт.

15

100514A1

BOLT

BOLT, EYE spring

2шт.

16

231-42112

NUT,3/4"-10, GB

prevailing torque, 3/4, grade 8 CAD nondirect

4шт.

17

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex head, 3/4 x 6, grade 5 ZND

2шт.

18

121138C1

ANGLE

scraper, 18 foot & 22 foot 11 inch mainframe

1шт.

1986449C1

ANGLE

scraper, 26 foot 3 inch thru 35 foot 3 inch mainframe

1шт.

121143C1

ANGLE

scraper, 18 foot wing

1шт.

121138C1

ANGLE

scraper, 23 foot wing

1шт.

472574R4

ANGLE

scraper, 26 foot wing

1шт.

121156C2

ANGLE

scraper, 30 foot wing, outside

1шт.

121173C2

ANGLE

scraper, 30 foot wing, inside

1шт.

121138C1

ANGLE

scraper, 35 foot wing

1шт.

19

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

round head, 5/8 x 1-3/4, grade 5 ZND

2шт.

20

1256884C1

NUT

prevailing torque FLG, 5/8UNC CAD

2шт.

21

121119C92

SCRAPER

BRACKER ASSEMBLY LH

5шт.

121120C92

SCRAPER

BRACKER ASSEMBLY RH

5шт.

22

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT special

5шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

24

147873C1

SUPPORT

BEARING (LH)

1шт.

24

147874C1

SUPPORT

BEARING (RH)

1шт.

25

147763C1

SPRING

bearing standard LH

1шт.

26

ST491A

BALL BEARING,45mm ID

ball

1шт.

26

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

27

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

28

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

30

231-53410

FLANGE NUT,Flg, 5/8"-11

2шт.

31

425-108

NUT,1/2" - 13, Gr 5

3шт.
