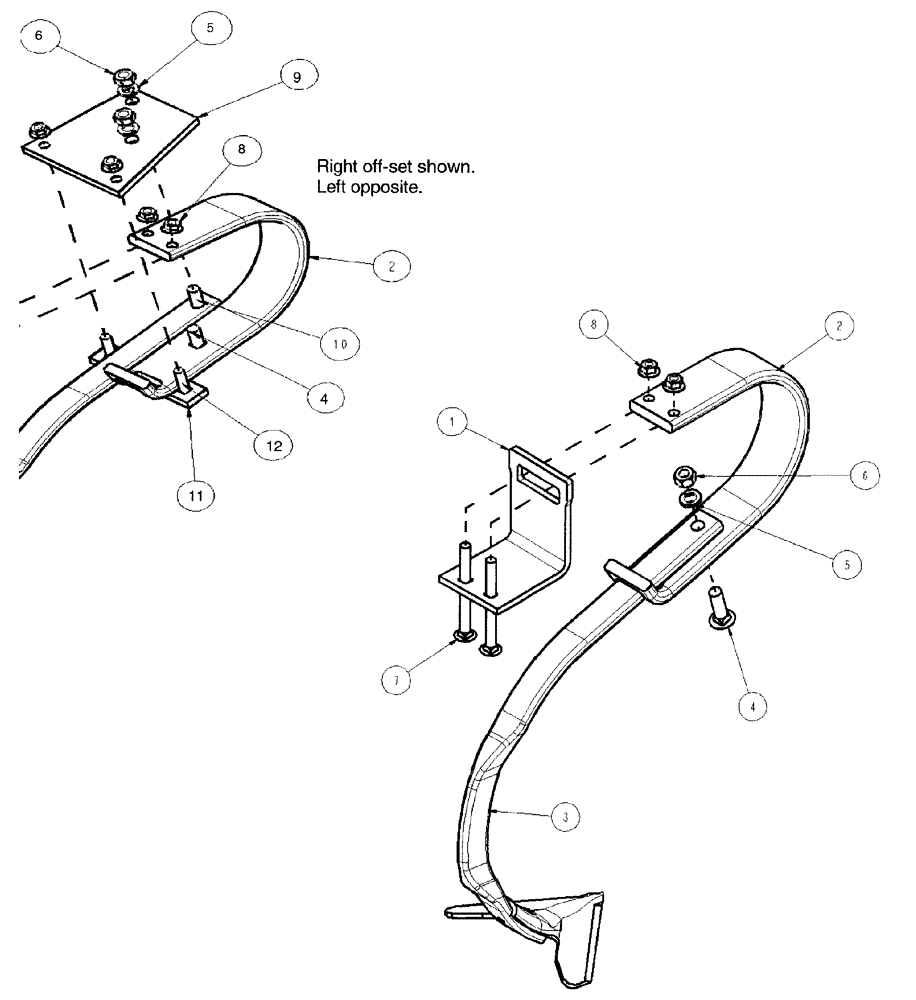

Запчасти Case IH 4400 (09-25) - SHANK ASSEMBLY - VIBRA EDGE

1

348532A1

CLAMP

shank

1шт.

2

337720A1

BAR

clamp spring S-tine

1шт.

3

337721A1

SHANK

shank forged cultivator, haven

1шт.

4

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

round head, 5/8 x 2, grade 5 ZND

1шт.

5

492-11062

BEARING WASHER,5/8"

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

433-888

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5

bolt round head, 1/2 x 5-1/2, grade 5 ZND

2шт.

8

232-5318

FLANGE NUT,Flg, 1/2"-13

4шт.

9

348533A1

BAR

tine mounting

1шт.

10

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

11

348739A1

STRAP

tine mounting

1шт.

12

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

2шт.
