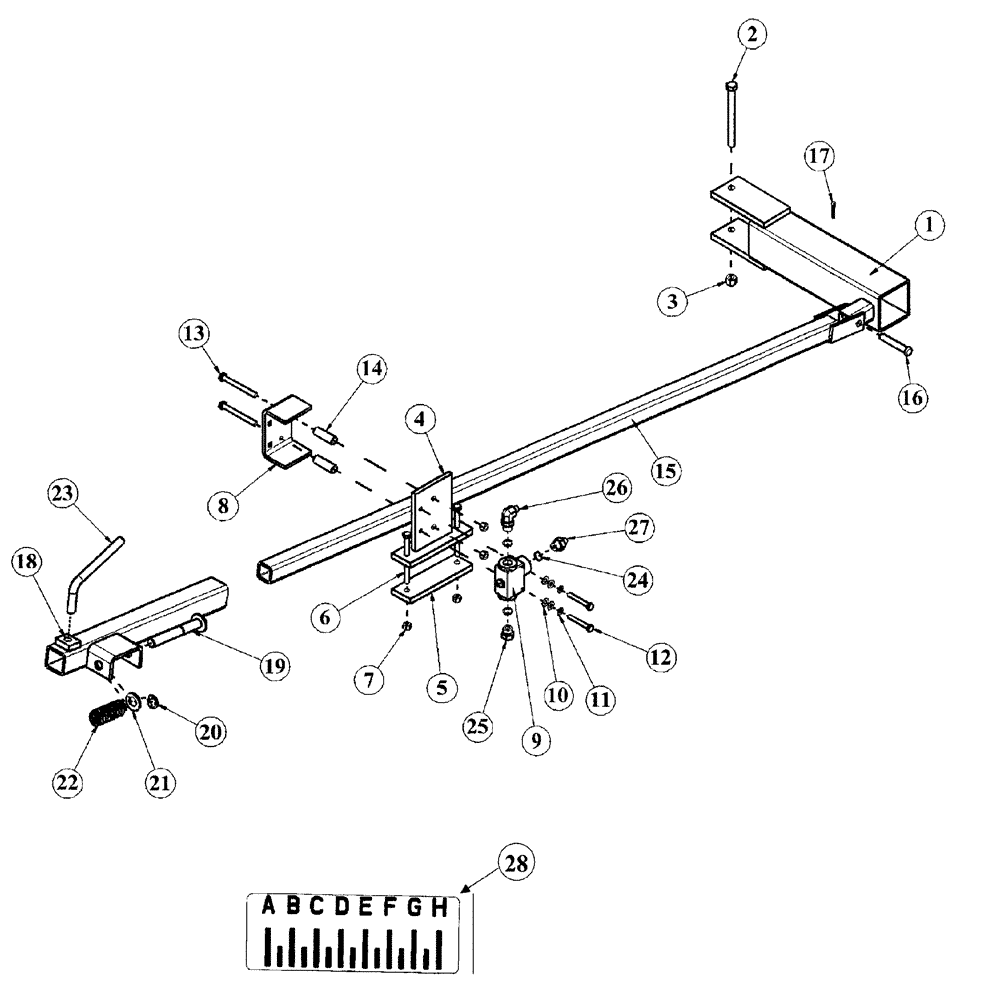

Запчасти Case IH 4400 (09-20) - DEPTH CONTROL ASSEMBLY - SINGLE POINT - 18 FOOT THROUGH 22 FOOT 3 INCH MACHINE

1

396142A1

TUBE

assembly depth control support

1шт.

2

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

hex head, 1/2 x 5-1/2, grade 5 ZND

1шт.

3

231-4148

NUT,1/2"-13, GB

prevailing torque, 1/2 inch

1шт.

4

340133A1

BRACKET

assembly depth valve mounting

1шт.

5

340148A1

BAR

valve mount

1шт.

6

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex head, 3/8 x 4-1/2, grade 5 ZND

2шт.

7

231-4146

NUT,3/8"-16, GB

Prevailing torque, 3/8, grade 8 ZND

4шт.

8

333026A1

BRACKET

depth control

1шт.

9

396150A1

VALVE, CONTROL

depth

1шт.

10

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

11

492-11031

LOCK WASHER,5/16"

2шт.

12

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

13

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex head,3/8 x 3-1/2, grade 5 ZND

2шт.

14

155588C1

SPACER,3/8" X-Strng Pipe x 2"

pipe, 3/8 x2 inch PLN

2шт.

15

396147A1

TUBE

ASSEMBLY depth control

1шт.

16

439-5848

HEADED PIN,1/2" x 3", G5

headed, 1/2 x 3, grade 5 ZND

1шт.

17

432-1216

COTTER PIN,3/16" x 1"

1шт.

18

396148A1

TUBE

BAR valve mount

1шт.

19

396153A1

PIN

ASSEMBLY valve actuating

1шт.

20

100-3375

SNAP RING,#75, .574" Dia, E-Type

1шт.

21

495-11081

WASHER,3/4", SAE

1шт.

22

396152A1

COMPRESSION SPRING

1шт.

23

393651A1

HANDLE

single point delth control

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

25

214389

PLUG,3/4" - 16 ORB

O-ring, male, 1/2" OD Tube

1шт.

26

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

1шт.

27

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

28

1978881C1

DECAL

depth control

1шт.
