(09-18) - TURNBUCKLE ASSEMBLY - 18 FOOT THROUGH 22 FOOT 11 INCH MACHINE

Запчасти Case IH 4400 (09-18) - TURNBUCKLE ASSEMBLY - 18 FOOT THROUGH 22 FOOT 11 INCH MACHINE

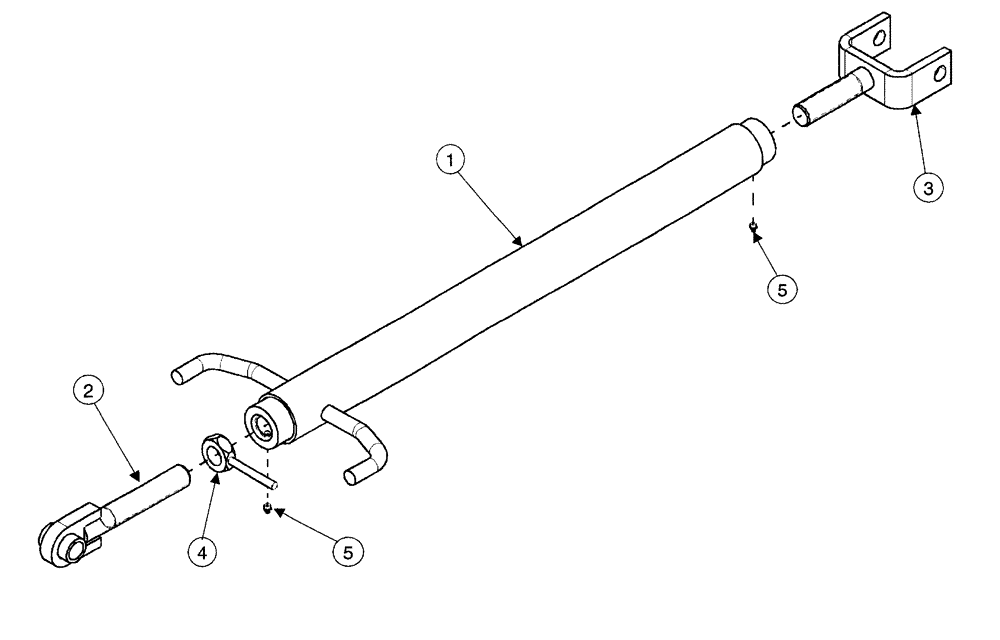

Схема запчастей Case IH 4400 - (09-18) - TURNBUCKLE ASSEMBLY - 18 FOOT THROUGH 22 FOOT 11 INCH MACHINE
5
2
3
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

376076A1

SUPPORT ASSY.

TRUSS turnbuckle

1шт.

2

340296A1

LUG

ASSEMBLY RH threaded

1шт.

3

376073A1

CLEVIS

LH thread, 1-1/2-6NC

1шт.

4

340299A1

JAM NUT

jam

1шт.

5

219-86

LUBE NIPPLE,1/8" NPTF

Special taper drive thread

2шт.
