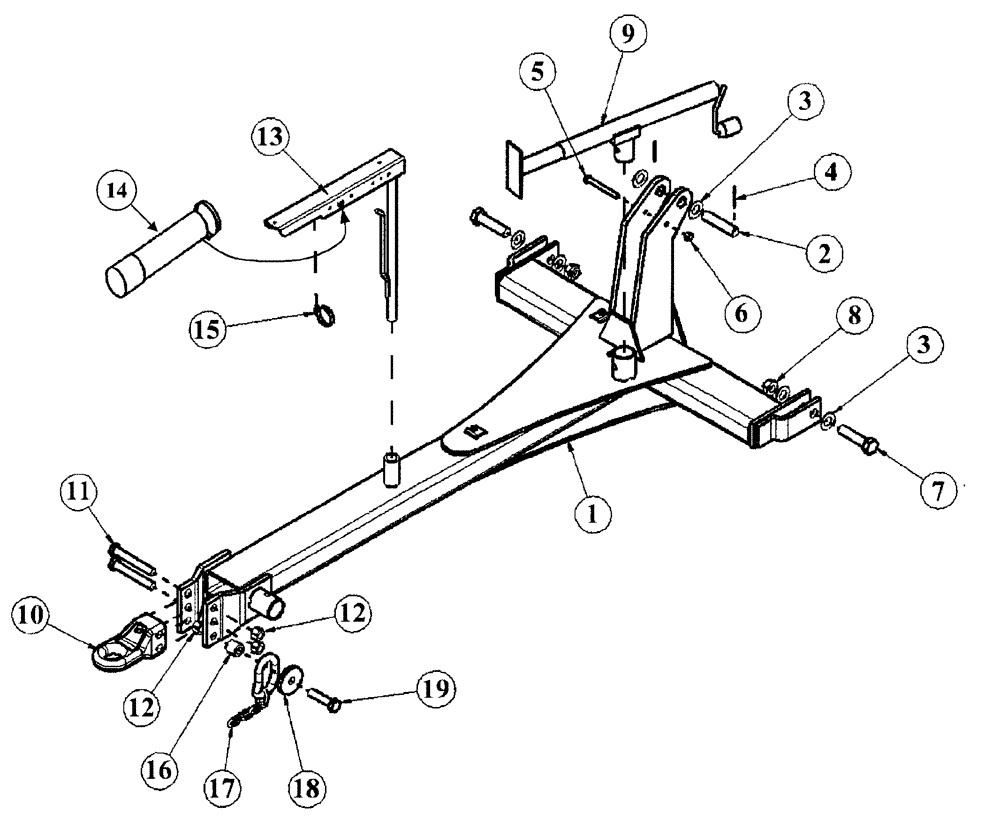

Запчасти Case IH 4400 (09-15) - FRONT HITCH ASSEMBLY - 18 FOOT THROUGH 22 FOOT 11 INCH LAYOUT

1

340331A1

HITCH ASSEMBLY 11 foot mainframe

1шт.

2

376063A1

HITCH PIN

truss

1шт.

3

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

1-3/8 x 2-1/2 x 5/32 inch HDN ZND

6шт.

4

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

2шт.

5

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex head, 5/8 x 5-1/2, grade 5 ZND

1шт.

6

231-41410

NUT,5/8"-11, GB

prevailing torque, grade 8 ZND

1шт.

7

252079A1

BOLT

hex head, 1-1/4 x 5, grade 8 PHC

2шт.

8

28748R1

LOCK NUT,1 1/4"-7, G5

prevailing torque, nylon insert, heavy thin, 1-1/4NC ZND

2шт.

9

121558A1

JACK

9 inch handle

1шт.

10

362933A1

HITCH

assembly category 3

1шт.

11

426-16112

BOLT,Hex, 1" - 8 x 7", Gr 8

hex head, 1 x 7, grade 8 ZN

2шт.

12

231-41416

NUT,1"-8, GB

prevailing torque, 1 inch, grade 8 ZND

3шт.

13

05302150

STAND

WELDMENT hose mount

1шт.

14

30026030

TUBE

CANISTER manual

1шт.

6-24190

MANUAL operators

1шт.

15

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

hose, type F, #48

1шт.

16

340324A1

BUSHING

safety chain

1шт.

17

63506C3

CHAIN (AG)

assembly safety

1шт.

18

06400065

WASHER

heavy

1шт.

19

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

bolt hex head, 1 x 4, grade 5 ZND

1шт.
