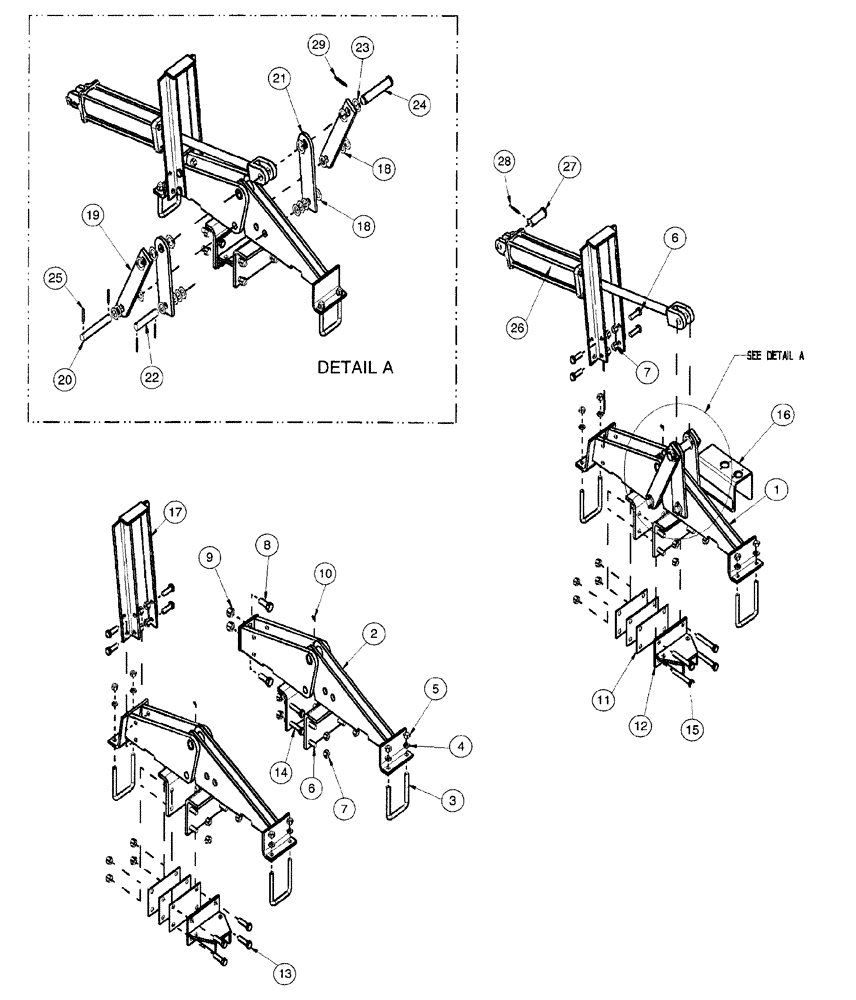

Запчасти Case IH 4400 (09-13) - HINGE ASSEMBLY - FLAT-FOLD - RIGID - 18 FOOT MACHINE

1

409784A1

HINGE

assembly flat fold

4шт.

2

340366A1

HINGE

assembly flat fold

2шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U"

10шт.

4

492-11062

BEARING WASHER,5/8"

20шт.

5

425-1010

NUT,5/8"-11, G5

20шт.

6

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

40шт.

7

231-41410

NUT,5/8"-11, GB

prevailing torque, grade 8 ZND

64шт.

8

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

9

231-41412

NUT,3/4"-10, GB

prevailing torque, 3/4, grade 8 ZND

4шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

11

340378A1

SHIM

PLATE shim

1шт.

12

142370A1

STOP

assembly rigid wing

4шт.

13

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

bolt hex head, 5/8 x 2-1/4, grade 5 ZND

8шт.

14

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

hex head, 5/8 x 4, grade 5 ZND

8шт.

15

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

16

411673A1

BRACKET

assembly light, LH

1шт.

411674A1

BRACKET

assembly light, RH

1шт.

17

183133A2

STAND

wing

4шт.

18

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

28шт.

19

189248A1

BAR

lift lever

4шт.

20

811962C1

PIN

2шт.

21

186864A1

BAR

4шт.

22

854527C1

PIN

2шт.

23

495-81203

WASHER,1 9/32" x 2" x .120"

19/32 x 2 x 11 gauge ZND

12шт.

24

427-20625

CLEVIS PIN,31.75mm OD x 158.75mm L

1-1/4 x 6-1/4 inch ZND

2шт.

25

438-31636

PIN,1/4" x 2 1/4", Coiled

1/4" x 2 1/4", Coiled

8шт.

26

397612A1

CYLINDER ASSY.

3-1/2 ID x 16 inch stroke

2шт.

27

427-20350

CLEVIS PIN,31.75mm OD x 88.9mm L

clevis, 1-1/4 x 3-1/2 inch ZND

2шт.

28

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

29

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

2шт.
