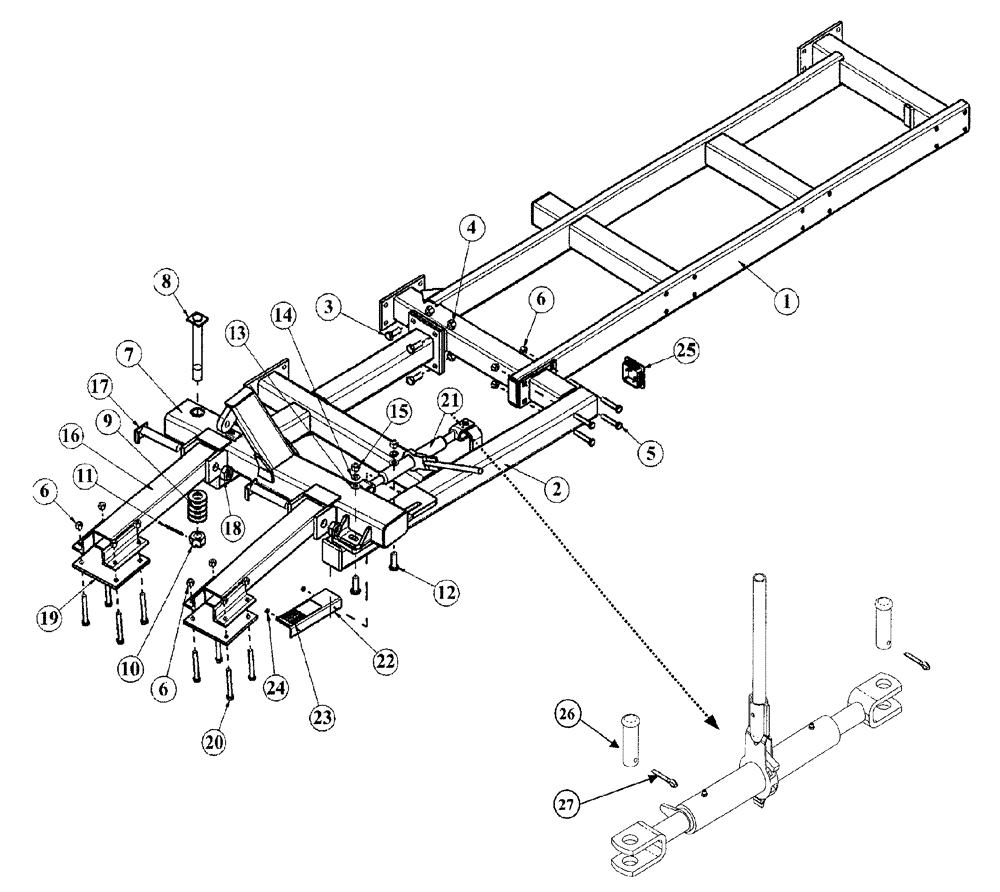

Запчасти Case IH 4400 (09-03) - 3 FOOT WING - 18 FOOT MACHINE LAYOUT

1

340316A1

FRAME ASSY

3 foot wing

2шт.

2

340342A1

FRAME ASSY

3 foot, LH front

1шт.

340343A1

FRAME ASSY

3 foot, RH front

1шт.

3

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

4

231-41412

NUT,3/4"-10, GB

prevailing torque, 3/4, grade 8 ZND

4шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

6

231-41410

NUT,5/8"-11, GB

prevailing torque, grade 8 ZND

12шт.

7

340346A1

TUBE,968 mm Length

assembly 3 foot LH gang pivot

1шт.

340347A1

TUBE,968 mm Length

assembly 3 foot RH gang pivot

1шт.

8

340137A1

PIVOT PIN

assembly gang pivot

1шт.

9

495-11162

WASHER,1 1/2" x 3" x .165"

1-5/8 x 3 x 8 gauge CT ZND

5шт.

10

425-1224

SLOTTED NUT,1 1/2"-6, G5

hex slotted, 1-1/2NC, grade 5 ZND

1шт.

11

432-1648

COTTER PIN,1/4" x 3"

1/4" x 3"

1шт.

12

416-1240

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2 1/2", Gr 8

round head, short, 3/4 x 2-1/2, grade 8 ZND

2шт.

13

495-11081

WASHER,3/4", SAE

2шт.

14

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

15

425-1012

NUT,3/4"-10, G5

2шт.

16

1969012C1

ARM ASSY.

gang

2шт.

17

60141C1

PIN

hitch

2шт.

18

28748R1

LOCK NUT,1 1/4"-7, G5

prevailing torque, nylon insert, heavy thin, 1-1/4NC ZND

2шт.

19

340334A1

PLATE

support

2шт.

20

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

8шт.

21

1256436C1

JACK

turnbuckle ratcheting (NSS)

1шт.

22

340033A1

BRACKET

decal, backing plate

1шт.

23

376091A1

DECAL

3 foot wing gang angle

1шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

25

357917A1

INSERT

cap tube end

4шт.

26

439-51644

HEADED PIN,1" x 2 3/4", G5

2шт.

27

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.
