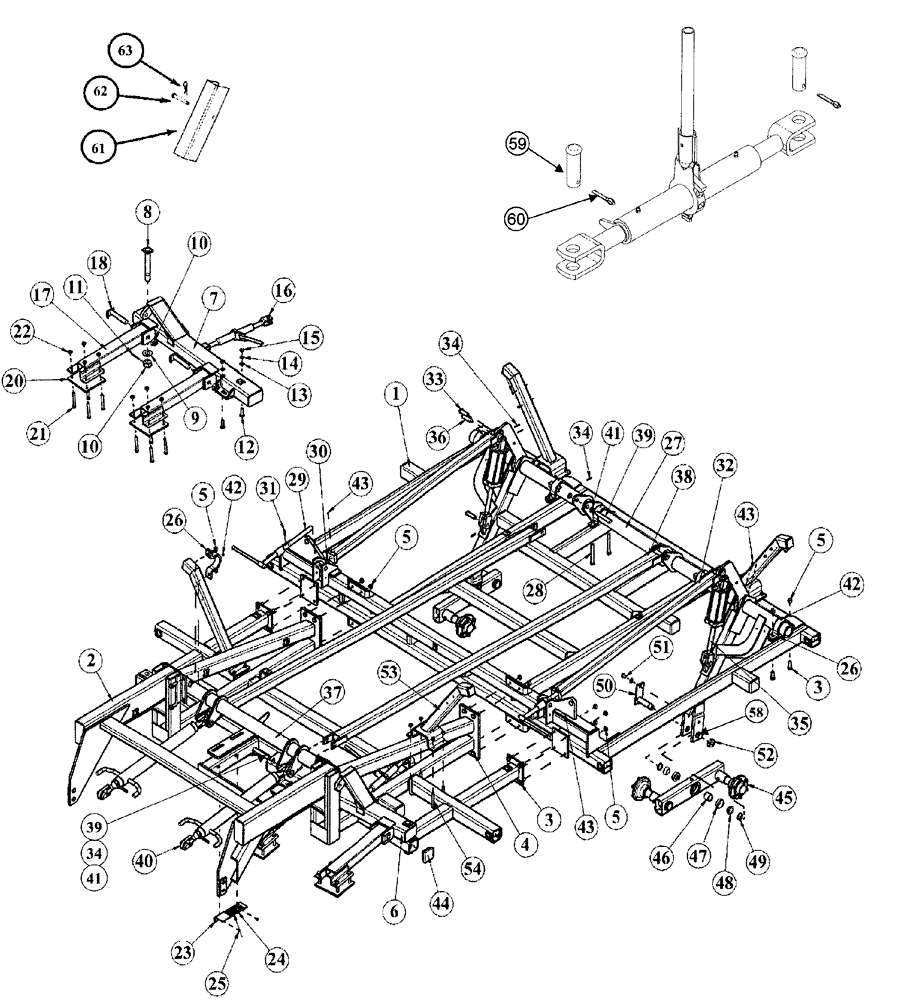

Запчасти Case IH 4400 (09-02) - MAINFRAME - 12 FOOT LAYOUT - 26 FOOT 3 INCH THROUGH 35 FOOT 3 INCH

1

340121A1

FRAME assembly rear mainframe

1шт.

2

340172A1

FRAME ASSY

front mainframe

1шт.

3

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

20шт.

4

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

5

231-41412

NUT,3/4"-10, GB

prevailing torque, 3/4, grade 8 ZND

32шт.

6

340171A1

TUBE,1111, 179 mm Length

assembly LH mainframe gang

1шт.

7

340170A1

TUBE,1111, 179 mm Length

assembly RH mainframe gang

1шт.

8

340137A1

PIVOT PIN

assembly gang

2шт.

9

495-11162

WASHER,1 1/2" x 3" x .165"

1-5/8 x 3 x 8 gauge ZND

2шт.

10

425-1224

SLOTTED NUT,1 1/2"-6, G5

hex slotted, 1-1/2NC, grade 5 ZND

2шт.

11

432-1648

COTTER PIN,1/4" x 3"

1/4" x 3"

2шт.

12

416-1240

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2 1/2", Gr 8

round head short, 3/4 x 2-1/2, grade 8 ZND

4шт.

13

495-11081

WASHER,3/4", SAE

6шт.

14

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

15

425-1012

NUT,3/4"-10, G5

4шт.

16

1256436C1

JACK

turnbubkle ratcheting

2шт.

17

1969012C1

ARM ASSY.

gang

4шт.

18

60141C1

PIN

hitch

4шт.

19

28748R1

LOCK NUT,1 1/4"-7, G5

prevailing torque, nylon insert, heavy thin, 1-1/4NC ZND

4шт.

20

340334A1

PLATE

support

4шт.

21

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

16шт.

22

231-41410

NUT,5/8"-11, GB

prevailing torque, 1 inch, grade 8 ZND

32шт.

23

340033A1

BRACKET

decal backing plate

2шт.

24

340257A1

DECAL

mainframe gang angle

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

26

97786C2

STRAP

cap rock shaft

8шт.

27

340122A1

ROCKSHAFT

ASSEMBLY 12 foot mainframe

1шт.

28

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex head, 3/4 x 6-1/2, grade 5 ZND

4шт.

29

340092A1

STUD

ASSEMBLY truss rod

2шт.

30

495-81203

WASHER,1 9/32" x 2" x .120"

19/32 x 2 x 11 gauge ZND

2шт.

31

438-32432

PIN,9.53mm OD x 50.8mm L

3/8" x 2", Coiled

2шт.

32

340119A1

TUBE,1886 mm Length

ASSEMBLY mainframe truss

2шт.

33

439-51648

HEADED PIN,1" x 3"

1 x 3, grade 5 ZND

2шт.

34

432-1624

COTTER PIN,1/4" x 1 1/2"

14шт.

35

386401A1

CYLINDER

tie rod

2шт.

36

810751C1

PIN

1 x 3-1/2 ZND

4шт.

37

376017A1

ROCKSHAFT

ASSEMBLY leveling truss

1шт.

38

340120A1

TUBE,3733.8 mm Length

ASSEMBLY leveling truss

2шт.

39

340053A1

PIN

4шт.

40

340259A1

TURNBUCKLE ASSEMBLY

2шт.

41

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

8шт.

42

219-86

LUBE NIPPLE,1/8" NPTF

Straight, self tapping

8шт.

43

219-87

LUBE NIPPLE,1/4" - 28 NPTF

8шт.

44

357917A1

INSERT

CAP tube end

8шт.

45

AXLE assembly 6-bolt bogie (See Wheel and Hub Pages)

1шт.

AXLE assembly 8-bolt bogie (See Wheel and Hub Pages)

1шт.

46

107921A2

TUBE

spacer

2шт.

47

453012R1

BEARING CUP

4шт.

48

8050528

ROLLER BEARING

4шт.

49

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer

4шт.

50

103069A2

PIN

weldment

2шт.

51

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

bolt hex head, 3/4 x 1, grade 5 ZND

2шт.

52

131-1419

NUT,1 1/2"-6, Thin

prevailing torque, thin, 1-1/2 ZND

2шт.

53

340136A1

TUBE

assembly wing stop

4шт.

54

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U"

8шт.

55

340255A1

BRACKET

assembly safety lights

2шт.

56

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex head, 3/8 x 4, grade 5 ZND

4шт.

57

231-4146

NUT,3/8"-16, GB

Prevailing torque, 3/8, grade 8 ZND

4шт.

58

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

tension

4шт.

59

439-51644

HEADED PIN,1" x 2 3/4", G5

2шт.

60

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

61

1337050C1

CHANNEL

hydraulic lockout

2шт.

62

439-1544

HEADED PIN,5/16" x 2 3/4"

headed, 5/16 x 2-3/4, grade 2 ZND

2шт.

63

1978737C1

COTTER PIN,Int, 1/8" x 49mm

hair INT 1/8 inch ZND

2шт.
