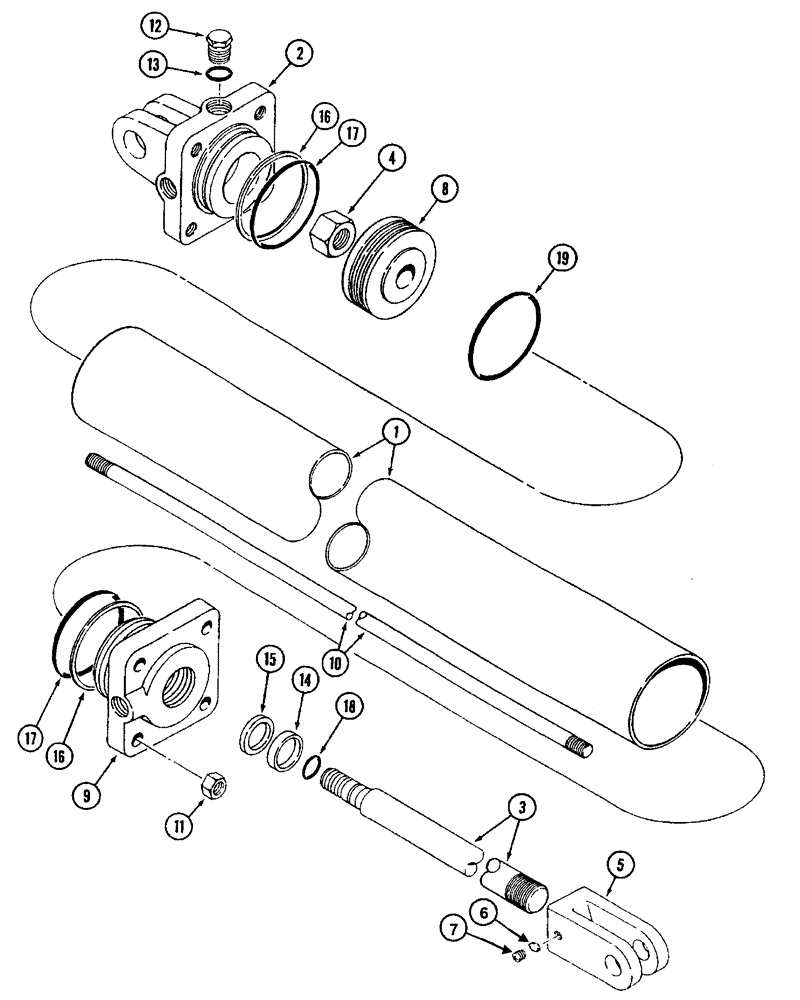

Запчасти Case IH 4400 (08-14) - CYLINDER ASSEMBLY - 22 FOOT 11 INCH WING FOLD - 381695A1

381695A1

CYLINDER

assembly 4-1/2 inch ID x 16 inch stroke

1шт.

1

NSS

NOT SOLD SEPARAT

tube cylinder

1шт.

2

118511A1

HEAD (CYLINDER)

with two ports, rear

1шт.

3

383493A1

PISTON ROD

1шт.

4

232-46316

NUT,1"-14, GC

1шт.

5

145240C1

CLEVIS,1 -1/2" - 12

rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad insert, nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8NC x 3/8 inch, cup point

1шт.

8

1954189C1

JACK PISTON

cylinder

1шт.

9

383494A1

CYLINDER BLOCK

head front

1шт.

10

92873C1

THREADED ROD,3/4" - 10 x 21.812"

bolt tie, cylinder retaining

4шт.

11

425-1012

NUT,3/4"-10, G5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

14

NSS

NOT SOLD SEPARAT

wiper piston rod

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

15

NSS

NOT SOLD SEPARAT

seal piston rod

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

16

NSS

NOT SOLD SEPARAT

ring backup, end cap and head O-ring

2шт.

Part of Seal Kit P/N 1954188C1

1шт.

17

NSS

NOT SOLD SEPARAT

o-ring end cap and head

2шт.

Part of Seal Kit P/N 1954188C1

1шт.

18

NSS

NOT SOLD SEPARAT

seal piston

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

19

NSS

NOT SOLD SEPARAT

o-ring piston

1шт.

Part of Seal Kit P/N 1954188C1

1шт.

1954188C1

SEAL KIT

seal, Includes: Refs. 13, 14, 15, 16, 17, 18, and 19

1шт.
