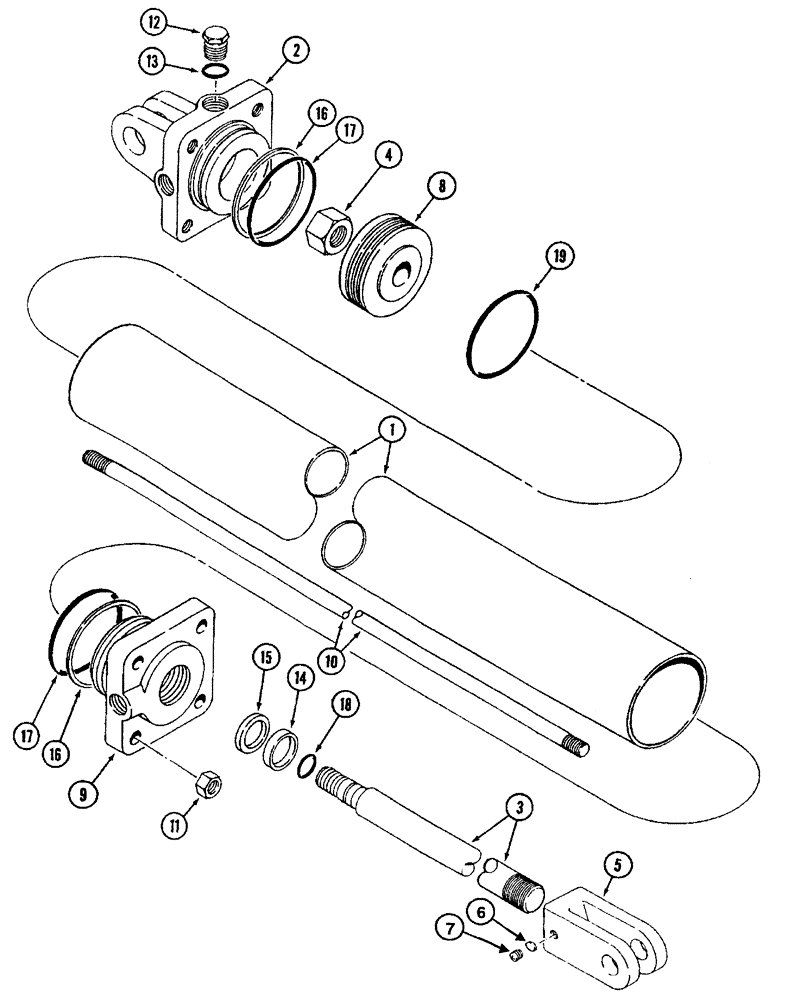

Запчасти Case IH 4400 (08-12) - CYLINDER ASSEMBLY - 18 FOOT WING FOLD - 397612A1

397612A1

CYLINDER ASSY.

3-1/2 inch ID x 16 inch stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, Cylinder

1шт.

2

1282334C1

HEAD

Cylinder, with Two Ports, Rear

1шт.

3

397644A1

PISTON ROD

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

145240C1

CLEVIS,1 -1/2" - 12

Rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

Pad Insert, Nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Set, Hex Socket Headless, 3/8 x 3/8, cup point

1шт.

8

85179C1

PISTON

Cylinder

1шт.

9

386764A1

CYLINDER BLOCK

Head, Front

1шт.

10

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

Bolt Tie, Cylinder Retaining

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, Backup, End-Cap and Head O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

RING, Wiper, Piston Rod

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL, Piston Rod

1шт.

16

NSS

NOT SOLD SEPARAT

RING Backup, End Cap and Head O-Ring

2шт.

17

NSS

NOT SOLD SEPARAT

O-RING, End Cap and Head

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL, Piston Rod

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING, Piston

1шт.

79978C2

SEAL KIT

Inc. 13 - 19

1шт.
