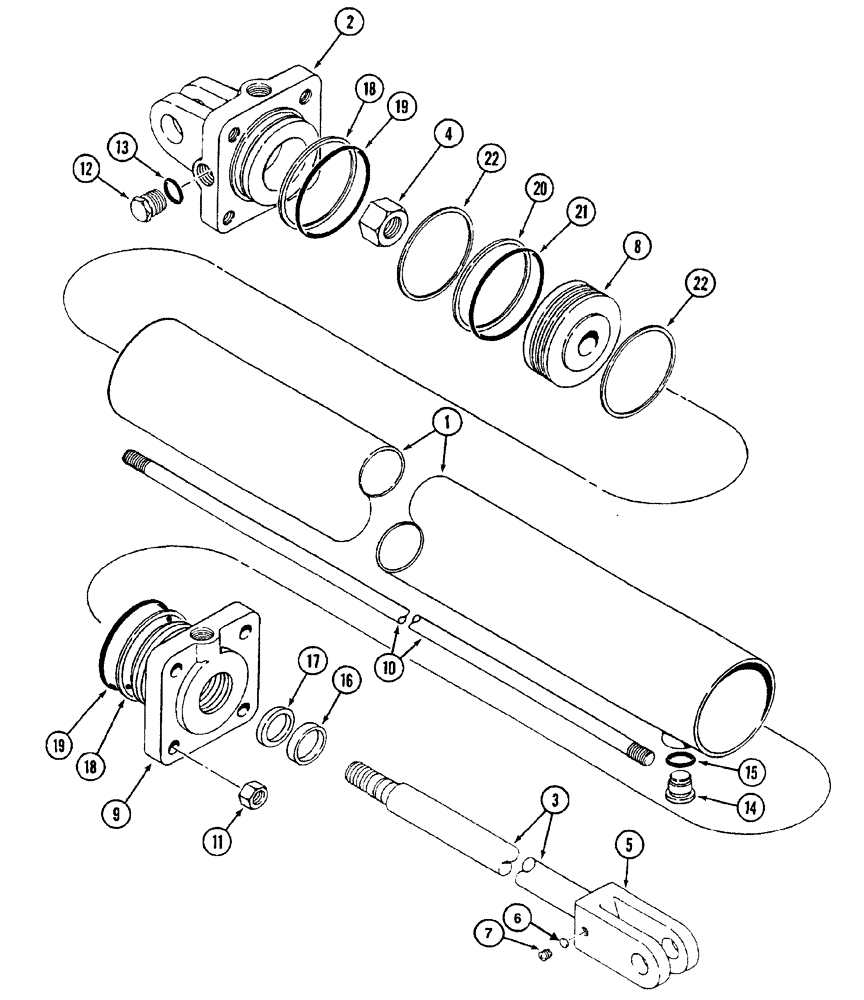

Запчасти Case IH 4400 (08-11) - CYLINDER ASSEMBLY - 386401A1

386401A1

CYLINDER

ASSEMBLY, 4 inch ID x 8 inch stroke - rephasing, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1272919C1

CYLINDER HEAD

rear

1шт.

3

386761A1

PISTON ROD

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

1267057C1

CLEVIS,3/8" - 16

rod end

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert, nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 x 3/8, cup point

1шт.

8

92521C1

PISTON

cylinder

1шт.

9

386762A1

HEAD

front

1шт.

10

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT tie, cylinder

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 80117C2

1шт.

14

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 80117C2

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Seal Kit P/N 80117C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of Seal Kit P/N 80117C2

1шт.

18

NSS

NOT SOLD SEPARAT

RING backup, end cap and head O-ring

2шт.

Part of Seal Kit P/N 80117C2

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING end cap and head

2шт.

Part of Seal Kit P/N 80117C2

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit P/N 80117C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Seal Kit P/N 80117C2

1шт.

22

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Seal Kit P/N 80117C2

1шт.

80117C2

SEAL KIT

SEAL, Includes Ref. 13, 15 - 22

1шт.
