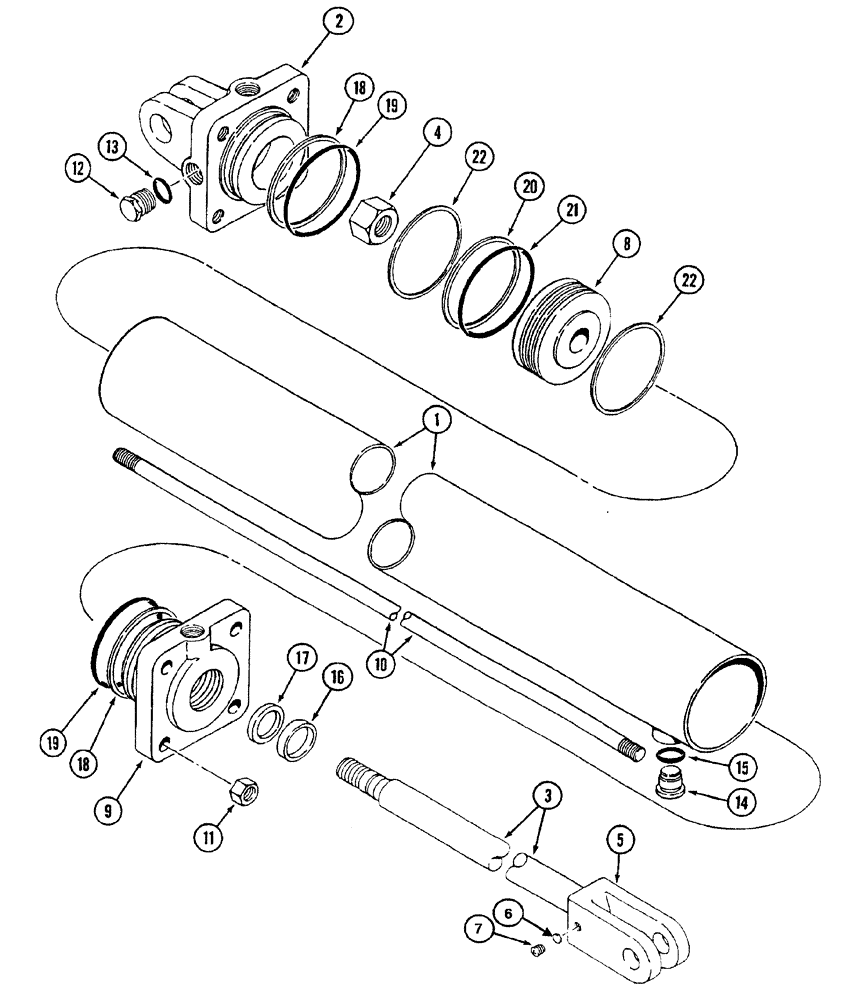

Запчасти Case IH 4400 (08-10) - CYLINDER ASSEMBLY - 386400A1

386400A1

CYLINDER

Assembly 3-3/4 inch ID x 8 inch stroke - Rephasing

1шт.

87423766R

REMAN-HYD CYLINDER

3-3/4 x 8

1шт.

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Tube Cylinder

1шт.

2

1285799C1

HEAD

Cylinder, Rear

1шт.

3

386761A1

PISTON ROD

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

1267057C1

CLEVIS,3/8" - 16

Rod, End

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

Pad Insert, Nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Set, Hex Socket Headless, 3/8 x 3/8, cup point

1шт.

8

92520C1

PISTON

Cylinder

1шт.

9

386760A1

CYLINDER BLOCK

Head Front

1шт.

10

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

Bolt Tie, Cylinder

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

RING, Wiper, Piston Rod

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL, Piston Rod

1шт.

18

NSS

NOT SOLD SEPARAT

RING, Backup, End Cap and Head O-Ring

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING, End Cap and Head

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL, Piston

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING, Piston

1шт.

22

NSS

NOT SOLD SEPARAT

RING, Wear, Piston

2шт.

80115C2

SEAL KIT

KIT, Inc. 13, 15 - 22

1шт.
