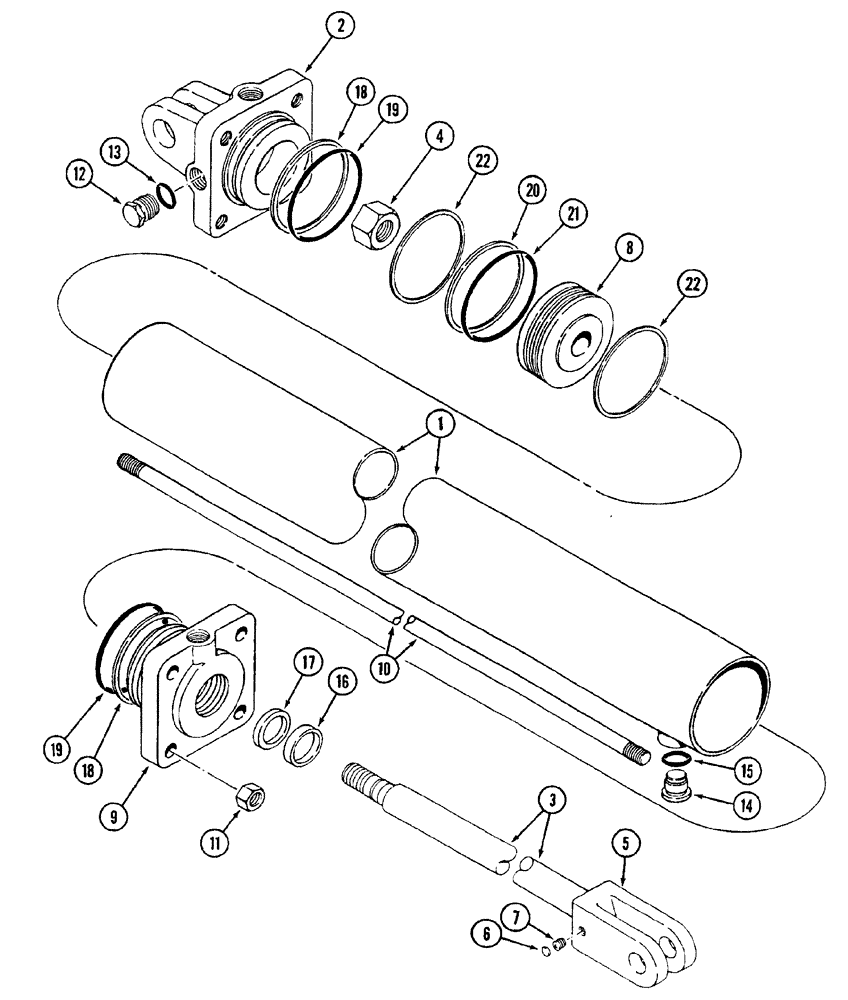

Запчасти Case IH 4400 (08-08) - CYLINDER ASSEMBLY - 386398A1

386398A1

CYLINDER

Assembly 3-1/4 inch ID x 8 inch stroke - Rephasing

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylnder

1шт.

2

1286314C1

HEAD

Cylinder, Rear

1шт.

3

251957A1

ROD

Piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

145233C1

CLEVIS,1/4" - 12

Rod End

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

Pad Insert, Nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Set, Hex Socket Headless, 3/8 x 3/8, cup point

1шт.

8

92519C1

PISTON

Cylinder

1шт.

9

386759A1

CYLINDER BLOCK

Head, Front

1шт.

10

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

TIE ROD Bolt Tie, Cylinder

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

RING, Wiper, Piston Rod

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL, Piston Rod

1шт.

18

NSS

NOT SOLD SEPARAT

RING, Backup, End Cap and Head O-Ring

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING, End Cap and Head

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL, Piston

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING, Piston

1шт.

22

NSS

NOT SOLD SEPARAT

RING, Wear, Piston

2шт.

80116C2

GASKET KIT

Seal, Inc. 13, 15 - 22

1шт.
