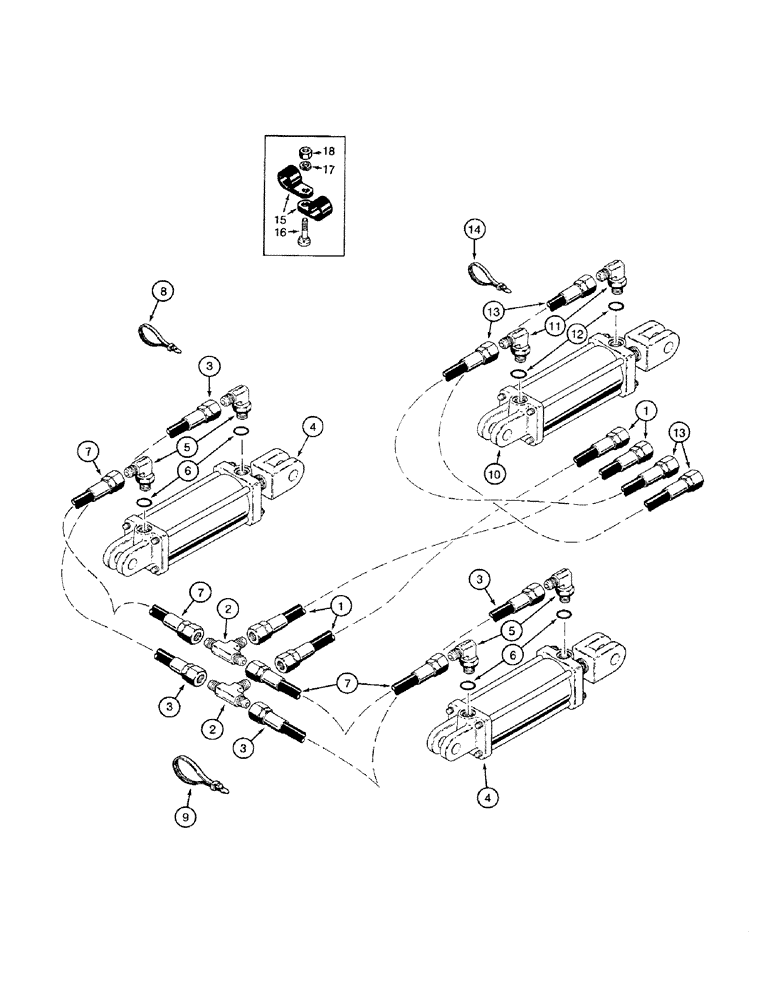

Запчасти Case IH 4200 (08-01) - DEPTH CONTROL HYDRAULIC SYSTEM, 11 FT 10 INCH AND 15 FT 1 INCH MULCH FINISHER (08) - HYDRAULICS

1

1284331C1

HOSE ASSY.

HOSE- 3/8 x 310 inch long, supply and return

2шт.

2

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

3

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

- Cylinder rod end 9.52 mm ID x 1905.00 mm

2шт.

4

1272146C91

CYLINDER

ASSEMBLY - 3 ID x 8 inch stroke, 3/4 inch ports, front hitch, see parts list page 8-13

2шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

1284315C1

HYDRAULIC HOSE

HOSE - 3/8 x 65 inch long, cylinder closed end

2шт.

8

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - hose tie

1шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

10

1272146C91

CYLINDER

ASSEMBLY - 3 ID x 8 inch stroke, 3/4 inch ports, see parts list page 8-13, hydraulic disc gang control

1шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring, Hydraulic disc gang control

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Hydraulic disc gang control

1шт.

13

129765C2

HYDRAULIC HOSE

HOSE - 3/8 x 200 inch long, hydraulic disc gang control

2шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - hose tie, hydraulic disc gang control

1шт.

15

129083R1

CLAMP

- hose, 5/8 inch, hydraulic disc gang control

4шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, hydraulic disc gang control

2шт.

17

492-11038

LOCK WASHER,3/8"

hydraulic disc gang control 3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

Hydraulic disc gang control 3/8"-16, G5

4шт.
