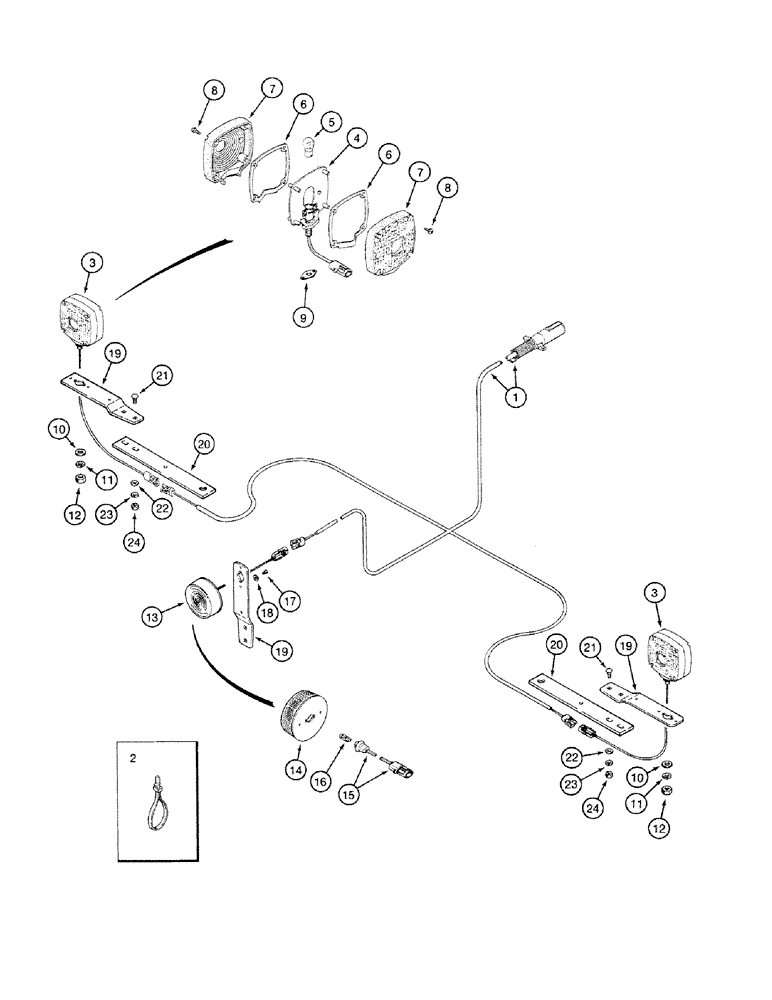

Запчасти Case IH 4200 (04-02) - WIRING HARNESS AND LAMP MOUNTING (04) - ELECTRICAL SYSTEMS

1

1995523C1

HARNESS

- wiring

1шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

12шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - warning/turn signal

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

5

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

6

A43731

GASKET

- sealing, lens

2шт.

A44202

KIT

- lens

1шт.

7

NSS

NOT SOLD SEPARAT

LENS - lamp, amber

2шт.

8

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, round Phillips, No. 8 NC x 5/8 inch

8шт.

9

F63435

GASKET

- lamp base

1шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

13

91986C91

LIGHT

LAMP ASSEMBLY - tail

1шт.

14

NSS

NOT SOLD SEPARAT

BASE - lamp

1шт.

15

91934C1

SOCKET

ASSEMBLY - bulb

1шт.

16

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

1шт.

17

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan head,cross recessed 3/4 inch

2шт.

19

1978653C1

SUPPORT

BRACKET - lamp mounting

3шт.

20

1547072C1

BRACKET

SUPPORT - mounting bracket

2шт.

21

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

4шт.

22

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

425-105

NUT,5/16"-18, G5

4шт.

18

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.
