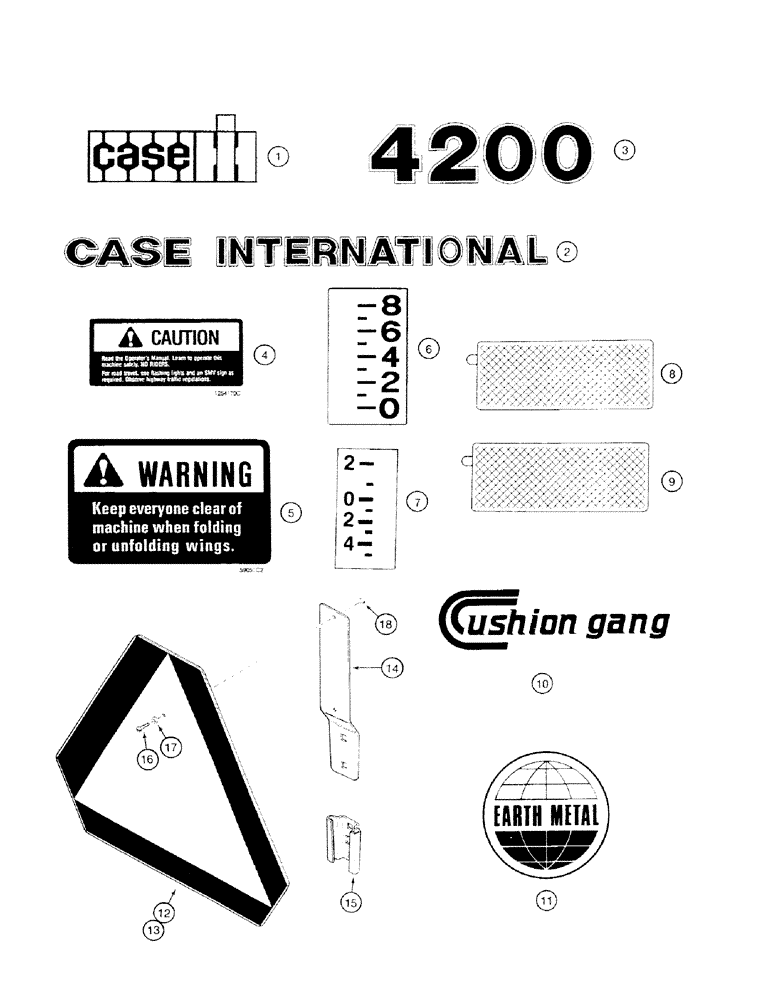

Запчасти Case IH 4200 (09-29) - DECALS AND SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

1

192849A1

DECAL

- CaseIH trademark, 8-1/4 inch long (Replaces 91401C1)

2шт.

NOTE - 192849A1 IS THE NEW CASE LOGO VERSION OF THIS DECAL.by bb 6/11/96

1шт.

2

1973426C1

DECAL

- Case International

1шт.

3

1995749C1

DECAL

- 4200, on rear cross bar

1шт.

4

1254170C1

DECAL

- CAUTION, Read the Operator's Manual

1шт.

5

59051C2

PRODUCT GRAPHIC

DECAL - WARNING, Keep everyone clear of machine, if used

2шт.

6

91372C1

DECAL

- depth gauge, rear

1шт.

7

1547335C2

DECAL

- disc gang depth, front

1шт.

8

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

9

1284365C2

REFLECTOR

- amber

1шт.

10

1263622C1

DECAL

- Cushion gang

1шт.

11

147782C1

DECAL

- Earth Metal

1шт.

407220R1

PRODUCT GRAPHIC

EMBLEM ASSEMBLY - SMV, steel

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem

1шт.

13

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL - slow moving vehicle emblem

1шт.

14

NSS

NOT SOLD SEPARAT

BRACKET - SMV emblem mounting, long

1шт.

15

398976R1

BRACKET

- SMV emblem mounting, welded to rear cross bar

1шт.

16

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 x 1/2 inch

2шт.

17

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

- flat, 13/64 x 1/2 x 1/16 inch

2шт.

18

225-14110

NUT,#10-24

2шт.
